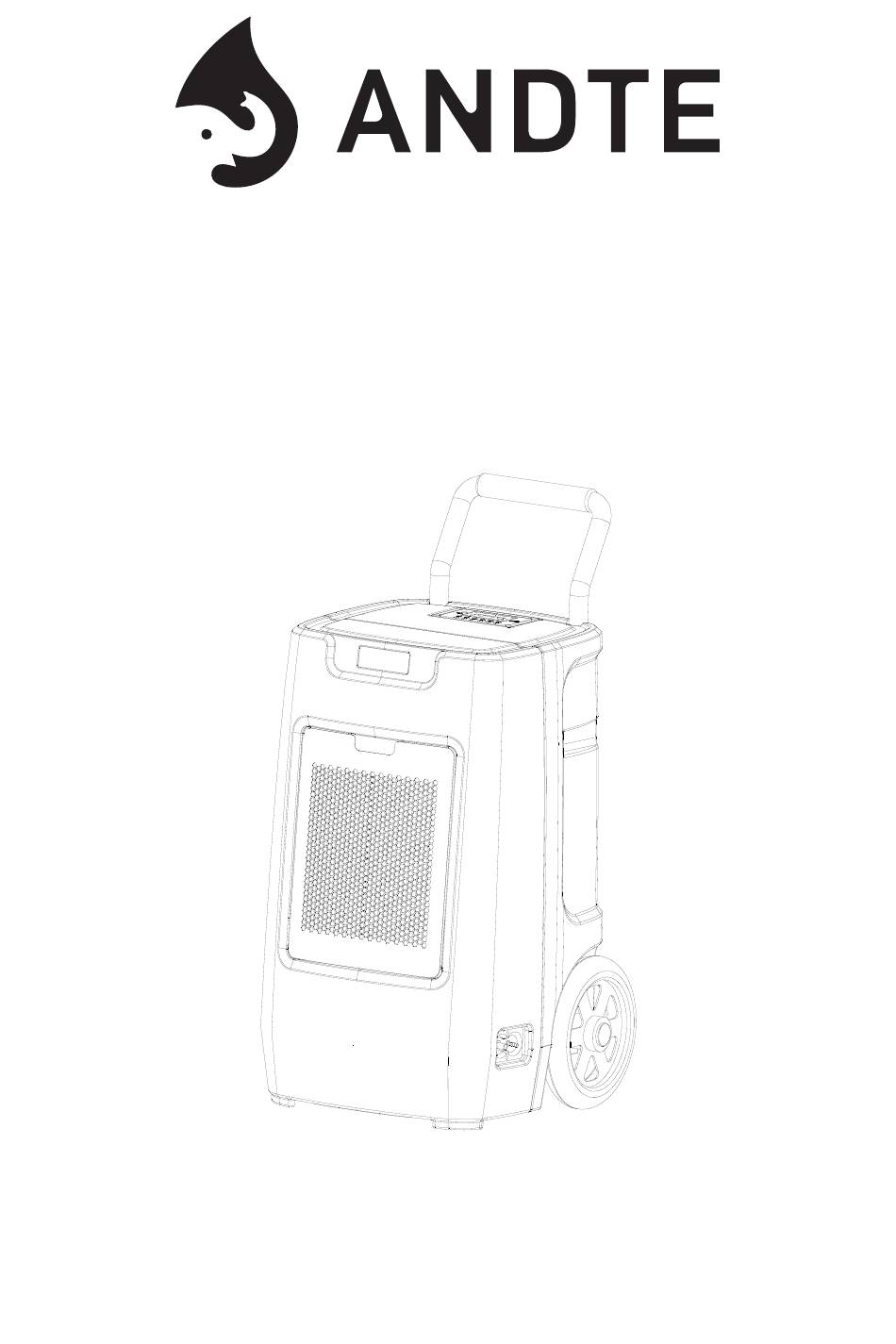

- Page 1 Commercial Dehumidifier User Manual Model No.: DS190P Please read this User Manual before operating and save for future reference.
- Page 3 From breathing easier in your office to upgrading your kitchen appliances, we hope ANDTE could help you every step of the way. READ THIS MANUAL INSTRUCTION CAREFULLY BEFORE USING THE UNIT.
-
Page 4: Table Of Contents
CONTENTS Safety Information ............................Introduction Important Safety Tips .......................... Parts Identification Operation Instruction ............Maintenance ................ Trouble shooting guide ............Safety Precautions .............. Parts List & Schematic diagram of flange installation ..Warranty and Service ............ -
Page 5: Safety Information
Safety Information ● Install the dehumidifier on flat surface to minimize vibration and/or noise. ● Inspect the power cord before use. Never operate the dehumidifier when the power cord or plug is damaged. ● Insert the three-prong plug on the power cord into a matching electrically grounded outlet (120V/ 60 Hz, 15A at least). -
Page 6: Introduction
Before using this product, please read the user manual carefully to ensure that this product functions at its best. The ANDTE's dehumidifier adopt an upgraded design, compact structure, easy to operate, and other characteristics, widely used in scientific research, basement, crawl space, greenery, laboratory, gymnasium, sanitation, commodity storage, underground engineering, and dehumidification in high humidity places such as kitchens, bathrooms, archives, warehouses, etc. -
Page 7: Important Safety Tips
Important Safety Tips Before using the product, for safe and correct operation and maintenance, please read and understand the following safety tips. 1. When cleaning or storing the dehumidifier, please pull out the plug first, cut off the power supply, and ensure safety. 2.Don't immerse the machine in water or close to water sources. -
Page 8: Parts Identification
Parts Identification 1. Handle Bar 2. Control Panel 3. Wheels 4.Air Inlet 5.Gravity Drainage Outlet 6. Pump outlet NOTE:There May be slight differences in the model, the actual machine shall prevail. -04-... - Page 9 1. Air Outlet 2. Cord Winder 3. Power Cord Port 4. Pump access port -05-...
-
Page 10: Operation Instruction
Operation Instruction Operation panel Display screen Defrost Indicator Timer Indicator Pump Working Running Indicator Indicato Pump Down Timer Power Buttons Definition Button Function POWER Button Press to turn the dehumidifier ON or OFF. UP Button Press to increase the set-point of humidity level or timer. DOWN Button Press to decrease the set-point of humidity level or timer. - Page 11 Operation panel (1) Target Humidity Value Setting ① Check the room humidity (After powering on, the digital number on the control panel is the room humidity readout.); ② Press UP or DOWN button once, the digital number will turn to be the previous setting value and blink;...
- Page 12 To Set Timer: * Timed startup: When the set timing time is reached, the dehumidifier automatically starts, and the time range can be set to be 0-24 hours. * Timed shutdown: When the set timing time is reached, the dehumidifier automatically shuts down, and the time range can be set to be 0-24 hours.
- Page 13 2.Position Your Dehumidifier ●For optimal outcomes, use your dehumidifier in a confined space. ●Shut all entryways and windows. ●Position it clear of obstructions and avoid anything that could obstruct airflow in or out of the dehumidifier. Note: Place the dehumidifier on a flat surface to minimize vibration or noise. 3.
-
Page 14: Maintenance
Maintenance Ensure the dehumidifier is turned OFF and the plug is removed from ！ the power socket before cleaning or maintenance is carried out. 1. Cleaning the Dehumidifier Clean the dehumidifier housing with a soft damp cloth. Do not submerge or place water on the dehumidifier or control panel. - Page 15 3. Dehumidifier Storage & Transportation 1) Press and hold the PUMP button for 3-5 seconds to empty the water in the pump reservoir before transportation or storage. 2) Transport and store the dehumidifier upright. -11-...
-
Page 16: Trouble Shooting Guide
1. When the above fault cannot be eliminated and it is confirmed that repair is required, please contact the ANDTE support, please do not disassemble the machine for repair without authorization. 2. When the dehumidifier is running or stopped, it is normal to hear the sound of refrigerant circulating. -
Page 17: Safety Precautions
Safety Precautions 1. When using, do not place the 2. Do not use thin rods or hard 3. When using, please keep the dehumidifier on soft, uneven objects to insert into the fuselage dehumidifier away from heat to avoid malfunction or danger. sources such as heaters and ground to avoid vibration or movement. -
Page 18: Parts List & Schematic Diagram Of Flange Installation
Parts List & Schematic diagram of flange installation Gravity Drain hose 1PCS Pump Drain hose 1PCS Round Pipe handle 1PCS Rubber head screws with 4PCS plum blossoms -14-... -
Page 19: Warranty And Service
Warranty and Service If you have an issue with an ANDTE product, please contact us at AndteServices@outlook.com, and we will do our best to resolve it for you. Support Hours 24 Hours available *Please have your order number before contacting customer support.
