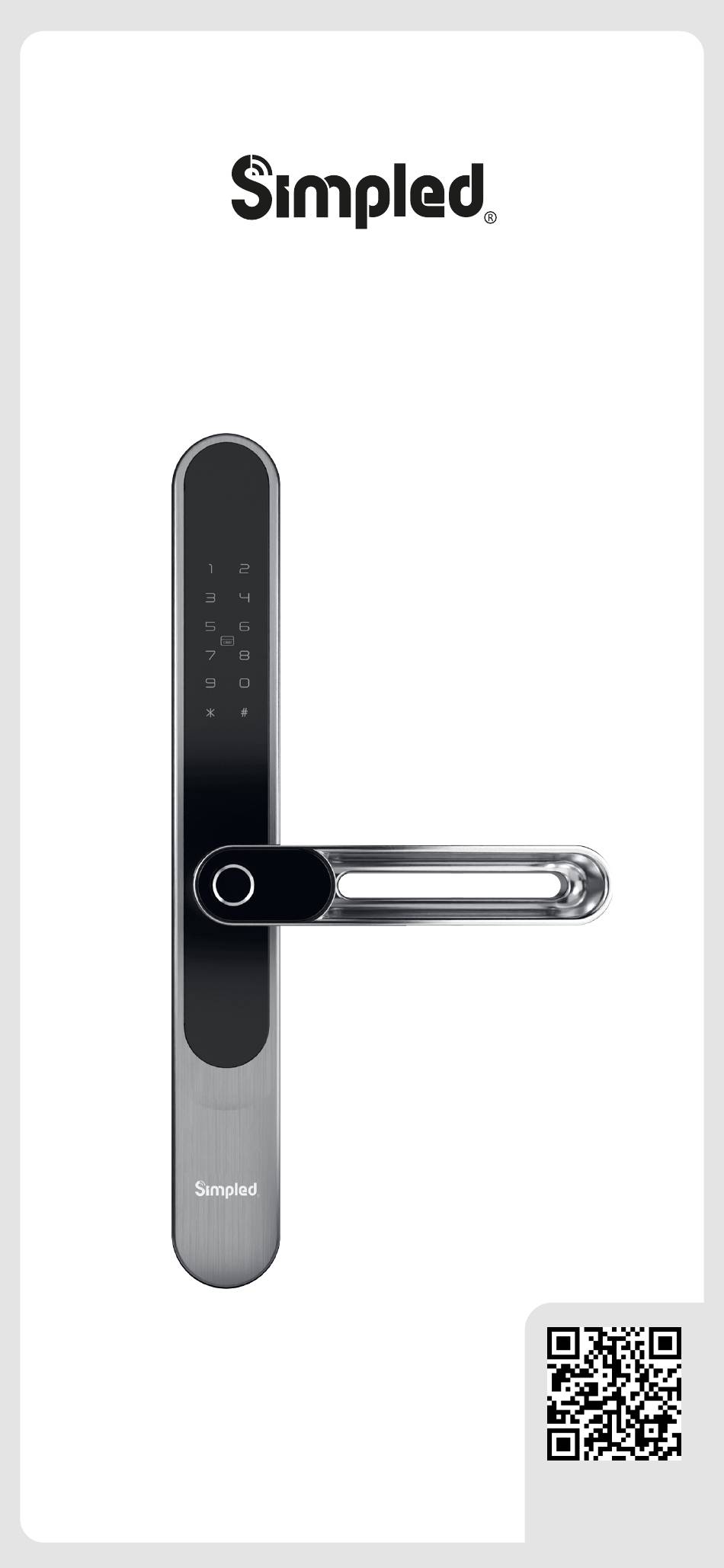

- Page 1 Simplified, for peace of mind! User Manual : SS-SP Security is just a touch away Scan for more help!
- Page 2 Simpled is a London-based tech company rolling out innovative IoT devices to enhance the smart home experience. Control your home with a range of smart security devices from Simpled. Whether it’s a Smart Door Lock, a Camera Doorbell. Simpled put you in control of your home security.
-
Page 3: Table Of Contents
Thank you for choosing the Simpled Slim Door Lock. Please read this manual completely before using the Simpled Slim Door Lock. Simpled may change the functionality and design of the products without prior notice with the purpose of improving performance and quality! -
Page 4: Product Overview
Overview Installation Operation Contact Us Product Overview Inside Outside Inside Outside 42 mm Back Panel Front Panel 148 mm 155 mm 26 mm Lock Cylinder Inside Outside Inside Outside 2. Card / Tag reader 3. Keypad 5. Safety Button 1. Fingerprint 4. -
Page 5: What's Included
Overview Installation Operation Contact Us What’s Included? 2x Sliding Screws 4x Mortice Screws 10x 5mm (for Aluminum Door) 4x Mortice Screws 25x 4mm (for Wooden Door) 1x spindle 60mm 1x spindle 65mm 1x spindle 70mm 1x spindle 75mm 1x spindle 80mm 1x spindle 85mm 1x spindle 90mm 1x spindle 95mm... - Page 6 Overview Installation Operation Contact Us What’s Included? 1x Phone Tag (Sticker) Contactless Key 2x Proxy Fobs Contactless Keys 2x Emergency Keys 4x Alkaline Batteries 1.5v 2x Rubber Gasket .: 3 :.
-
Page 7: Specification
Overview Installation Operation Contact Us Specification Aluminium Door Doors Model SS-SP Applicable Wooden & UPVC Door Handle: ADC12 Working 6V/4 x AA Batteries Materials Panel: SS304 Voltage 40-80 mm Door 2.2 Kg Weight (For more, you need Thickness Longer spindle and Screws) -
Page 8: Remove The Old Handle
If you have a separate euro lock cylinder present, you no longer need that existing cylinder, Do not close Door as the Simpled lock replaces it. until installation Removing the cylinder leaves is complete. room for the bottom fixing point of the lock. -
Page 9: Installation
Overview Installation Operation Contact Us Installation Change the Handle direction: Outside handle: Change the Outside handle direction by rotating it. Internal handle: 1. Remove the Screw 2. Rotate the handle 3. Tighten the behind the handle 180 degrees. Screw back. .: 6 :. -
Page 10: Step 1 Install Mortice
Step 1 Install Mortice (Sold separately - Not necessarily needed) If you your existing multipoint lock is compatible with the Simpled Smart lock, skip this step. Otherwise, check if the latch direction is correct for your door. should you need to change the latch direction, follow the steps in the left picture. -
Page 11: Step 3 Fix The Sliding Screw Stub On The Front Panel
Overview Installation Operation Contact Us Installation Step 3 Fix the Sliding Stub on the front panel 1. Fit the rubber gasket onto each panel 2. Attach the flat head sliding screws to the stubs and secure them in the top and lower positions to align with the door holes. -
Page 12: Step 5 Install Back Panel
Overview Installation Operation Contact Us Installation Step 5 Install Back Panel Interior plate Spindle Alignment tool Use the Spindle Alignment Tool to centre the spindle in the interior plate holes. Inner Handle: 1. Fit the Rubber Gasket to the inner panel. 2. -
Page 13: Step 6 Install The Batteries
This time the latch/hooks should retract. Note: AUTOLOCK FEATURE Your Simpled Smart Lock comes with auto-lock, a convenience and security feature which automatically relocks the smart lock a pre-determined number of seconds after you unlock it. The default factory setting for the auto-lock delay is five seconds, but you can change that delay to any length of time you... -
Page 14: Operation
Overview Installation Operation Contact Us Operation Setting up the Smart App 1. Download the “TTlock App” from the App Store or Google Play by either - Scanning the QR code - Searching the “TTLock” app 2. Sign up for a TTlock account, and add the smart lock to the device list You can register an account by your email address or mobile number that is available in 200 countries around... -
Page 15: Unlock With The App
Unlock with the app Try to open the lock by tapping on the “Lock Icon”. Please ensure there is no problem with Bluetooth communication, and the phone is within the 5-metre range of the Simpled Slim Smart Lock. .: 12 :. -
Page 16: Add Fingerprints
Overview Installation Operation Contact Us Add Fingerprints To add a new fingerprint: Choose whether you want to create limited-time or permanent access. 1. Select Fingerprint from the lock screen in the app 2. Tap on the three dots 3. Select Add Fingerprint 4. -
Page 17: Add Passcodes
Installation Operation Contact Us Add Passcodes (PIN codes) You can create different passcodes types to open the Simpled slim lock: permanent, time-limited, OTP(one-time passcode), cycle or custom. You can easily share the passcode with other users via SMS, Email, WhatsApp. -
Page 18: Create And Send Ekeys
Overview Installation Operation Contact Us Create and Send eKeys By selecting the “Send eKey” as shown in the figure, you can create and share an electronic key with your friends, family, maid, dog walker or your AirBnB guests. Create and Send eKeys By selecting the “Send eKey”... -
Page 19: Programme Card, Proximity Fobs, Phone Tag Stickers
Overview Installation Operation Contact Us Programme Card, Proximity Fobs, Phone Tag Stickers: Before a proxy fob or sticker can open the lock, it needs to be programmed first. Fobs/Stickers can also be Permanent or Limited by time. Unlocking Records Tap on “records”. In this part, you can review all the unlock records .: 16 :. -
Page 20: Pair Wireless Key Fob
Overview Installation Operation Contact Us Pair Wireless Key Fob (Bluetooth Remote Controller) 1. Tap on "Wireless Key Fob". 2. Add Key Fob 3. Use Permanent/Timed/Recurring Tab. 4. Long Press the Locking Key on the Remote controller for 5 seconds. 5. Tap "Next" when the light flashes quickly. .: 17 :. -
Page 21: Passage Mode
# to lock the door. Import data from an old Simpled lock. To transfer data from an old Simpled lock to a new one you can follow these steps: 1. Choose the new lock on the app. -
Page 22: How To Turn Off/On The Lock Sound
Overview Installation Operation Contact Us How to turn off/on the lock sound? 1. Open the app. 2. Tap on the lock. 3. Choose “Settings”. 4. Disable/Enable the Lock sound. Transfer lock to a new owner 1. Open the app 2. Tap on the ( Top Left) 3. -
Page 23: Pair Wifi Bridge With The Lock
Contact Us WiFi Bridge Pairing The Simpled Smart WiFi Bridge (or Gateway) is a connection between Simpled Smart locks and your WiFi router, and through that to the whole internet. With the bridge you can: • Open your lock from anywhere •... -
Page 24: Pair Wifi Bridge With The App
Overview Installation Operation Contact Us Pair the Bridge (Gateway) with APP Notice: If it times-out, please turn off and on, and try it again. After pairing the WiFi Bridge, please turn on "Remote Unlock" on the TTlock settings. Scan for more .: 21 :. -
Page 25: Faq
UPVC doors. So in 95% of the cases, the answer is yes. There is no need to replace your current mortise. Get in touch if you need more information. Support@simpled.tech 2. I just installed the door, and although the locks verified my access, nothing happens when turning the handle from outside. -
Page 26: Want More Accessories? Here Is All You Want
Overview Installation Operation Contact Us Want more Accessories? Here is all you want: Bluetooth Proxy Fobs Remote Controller (Contactless Key) Phone Tags Another Smart lock (Contactless Key) for other doors Do you need another Smart Lock for other doors? WiFi Bridge Smart lock for a friend or family Covering Plates... - Page 27 Note:...
-
Page 28: Contact Us
Share ..your experience by writing a review on Amazon Connect with us on simpled.tech Facebook, Twitter and instagram Our friendly customer service team will work hard to put a smile back on your face. Here’s how we can connect: support@simpled.tech...
