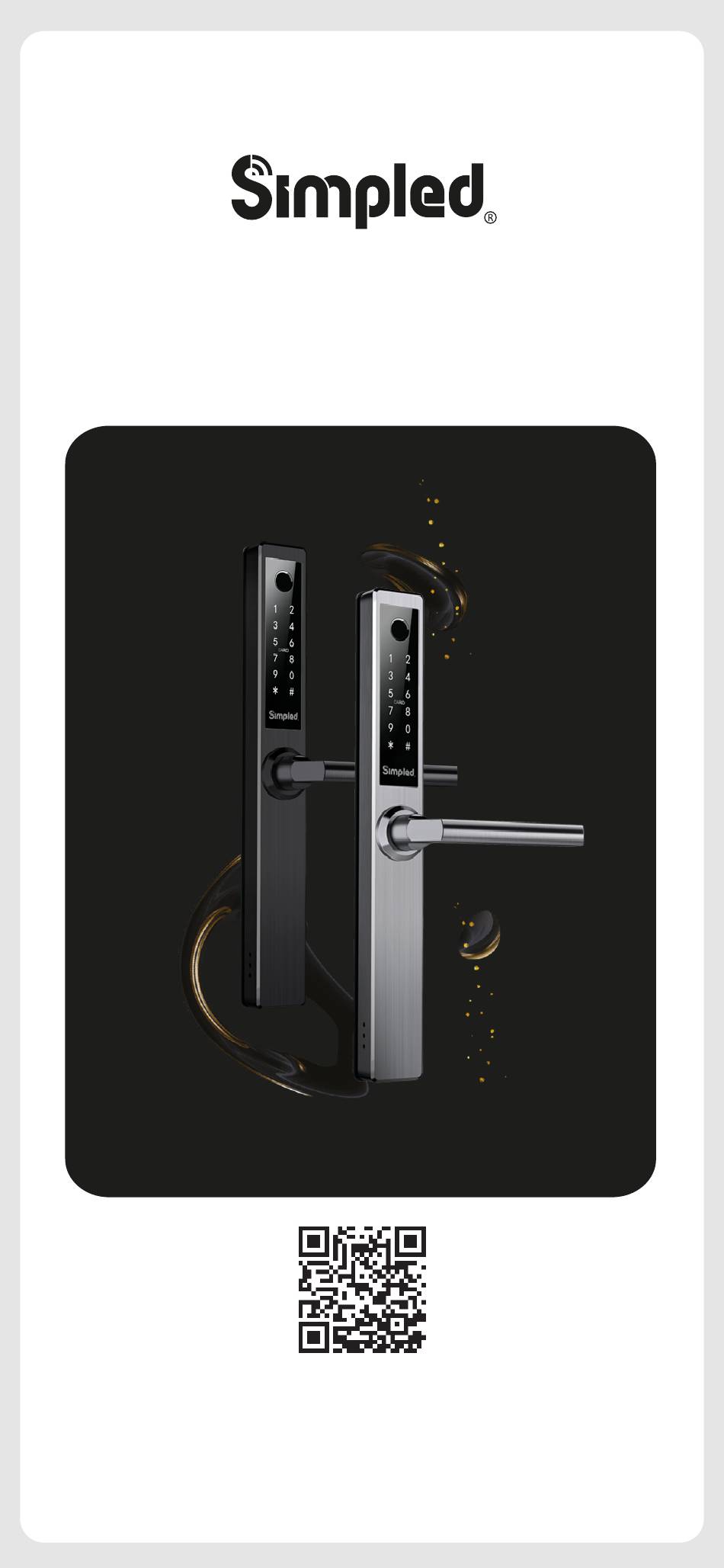

- Page 1 Simplified, for peace of mind! User Manual : HF-SP Scan for more help! Security is just a touch away...
- Page 2 Simpled is a London-based tech company rolling out innovative IoT devices to elevate the smart home experience. Control your home with a range of smart security devices from Simpled. Whether it’s a Smart Door Lock, a Camera Doorbell, Simpled put you in control of your home security.
-
Page 3: Table Of Contents
Thank you for choosing the Simpled Slim Door Lock. Please read this manual completely before using the Simpled Slim Door Lock. Table of Contents: Product Overview What’s Included Specification Factory reset Installation Remove the old Handle Change the Handle direction... -
Page 4: Product Overview
Overview Installation Operation Contact Us Product Overview Inside Outside Inside Outside 39 mm Back Panel Front Panel 127 mm 49 mm 23 mm Lock Cylinder Inside Outside Inside Outside 1. Fingerprint Scanner 2. Card / Tag reader 5. Battery Cover 3. -
Page 5: What's Included
Overview Installation Operation Contact Us What’s Included? 1x Spindle 80 mm 1x Spindle 60 mm 1x Spilit pin 1x suction cup 2x Screw Stubs: 30x8 2x Sliding Screws 4x Mortise Screws 10x5 mm (for Aluminum Door) 4x Mortise Screws 25x4 mm (for Wooden Door) 1x M5x25 mm Screw 1x M5x30 mm Screw... - Page 6 Overview Installation Operation Contact Us What’s Included? 1x Phone Tag (Sticker) Contactless Key 2x Proxy Fobs Contactless Keys 2x Emergency Key 4x Lithium Battery 1.5v 2x Rubber Gasket .: 3 :.
-
Page 7: Specification
Overview Installation Operation Contact Us Specification Doors Aluminium Door Model HF-SP Applicable Wooden Door Working Handle: SS304 Materials 6V/4 x AA Batteries Voltage Panel: SS304 35-65 mm Door 2.7 KG Weight (For more, you need Thickness Longer spindle and Screws) -
Page 8: Remove The Old Handle
You can keep the old mortise if it’s compatible with the Simpled Smart Lock. Most Multipoint locks are compatible! * NOT compatible with multipoints that have offset spindles. -
Page 9: Change The Handle Direction
1. Loosen the screw on the Handle 2. Release the Screw 3. Rotate the handle 180 degrees (Counterclockwise) and tighten back up. Simpled may change the functionality and design of the products without prior notice with the purpose of improving performance and quality! .: 6 :. -
Page 10: Compatibility Test
Overview Installation Operation Contact Us Notice: Please try this compatibility test before drilling a new hole into your door. Compatibility Test One test to see if the new lock is compatible with your existing multipoint locks is to check if it can fully retract the hooks and bolts on your multipoint mechanism. - Page 11 Overview Installation Operation Contact Us Compatibility Test Step 4: From the outside: 1. Locate the front body on the spindle. 2. Align the lock with the door and hold it firmly. 3. Push the handle fully downward to retract the bolts. Tip: You can now return the spindle receptor so that it POINTS TOWARDS the handle.
-
Page 12: Step 1 Install Mortise
Push upward in the Mortise and press it tightly 180° If you your existing multipoint lock is compatible with the Simpled Smart lock, skip this step. Otherwise, check if the latch Step3: Rotate the Latch direction is proper for your door. -
Page 13: Step 5 Install Back Panel
Then insert the keys and turn. Try lifting the handle and then pull down. This time the latch/hooks should retract. Note: Simpled Smart Lock comes with an auto-lock feature. It means the spindle doesn't engage from the outside when pushing the handle downward unless you gain access with a fingerprint, passcode, etc. -
Page 14: Operation
Overview Installation Operation Contact Us Operation Setting up the Smart App 1. Download the “TTlock App” from the App Store or Google Play by either - Scanning the QR code - Searching the “TTLock” app 2. Sign up for a TTlock account, and add the smart lock to the device list You can register an account by your email address or mobile number that is available in 200 countries around... -
Page 15: Bluetooth Unlock
Notice: Generally, the passcode for a lock that has not yet been added is 123456 Bluetooth Unlock Try to open the lock by tapping on the “Lock Icon”. Please ensure there is no problem with Bluetooth communication, and the phone is within the 5-meter range of the Simpled Slim Smart Lock. .: 12 :. -
Page 16: Add Fingerprints
Overview Installation Operation Contact Us Add Fingerprints For adding a new fingerprint, 1. Select Fingerprint from the lock screen in the app 2. Tap on the three dots 3. Select Add Fingerprint 4. Choose a name for later reference “ It helps you to recognise the fingerprint in the unlocking reports”. -
Page 17: Add Passcodes
Installation Operation Contact Us Add Passcodes You can create different passcodes types to open the Simpled slim lock: permanent, time-limited, OTP(one-time passcode), cycle or custom. You can easily share the passcode with other users via SMS, Email, WhatsApp. You can create, limit, share and delete a passcode without a bridge using the app when you are near the lock. -
Page 18: Create And Send E-Keys
Overview Installation Operation Contact Us Create and Send e-Keys By selecting the “Send eKey” as shown in the figure, you can create and share an electronic key with your friends, family, maid, dog walker or your AirBnB guests. For using the eKey, they need to download and sign up for a new account. -
Page 19: Programme Card, Proximity Fobs, Phone Tag Stickers
Overview Installation Operation Contact Us Programme Card, Proximity Fobs, Phone Tag Stickers: Before a proxy fob or sticker can open the lock, it is required to be programmed first. Fobs/Stickers can also be Permanent or Limited by time. Unlocking Records Tap on “records”. -
Page 20: Pair Wireless Key Fob
Overview Installation Operation Contact Us Pair Wireless Key Fob (Bluetooth Remote Controller) 1. Tap on "Wireless Key Fob". 2. Add Key Fob 3. Use Permanent/Timed/Recurring Tab. 4. Long Press the Locking Key on the Remote controller for 5 seconds. 5. Tap "Next" when the light flashes quickly. .: 17 :. -
Page 21: Activate Passage Mode
When passage mode is activated, you can long-press # to force-lock the Simpled lock! It’s the same when the auto-lock feature is off; you can long-press # to lock the door. Import data from an old Simpled lock. -
Page 22: Pairing Wifi Bridge
Operation Contact Us WiFi Bridge Pairing The Simpled Smart WiFi Bridge is a bridge between Simpled Smart locks and WiFi. With the Gateway, you can • open your lock from anywhere • remotely read the lock operation records, including, fingerprint, passcodes •... -
Page 23: Pair The Gateway With App
Overview Installation Operation Contact Us Pair the Gateway with APP After pairing the WiFi Notice: If times out, Bridge, please turn on please turn off and on, "Remote Unlock" and try it again. on the TTlock settings. Scan for more comprehensive TTlock app manual. -
Page 24: Faq
These are typically found on UPVC doors. So in 95% of the cases, the answer is yes. There is no need to replace your current mortise. Get in touch if you need more information. Support@simpled.tech 2. I just installed the door, and although the locks verified my access, nothing happens when turning the handle from outside. -
Page 25: Want More Accessories? Here Is All You Want
Overview Installation Operation Contact Us Want more Accessories? Here is all you want: More accessories? SCAN HERE Proxy Fobs (Contactless Key) Phone Tags (Contactless Key) Bluetooth Remote Controller Another Smart lock for other doors WiFi Bridge Smart lock for Alkaline Batteries Covering Plates a friend or family .: 22 :. -
Page 26: Note
Overview Installation Operation Contact Us Note: .: 23 :. -
Page 27: Contact Us
Share ..your experience by writing a review on Amazon Connect with us on simpled.tech Easy Amazon Review Scan me! Facebook, Twitter and instagram Our friendly customer service team will work hard to put a smile back on your face.
