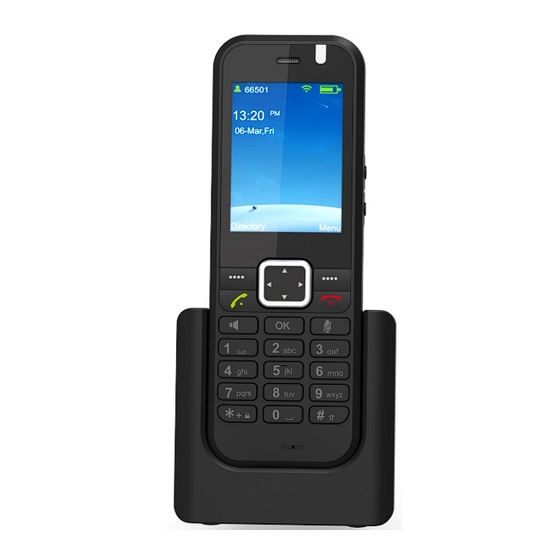

Vogtec T2 Quick Start Manual

Wifi sip cordless
Hide thumbs Also See for T2:

Advertisement

Quick Links

Download this manual
WIFI SIP CORDLESS
T2
Quick Start Guide
Copyright ©VOGTEC TECHNOLOGY COLTD

Advertisement

loading
Need help?

Need help?

Do you have a question about the T2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vogtec T2

Summary of Contents for Vogtec T2

  • Page 1 WIFI SIP CORDLESS Quick Start Guide Copyright ©VOGTEC TECHNOLOGY COLTD...
  • Page 2 WIFI SIP Cordless Handset T2 Copyright ©VOGTEC TECHNOLOGY COLTD...
  • Page 3 WIFI SIP Cordless Handset T2 Hardware Introduction T2 The main components of the phone hardware include a LCD screen and a keyboard, As shown in the following figure: The main components of the phone hardware are described as follows: Name...
  • Page 4 WIFI SIP Cordless Handset T2 The red light flashes slowly Show calls, messages, shortcuts, time, date, and other related information: Call information—Caller ID, name, and  call duration Screen Icon  Prompt messages - missed calls, transfer  calls, unread messages, no-interference, etc.
  • Page 5 WIFI SIP Cordless Handset T2 Icon introduction 图标 说明 Wifi connected successfully Not connected Bluetooth headset connected Bluetooth mode Battery percentage Battery power level Charging Headphones connected Hands-free state Mute status Do not disturb Unread SMS Successful registration or connected...
  • Page 6 WIFI SIP Cordless Handset T2 Indicator introduction Indicator Status Instruction When the phone is charging and the Red light on battery is low Phone has unread messages Phone has missed call Red slow flash Phone has forward call Standby battery is low power level...
  • Page 7 WIFI SIP Cordless Handset T2 Getting start Package list T2 phone package inludes below: Product installation This section will introduce how to install the phone： Battery Installation  Connect to power supply  Phone placement  Connect to power supply pic1 Connect to power supply Copyright ©VOGTEC TECHNOLOGY CO.
  • Page 8 Configuration Guide Two ways to configure T2 phone. Configure via phone interface  Configure via web page interface  Configure via phone interface T2 standby interface is as below once power on: Copyright ©VOGTEC TECHNOLOGY CO. LTD.
  • Page 9 WIFI SIP Cordless Handset T2 pic2 Home Screen After the phone entering the standby interface, manually press the right soft key to enter the main menu interface, As shown in the following figure: pic3 Main menu interface This main menu interface provides users with extrances to enter into other functional interfaces like: functional settings, WLAN, Bluetooth, directory, history, SMS, customized settings, Advanced, and related function interfaces.
  • Page 10 WIFI SIP Cordless Handset T2 Advance Setting The Advanced provide users with interfaces such as account information, virtual private network, online update, log settings, network analysis, and factory restoration. Advanced interface is as follows: pic4 Advanced setting Note: To enter Advanced, you need to enter the initial password of the configuration. The default password: 123.
  • Page 11 WIFI SIP Cordless Handset T2 Account Input method: Left and right navigation keys or switch the corresponding left soft key (default: SIP1). Parameter description: Switching Accounts. Note: After the user settings are completed, you must manually press the "OK" key to submit to save, otherwise it will not take effect.
  • Page 12 WIFI SIP Cordless Handset T2 pic7 User Base Setting Command Function: User Basic Settings  Required parameters:  Domain name Input method: manual key input, format - string, English numeric special characters would be ok. Parameter Description: Register server address.
  • Page 13 WIFI SIP Cordless Handset T2 Registration Input method: Select the corresponding left soft key. Parameter Description: Start the phone SIP user registration function. Note: After the user settings are completed, you must manually press the "OK" key to submit to save, otherwise it will not take effect.
  • Page 14 WIFI SIP Cordless Handset T2 Manually press the keys under the standby interface: Menu - > Advanced - > Virtual Private Network Settings, Check the VPN setting switch and set the VPN type to other types except OpenVPN, As shown in the following figure:...
  • Page 15 WIFI SIP Cordless Handset T2 Restore the factory Manually press the button under the standby interface: menu -> advanced Settings -> to restore factory Settings, as shown in the following figure: pic9 factory data reset Command function: factory data reset ...
  • Page 16 WIFI SIP Cordless Handset T2 Other Phone Input mode: manual key input, format - string English numeric or special characters. Parameter description: additional calls to the contact person. Associated account Input mode: left-right navigation key or the corresponding left soft key.
  • Page 17 WIFI SIP Cordless Handset T2 Function setting Feature set provides users to set a variety of interface of the business, including the forwarding business (unconditional transfer, busy before the turn, nobody reply before), call waiting, don't disturb, Automatic answer, anonymous call and automatic redial.
  • Page 18 WIFI SIP Cordless Handset T2 set the interface function, by using the navigation keys to scroll down to the busy tone forward Settings.As shown in the following figure: Busy pic12 Command function: busy tone transfer settings  Required parameters: ...
  • Page 19 WIFI SIP Cordless Handset T2 No answer divert setting pic13 Command function: No answer transfer settings  Required parameters:  No answer transfer Input mode: select the corresponding left soft key. Parameter description: start No answer transfer function. Number transfer Input mode: input by hand, format - string, English, numbers, special characters can be used.
  • Page 20 WIFI SIP Cordless Handset T2 Do not disturb After the user enters the standby interface, manually operate key: menu - > funtion set, the terminal will switch to the function setting interface, Rolling screen to do not disturb settings by using the downward navigation key. As shown in the following figure:...
  • Page 21 WIFI SIP Cordless Handset T2 WLAN Search and connect After the user enters the standby interface, manually operate key: menu - >WLAN set, the terminal will switch to WLAN interface. As shown in the following figure: WLAN interface pic16 User can refresh and search available WiFi hotspot by pressing "OK" key.
  • Page 22 WIFI SIP Cordless Handset T2 Select connected Network pic18 Select corresponding left soft key, enter WiFi settings page. Select forget network by down navigation keys. Forget network operation can be completed by pressing corresponding left soft key. As shown in the following figure:...
  • Page 23 WIFI SIP Cordless Handset T2 Start the bluetooth pic21 Search After the bluetooth function is activated, the terminal will automatically search for the available bluetooth devices around, and the user can also press the [OK] key to search the surrounding bluetooth devices again.As shown in the following figure:...
  • Page 24 WIFI SIP Cordless Handset T2 Basic setting Click Account->SIP->General Settings, enter the basic setting page. As shown in the following figure: Ringtone Setting Click Phone->Preference->Ringtone Setting, enters ringtone setting page, As shown in the following figure: Ringtone setting pic23 Ringtone Setting Click Phone->Preference->Ringtone Setting, and enter ringtone setting page, click...
  • Page 25 WIFI SIP Cordless Handset T2 Factory Reset Press Maintenance->Config->Factory Reset, to enter Factory Reset, press 【Reset】 to confirm configuration files deleting. In this window, click OK to complete the recovery of factory settings. As shown in the following figure: Restoration of factory setting...
  • Page 26 WIFI SIP Cordless Handset T2 Conference call Conference call can realize three users simultaneously, including the user sponsors call, the equivalent of a small conference call. The user which starts the conference calling can keep a certain user, two or three sides of the conversation at the same time function.The specific steps are as follows:...
  • Page 27 WIFI SIP Cordless Handset T2 (user B); Step 2: user A and user C will be in conversation;  Step 3: user D calls user A;  Step 4: the call is transferred to user B. After user B receives the call, user B ...
  • Page 28 WIFI SIP Cordless Handset T2 Voicemail number pic26 Calling voicemail pic27 No unit or individual may, without the written permission of the Company, extract, reproduce or transmit any part or all of this text without the permission of the Company.
