Ill OPERATOR OPTIONS
The AUDIO VOLUME
CONTROL
pots are located
at 13B and
14B
on the daughter
PC board.
With
the board
in the upright,
readable position
the pot
on the right
controls
the
volume
for
the
player
on the right and the pot
on the left
controls
the
volume
for the
player
on the left.
All
the other FIRE ONE
operator
options
are selected
by setting
the 8-posiiton DIP
switch
on the
daughter
PC board.

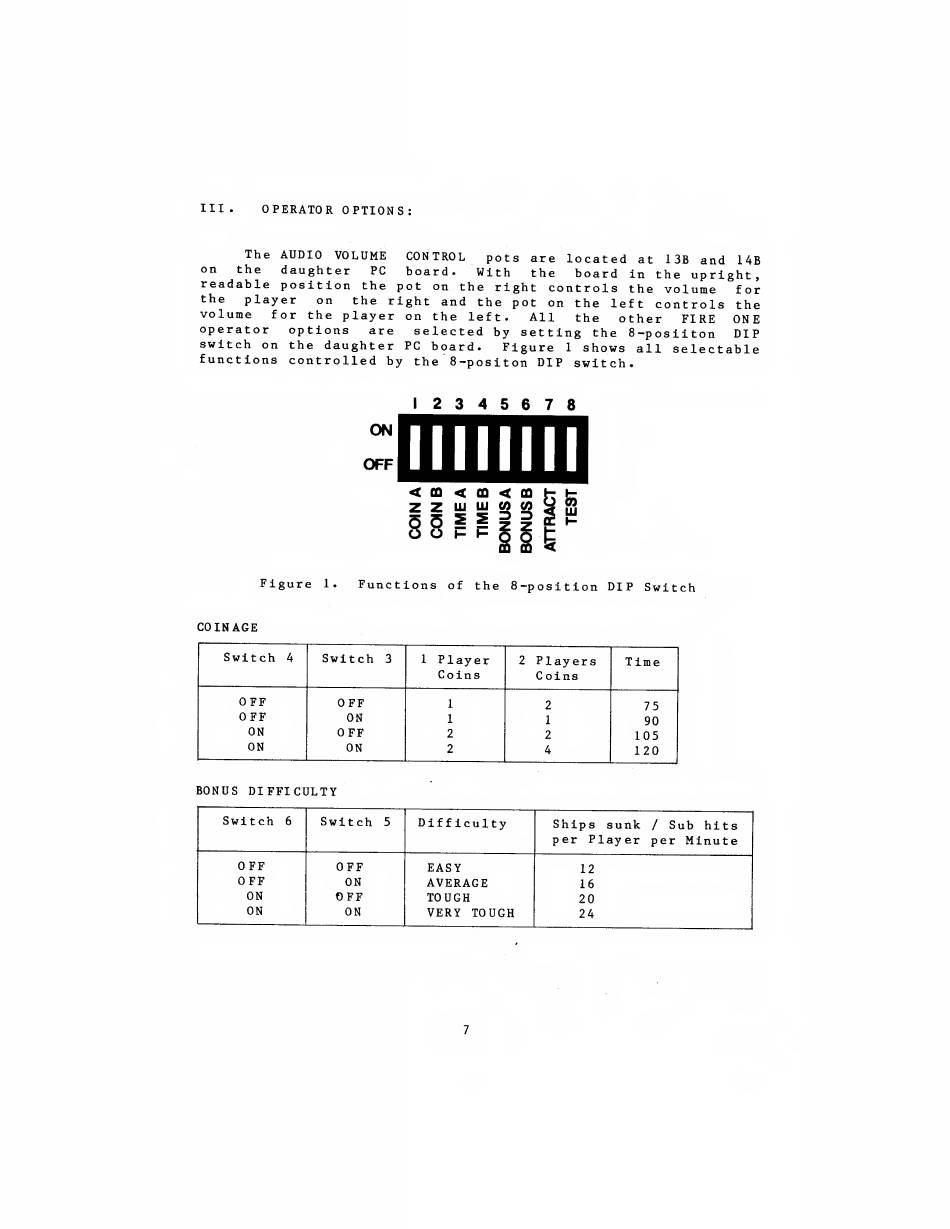

Figure
1
shows all selectable
functions controlled
by the 8-positon DIP switch.
ON
OFF
12
3 4 5 6
7 8
UilJJllJ
<CD<CD<CQh;t-
O F H S S t
Figure
1.
Functions
of the 8-position DIP Switch
COINAGE
Switch
4
Switch
3
1
Player
Coins
2
Players
Coins
Time
OFF
OFF
ON
ON
OFF
ON
OFF
ON
1
1
2
2
2
1
2
4
75
90
105
120
BONUS
DIFFICULTY
Switch
6
Switch
5
Difficulty
Ships sunk
/
Sub hits
per Player per Minute
OFF
OFF
EASY
12
OFF
ON AVERAGE
16
ON OFF
TOUGH
20
ON
ON VERY TOUGH
24
