- Page 1 Bluetooth and RCA/3.5mm Audio to Dante, White User Manual 500559-WH © MuxLab Inc. 2024 94-001059-A/SE-001059-A...
-
Page 2: Table Of Contents
7.1. Usage Precaution.............................6 7.2. System Diagram...............................6 8. Operation of Dante Controller...........................7 9. Web-UI Control.................................8 9.1 Dante Info................................9 9.2 Bluetooth Config.............................10 9.3 Input..................................12 9.4 Output..................................12 9.5 Network................................13 9.6 Security................................13 10. API Command.................................14 10.1 API Command List............................15 © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 3: Safety Precautions
All contents in this manual are copyrighted, and cannot be cloned, copied, or translated without the express permission of MuxLab Inc. Product specifications and information in this document are for reference only, and the content may be updated from time to time without prior notice. -
Page 4: Introduction

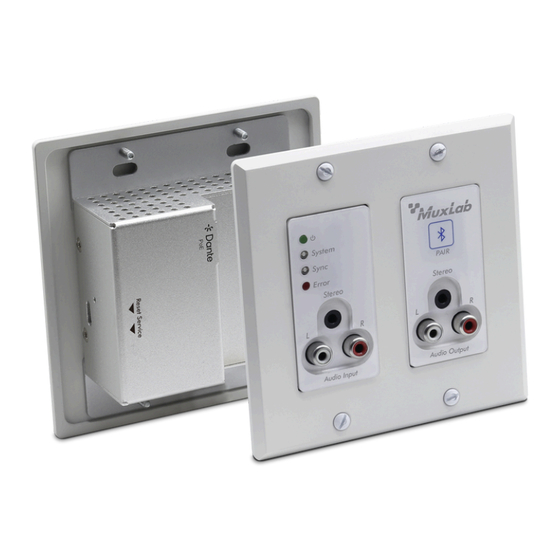

Bluetooth and RCA/3.5mm Audio to Dante, White 2. Introduction The Bluetooth and RCA/3.5mm Audio to Dante, White (Model 500559-WH) is a two-way audio transmission panel for Bluetooth, Analog Audio and Dante. It connects to mobile phones, iPad, and other devices through Bluetooth interface or to analog audio sources, and converts the received audio signal into digital signal transmission through Dante network. -
Page 5: Specifications
Relative Humility 4.22W (Max) Power consumption Dimension (W*H*D) 104.5 x 89.0 x 43.7 mm Net Weight 265g 2 years Warranty Order Information 500559-WH Bluetooth and RCA/3.5mm Audio to Dante, White (UPC: 627699015599) 6. Panel Description © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 6: System Connection
System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and safe. All devices should be connected before power on. 7.2 System Diagram © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 7: Operation Of Dante Controller
- Multicast bandwidth across the network - Transmit and receive bandwidth for each device View device performance information, including latency statistics and packet errors View clock status information for each device, including frequency offset history and clock event logs © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 8: Web-Ui Control
After get the IP address of Web-UI, enter the IP address on the browser. It will enter the log-in interface shown as below: Username: admin Password: admin Type the username and password, and then click Login to enter the section for Dante Info. © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 9: Dante Info
Identify: Click the Identify to keep the unit’s system LED flash, so that users can find the corresponding unit in a scenario with many devices. Refresh: Refresh the information in this section. © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 10: Bluetooth Config
Bluetooth® status is "Connected". Once click for close current connection and the pairing button will flash for next connection, click again to turn off pairing status. Support AVRCP control and show the music information: Artist, Album, Track. © MuxLab Inc. 2024 94-001059-A/SE-001059-A... - Page 11 The pairing list allows the user to identify the devices that have been paired and set the connection priority. Check the device you want to connect automatically, then drag to arrange the priority, click the edit priority button to save the setting. © MuxLab Inc. 2024 94-001059-A/SE-001059-A...
-
Page 12: Input
Gain: Allows the user to adjust the input’s gain from -12db to 18db Selection Control: Choose the input. 9.4 Output Name: Reports the Dante output channel name for corresponding analog output. Gain: Allows the user to adjust the output’s volume from -60db to 0db. © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 13: Network
Static IP or Dynamic Host Configuration Protocol (DHCP). Modify the static IP Address, Subnet Mask, and Gateway. 9.6 Security In this page, the user can change the password. It can also support firmware upgrade, importing or exporting the setting. © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 14: Api Command
Firstly, type in the IP address of GUI in “Host Name” and the port is 4001, chose Telnet connection type, then click the open, and a new window will pop up. Then the user can send commands to control the Dante device. © MuxLab Inc. 2024 94-001059-A/SE-001059-A... -
Page 15: Api Command List
Bluetooth and RCA/3.5mm Audio to Dante, White 10.1 API Command List © MuxLab Inc. 2024 94-001059-A/SE-001059-A... - Page 16 Bluetooth and RCA/3.5mm Audio to Dante, White © MuxLab Inc. 2024 94-001059-A/SE-001059-A...
- Page 17 Bluetooth and RCA/3.5mm Audio to Dante, White © MuxLab Inc. 2024 94-001059-A/SE-001059-A...
- Page 18 Bluetooth and RCA/3.5mm Audio to Dante, White © MuxLab Inc. 2024 94-001059-A/SE-001059-A...
- Page 19 Bluetooth and RCA/3.5mm Audio to Dante, White 2321 Cohen | St-Laurent , H4R 2N7 | Québec, Canada Tel: 514-905-0588 | Fax: Bluetooth and RCA/3.5mm Audio to Dante, White 514-905-0589 | Toll free: 1-877-689-5228 info@muxlab.com | 500559-WH salesteam@muxlab.com | www.muxlab.com Follow us:...
