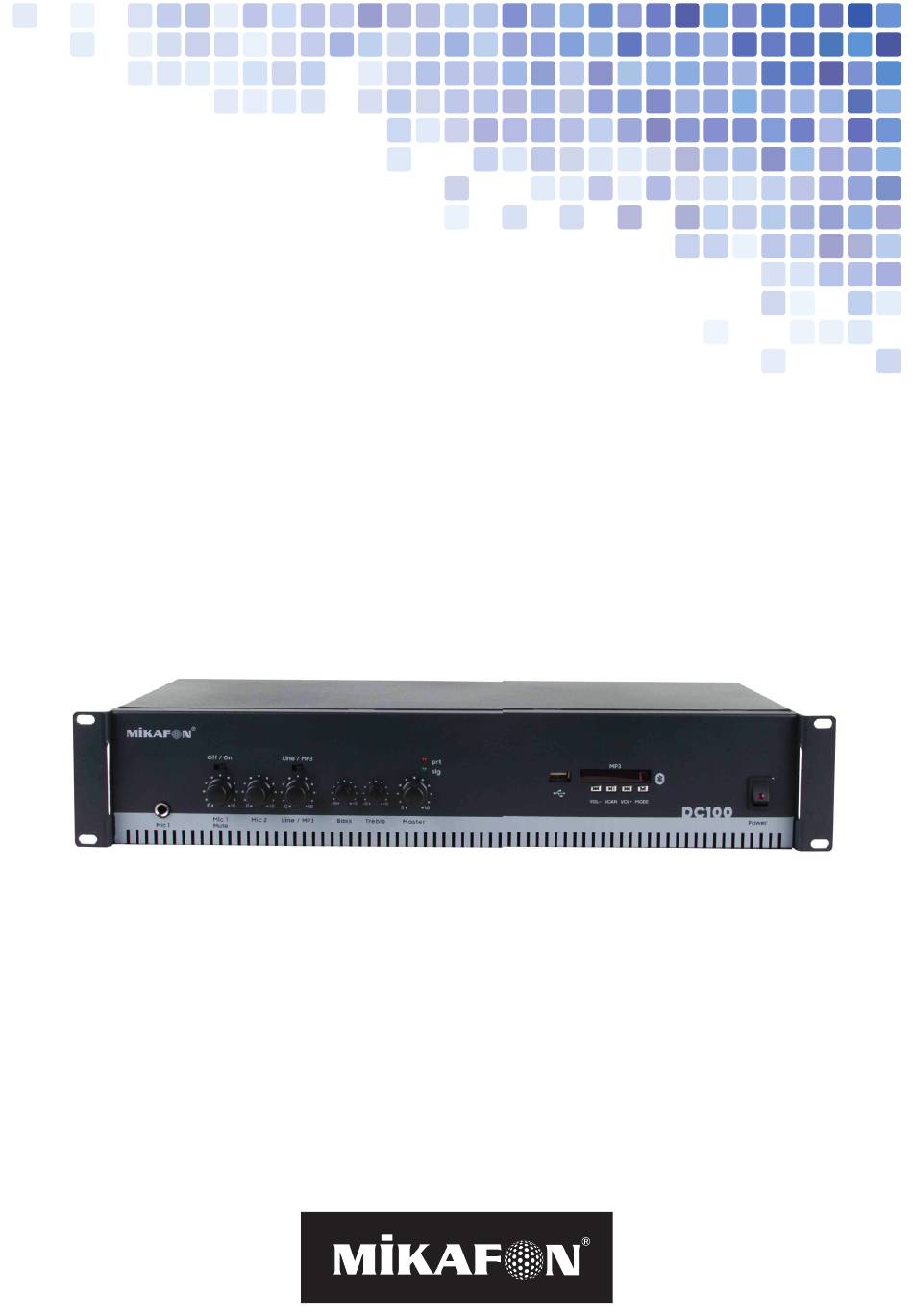

- Page 1 DC SERIES COMPACT AMPLIFIER SERIES DC50 | DC50Z | DC100 | DC200 | DC200Z USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents 1. OVERVIEW a. DC Compact Amplifier Series b. Specifications 2. CONTROL, CONNECTOR AND INDICATORS 2.1. DC50 | 50W Compact Amplifier a. Front Panel b. Rear Panel 2.2. DC50Z | 50W Zone Input Compact Amplifier a. Front Panel b. -
Page 3: Important Notices
IMPORTANT NOTICES • Before nstallng and usng the devce, please read ths manual carefully and keep t for further use. • Ths manual s an ntegral part of the product. It should be gven to the new owner n order for them to know the nstallaton, operaton and safety nstructons. -
Page 4: Control Of The Unit
CAUTIONS RELATED TO THE USE OF ELECTRICAL LINE • When pluggng and unpluggng the power cord, t should be held frmly to avod rsk. • In case t won’t be used for a long tme, the plug of the unt should be unplugged to cut off the electrcty. -
Page 5: Overview
DC Series amplifiers are classified as DC50, DC50Z, DC100, DC200 and DC200Z according to their power and ability to make zone volume control. The DC Series is designed to operate in 100V high impedance as well as 8Ω or 4Ω low impedance public address and music systems. -
Page 6: Control, Connector And Indicators
2. CONTROL, CONNECTOR AND INDICATORS 2.1. DC50 | 50W Compact Amplifier a. Front Panel Figure 1 DC50 Front Panel 1. Microphone #1: It is the number 1 microphone input. It can be used as Unbalanced. If input is made, the volume can be adjusted from the Mic1 button. 2. -
Page 7: Rear Panel
b. Rear Panel Figure 2 DC50 Rear Panel 1. 220VAC: Power socket of the device. It is 220VAC mains input and protected by a fuse. The network must be grounded. 2. Speaker Output: Speaker outputs of the amplifier. One end of the output must be taken from the COM. -
Page 8: Dc50Z | 50W Zone Input Compact Amplifier
2.2. DC50Z | 50W Zone Input Compact Amplifier a. Front Panel Figure 3 DC50Z Front Panel 1. Microphone #1: It is the number 1 microphone input. It can be used as Unbalanced. If input is made, the volume can be adjusted from the Mic1 button. 2. -
Page 9: Rear Panel
b. Rear Panel Figure 4 DC50 Rear Panel 1. 220VAC: Power socket of the device. It is 220VAC mains input and protected by a fuse. The network must be grounded. 2. Speaker Output: Speaker outputs of the amplifier. One end of the output must be taken from the COM. -
Page 10: Dc100 | 100W Compact Amplifier
2.3. DC100 | 100W Compact Amplifier a. Front Panel Figure 5 DC100 Front Panel 1. Microphone #1: It is the number 1 microphone input. It can be used as Unbalanced. If input is made, the volume can be adjusted from the Mic1 button. 2. -
Page 11: Rear Panel
b. Rear Panel Figure 6 DC100 Rear Panel 1. 220VAC: Power socket of the device. It is 220VAC mains input and protected by a fuse. The network must be grounded. 2. Speaker Output: Speaker outputs of the amplifier. One end of the output must be taken from the COM. -
Page 12: Dc200 | 200W Compact Amplifier
2.4. DC200 | 200W Compact Amplifier a..Front Panel DC200 Figure 7 DC200 Front Panel 1. Microphone #1: It is the number 1 microphone input. It can be used as Unbalanced. If input is made, the volume can be adjusted from the Mic1 button. 2. -
Page 13: Rear Panel
b. Rear Panel 7 8 9 Figure 8 DC200 Rear Panel 1. 220VAC: Power socket of the device. It is 220VAC mains input and protected by a fuse. The network must be grounded. 2. Speaker Output: Speaker outputs of the amplifier. One end of the output must be taken from the COM. - Page 14 6. Emg/Mute Switch: Switch used for emg signal selection and mute feature of microphone 1. Please refer to the table below for the working principle of the switch. Table 5 Emg/Mute Switch Working Principle 7. Record / Monitor Output: It is the mono output used for streaming to the recorder. In addition, an active monitor speaker can be connected for listening purposes.
-
Page 15: Dc200Z | 200W Zone Input Compact Amplifier
2.5. DC200Z | 200W Zone Input Compact Amplifier a. Front Panel Figure 9 DC200Z Front Panel 1. Microphone #1: It is the number 1 microphone input. It can be used as Unbalanced. If input is made, the volume can be adjusted from the Mic1 button. 2. -
Page 16: Rear Panel
b. Rear Panel Figure 10 DC200Z Rear Panel 1. 220VAC: Power socket of the device. It is 220VAC mains input and protected by a fuse. The network must be grounded. 2. Speaker Output: Speaker outputs of the amplifier. One end of the output must be taken from the COM. - Page 17 7. Emg/Mute Switch: Switch used for emg signal selection and mute feature of microphone 1. Please refer to the table below for the working principle of the switch. Table 7 Emg/Mute Switch Working Principle 8. Record / Monitor Output: It is the mono output used for streaming to the recorder. In addition, an active monitor speaker can be connected for listening purposes.
-
Page 18: Connections
3. CONNECTIONS... - Page 19 3. CONNECTIONS Table 8 Connection Installations * The connectors in the table are available in the package.
-
Page 20: Troubleshooting
4. TROUBLESHOOTING Table 9 Troubleshooting... -
Page 22: Warranty
WARRANTY GARANTİ BELGESİ Bu belgenin kullanılmasına; 4077 sayılı Tüketicinin Korunması Hakkında Kanun ve bu Kanun'a dayanılarak yürürlüğe konulan Garanti Belgesi Uygulama Esaslarına Dair Yönetmelik uyarınca, T.C. Sanayi ve Ticaret Bakanlığı İl Müdürlüğü tarafından izin verilmiştir. İMALATÇI FİRMANIN ÜNVANI: MİKAFON ELEKTRONİK İNŞ.SAN.LTD.ŞTİ. MERKEZ ADRESİ: Şair Ziya Paşa Cad. - Page 23 MİKAFON ELEKTRONİK İNŞ. SAN. LTD. ŞTİ. S h o w r o o m : Ş a i r Z i y a P a ş a C a d . N o : 8 / A 3 4 4 2 0 K a r a k ö y / İ S TA N B U L Ara Depo: Çatma Mescit Mah.
