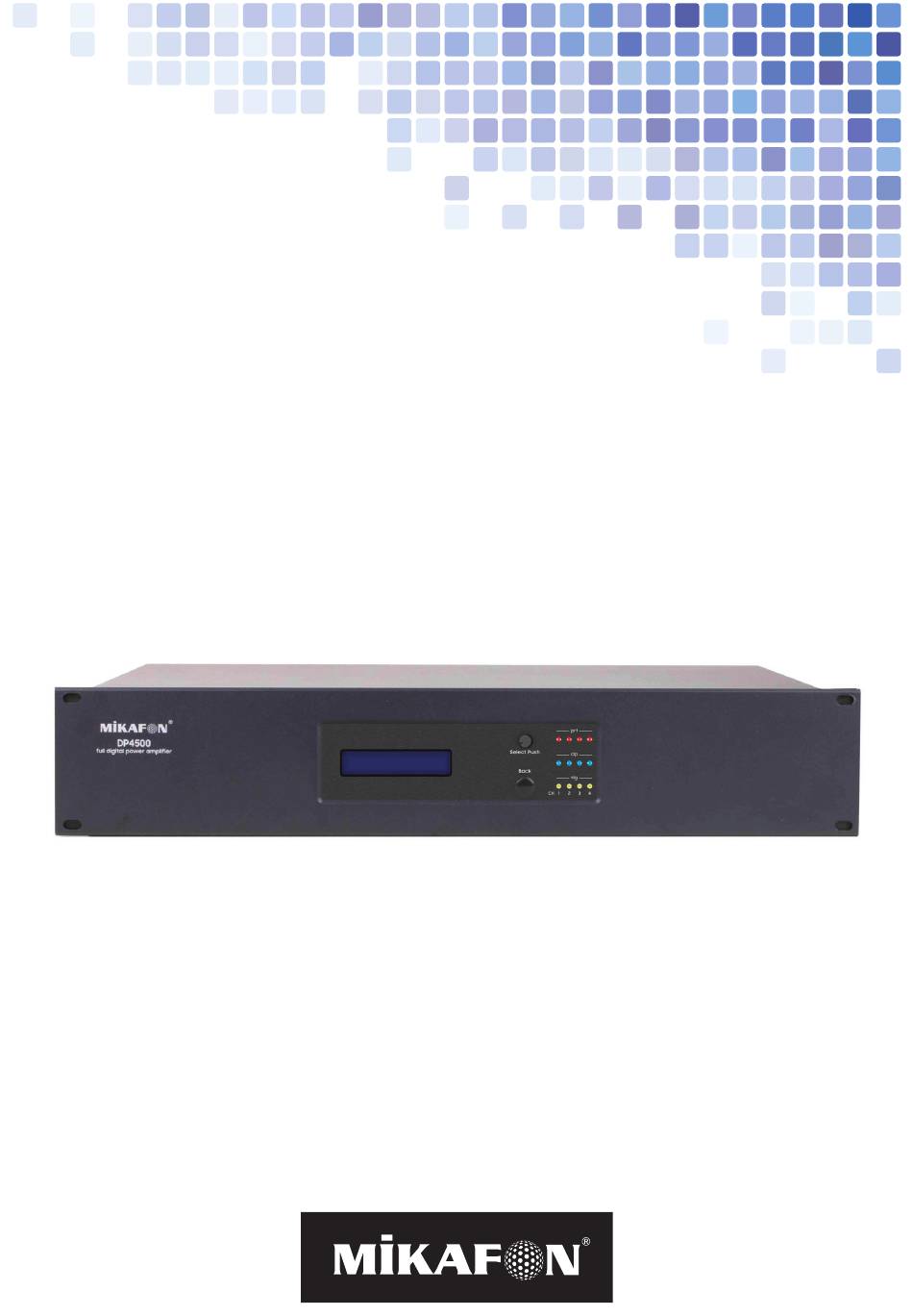

- Page 1 DP4500 FULL DIGITAL POWER AMPLIFIER USER MANUAL...
-
Page 2: Table Of Contents
Table of Contents 1. Safety & Security 2. DP4500 Power Amplifier 2.1. Front Panel 2.1.a. LCD Screen a. Volume Settings b. Equalizer Settings c. Crossover Settings d. Output Voltage Settings e. Matrix Settings f. General Settings 2.2. Rear Panel 2.2.a. Web Interface i. -
Page 3: Safety & Security
IMPORTANT NOTICES • Before nstallng and usng the devce, please read ths manual carefully and keep t for further use. • Ths manual s an ntegral part of the product. It should be gven to the new owner n order for them to know the nstallaton, operaton and safety nstructons. - Page 4 CAUTIONS RELATED TO THE USE OF ELECTRICAL LINE • When pluggng and unpluggng the power cord, t should be held frmly to avod rsk. • In case t won’t be used for a long tme, the plug of the unt should be unplugged to cut off the electrcty.
-
Page 5: Dp4500 Power Amplifier
2. DP4500 Power Amplifier DP4500 is Class-D power amplifier of Mikafon DP Series. It has an easy to use interface, which connects via TCP-IP. Unlike other devices in the market, it provides flexibility with the Matrix feature that allows the output voltages to be adjusted separately for each channel. -
Page 6: Lcd Screen
2.1.a. LCD Screen Volume Settings To increase the volume of any channel, turn the Select (3) button on the screen to highlight the volume icon and enter the menu by pressing the Select (3) button. To adjust the sound of desired output, turn the Select (3) knob to highlight the volume setting of that channel. -
Page 7: Output Voltage Settings
2.1.a. LCD Screen Output Voltage Settings This menu is the most important menu in the device. It is the speaker connection setting menu. The device has 4 pcs of separate amplifier outputs. The loudspeaker line to be connected to each output is pre-measured with an impedance meter. It is checked which voltages correspond to the measured impedance value from the table next to the outputs or Table.1, and the voltage of that output (35-50-70-100V) is selected. -
Page 8: Rear Panel
8. Ethernet: Ethernet input that allows the device to access the interface via Ethernet or by connecting directly to a computer. DP4500 is selected from the search menu on www.mikafon.com.tr. The product's exe file is downloaded and installed on the computer via the link on the page. -
Page 9: Web Interface
2.2.a Web Interface i. Installation Instructions Before using the interface, the computer must be brought to the 192.168.1 IP block that the device receives statically. When the device is turned on, it will enter to any IP in the 1st block. In order that the IPs of the device and the computer to be not the same, the IP address is checked on the device. -
Page 10: Interface Manual
ii. Interface Manual To access the interface, see 2.2.8. a. Volume Control Menu Amplifiers DP4500 DP300 Fig.6. Interface volume control menu 1. Amplifier: Once the model selection is made, it is not necessary to make this selection again in other menus. 2. -
Page 11: Lowpass & Highpass Menu
b. Low Pass & High Pass Menu Amplifiers DP4500 DP300 Fig.7. Interface LowPass & HighPass menu 1. Amplifier: Once the model selection is made, it is not necessary to make this selection again in other menus. 2. LP & HP Filter Setting: LP is frequency band settings between 2000 Hz and 22 kHz, and HP is between 20 Hz and 1000 Hz. -
Page 12: Equalizer Menu
c. Equalizer Menu Amplifiers DP4500 DP300 Fig.8. Interface Equalizer menu 1. Amplifier: Once the model selection is made, it is not necessary to make this selection again in other menus. 2. Channel Selection: The channel to make the EQ adjustment, is selected. There are 5 band EQ settings for each output. -
Page 13: Audio Matrix Menu
d. Audio Matrix Menu Amplifiers DP4500 DP300 Fig.9. Interface audio matrix menu 1. Amplifier: Once the model selection is made, it is not necessary to make this selection again in other menus. 2. (2 & 3 & 4 & 5) Channel Assignment: This is the screen where the settings of the line inputs to which outputs they will be transferred to, are made. -
Page 14: Output Voltage Menu
e. Output Voltage Menu Amplifiers DP4500 DP300 Fig.10. Interface output voltage menu 1. Amplifier: Once the model selection is made, it is not necessary to make this selection again in other menus. 2. Output Voltage: This menu is the most important menu in the device. It is the speaker connection setting menu. -
Page 15: Adjustable Archive Menu
f. Adjustable Archive Menu Fig.11. Interface archive menu 1. Library: It is a pre-created speaker library. There are sample speakers inside. 2. Add: When the button is pressed, a table opens where LP and HP values and product names can be given. Custom adjusted product features are stored in the library. -
Page 16: App Manual
3. App Manual Fig.12. App Main Screen Fig.13. App Settings DP4500 has a self-explanatory application for Android operating systems. It can be downloaded to a phone. Application is connected to the system via wifi. Some of the settings of the device can be controlled via the phone app. These are volume control and eq settings for each channel. -
Page 17: Technical Specifications
4. Technical Specifications Table.2. Technical Specifications Table... -
Page 19: Warranty
WARRANTY GARANTİ BELGESİ Bu belgenin kullanılmasına; 4077 sayılı Tüketicinin Korunması Hakkında Kanun ve bu Kanun'a dayanılarak yürürlüğe konulan Garanti Belgesi Uygulama Esaslarına Dair Yönetmelik uyarınca, T.C. Sanayi ve Ticaret Bakanlığı İl Müdürlüğü tarafından izin verilmiştir. İMALATÇI FİRMANIN ÜNVANI: MİKAFON ELEKTRONİK İNŞ.SAN.LTD.ŞTİ. MERKEZ ADRESİ: Şair Ziya Paşa Cad. - Page 20 MİKAFON ELEKTRONİK İNŞ. SAN. LTD. ŞTİ. S h o w r o o m : Ş a i r Z i y a P a ş a C a d . N o : 8 / A 3 4 4 2 0 K a r a k ö y / İ S TA N B U L Ara Depo: Çatma Mescit Mah.
