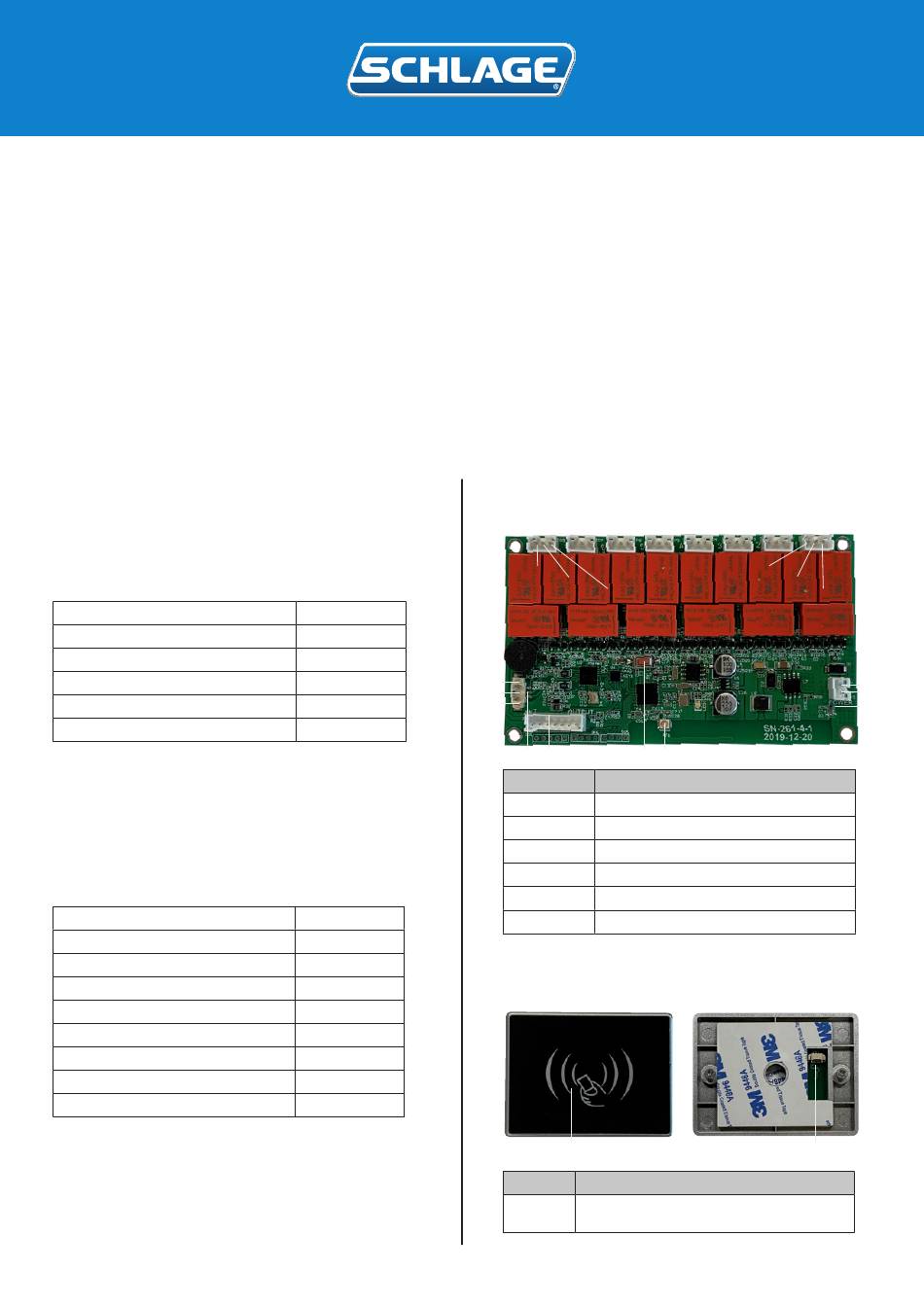

Schlage SCEBRZLC Installation Manual

Schlage
Schlage Lift Controller (SCEBRZLC)
SCEBRZLC is designed to connect to the Schlage Breeze
Hotel system seamlessly using Bluetooth technology.
Box Contents
Mainboard
Card reader PCB
Card reader housing
Relay cables
Card reader connector cable
Power cable
SCEBRZLC is installed into the lift car with individual relay cables
connected to each floor button. A mainboard manages access
via relay control for up to 8 levels. The Schlage Lift Controller

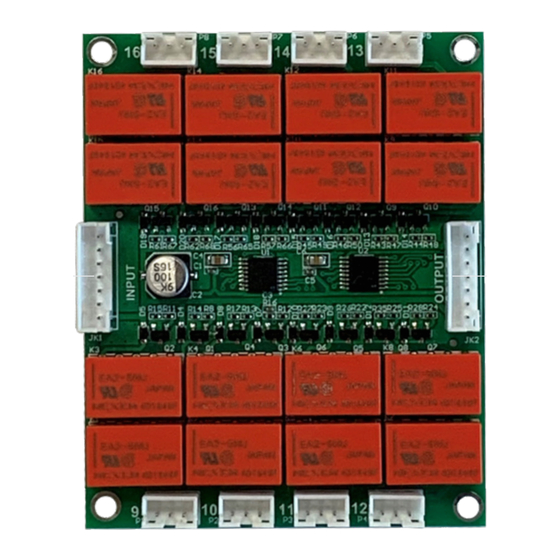

Expansion Board (SCEBRLCXP) provides an additional 8 relays. Up
to three SCEBRLCXP boards can be added to one SCEBRZLC to
provide control for up to 32 floors.
Specifications
Bluetooth standard
Mobile phone Android
Power supply
Voltage range
Stand-by current
Working current
Operating temperature
Card type
Unlocking
Lift Controller
Schlage Lift Controller (SCEBRZLC)
Schlage Lift Controller Expansion Board (SCEBRLCXP)
Installation Guide
1
1
1
8
1
1
4.1BLE
4.3 / IOS7.0
DC Power
9 ~ 16V
10 mA
<400 mA
-20 ~ 70C
MIFARE M1 S50
App & IC card
Schlage Lift Controller (SCEBRZLC)
Mainboard Layout
P8 P7 P6 P5
P8_COMC
P8_COMN
P8_COMO
A1
A2
A3
A B C D
Label Description
A Card reader interface
B Expansion board (SCEBRLCXP) interface
C Reset button
D Spare antenna interface
E Power connector
P1 - P8 Relay connections for lift interface
Card Reader
Front View
Card area
Label Description
EXA Card reader interface connects to mainboard
(SCEBRZLC)
P4 P3 P2 P1
P1_COMC
P1_COMN
P1_COMO
E1
E2
E
Back View
EXA
