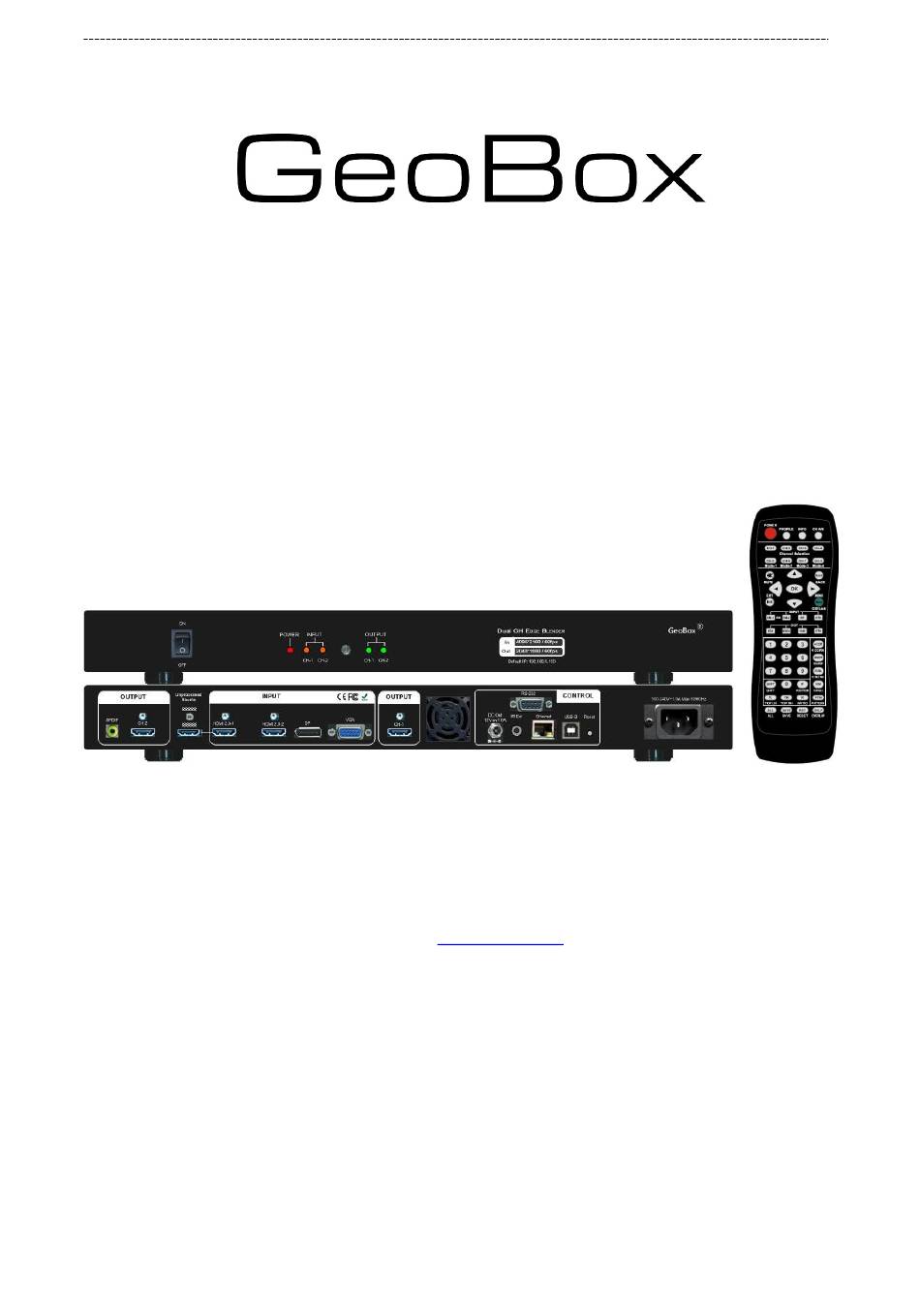

G802 User Guide
Document: G802-3
G802 Dual Channel Edge Blender User Guide
New generation Warp & Edge blending
Full functions in one box
No PC required
Max. Input: 4096*2160 @60Hz 4:4:4, 7680*1200 @30Hz
Max. Output: 2048*1080 @60Hz 4:4:4
Sales & Technical support
Web site:
www.vigillink.com
E-mail:
info@vigillink.com
Version: VL-V1.01
Tel: +949-502-4484
