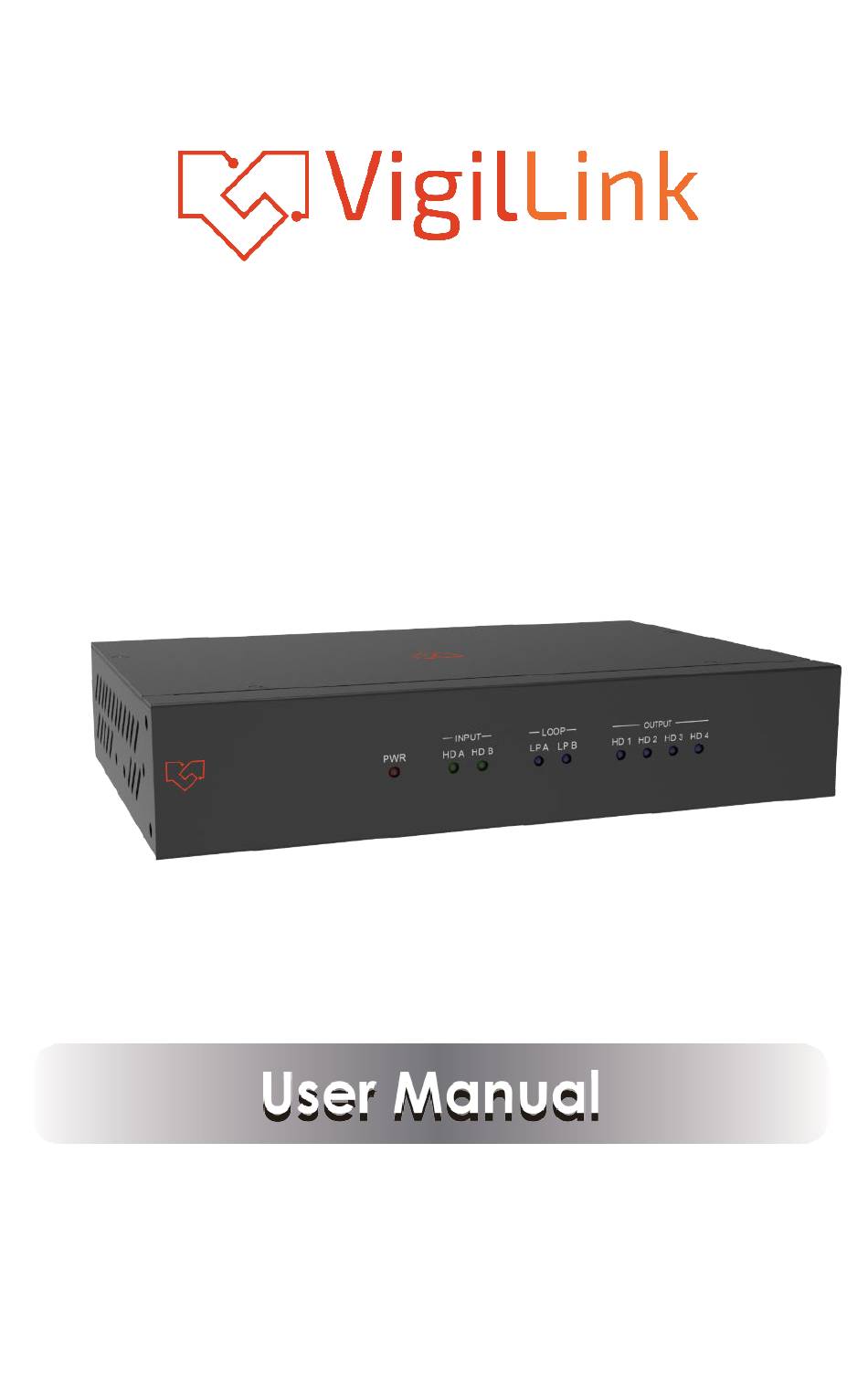

- Page 1 VLVW-MX24P 2X4 HDMI 2.0 Videowall processor 18Gbps VER 1.02...
-
Page 2: Table Of Contents
Thank you for purchasing this product Please read these instructions carefully for optimum performance and safety before connecting, operating, or adjusting this product. Please keep this manual for future reference. A surge protection device recommended This product contains sensitive electrical components that electrical spikes may damage, surges, electric shocks, lightning strikes, etc. -
Page 3: Introduction
1. Introduction This product is an HDMI 2.0 Video Wall controller with 2 HDMI input, 2 HDMI loop out, and 4 HDMI scaling out for video wall processing. The Toslink jack terminal provides analog L/R audio and digital SPDIF audio output. 5-pin Phoenix jacket provides balanced L/R audio output, with PC Tool or RS232 commands to control the product for different wall displays. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.0 HDCP Compliance HDCP 2.2/1.4 RS-232 Baud rate: 57600, Data bit: 8, Stop bit: 1, no parity 4096x2160p 24/25/30/50/60Hz 1400x1050 60Hz 3840x2160p 24/25/30/50/60Hz 1366x768 60Hz 1080p 24/25/30/50/60Hz 1360x768 60Hz 1080i 50/60Hz 1280x1024 60Hz Input Video Formats 1920x1200 60Hz 1280x960 60Hz 1680x1050 60Hz... -
Page 5: Operation Controls And Functions
5. Operation Controls and Functions Front Panel Name Function Description The power LED will be on when the unit is powered on. Power LED The LED will be on when the corresponding HDMI input port is INPUT LED connected to an active HDMI source device. The LED will be on when the corresponding LOOP OUT port is LOOP LED connected to the HDMI display device. -
Page 6: Rs232/Lan Control Connection
TOSLINK: Analog L/R audio output • 3.5mm Stereo Jack. 20Hz ~ 20kHz, 1.5Vrms max Digital SPDIF audio output • AUDIO OUTPUT BALANCED OUT: Balanced audio output port. 5-pin phoenix connector, 20Hz ~ 20kHz, 1.5Vrms max. SERVICE Firmware update port. RS232: Loop out the RS232-CTL control command. RS232-CTL: External RS232 control, Baud Rate: 57600 Data Bits:8, Parity: None Stop Bits:1 CONTROL... -
Page 7: Pc Tool User Guide
7. PC Tool User Guide The PC tool is an installation-free control software that supports both UART and network control. It consists of five parts: Matrix Switch, Signal Setting, FineTune: PQ, Video Wall, and CEC Control. The UI is as follows: ■... - Page 8 Predefined EDID option like below: 1920x1200-2.0CH 4K60-2.0CH 1680x1050-2.0CH 4K60-5.1CH 4K30-2.0CH 1600x1200-2.0CH 4K30-5.1CH 1440x900-2.0CH 1400x1050-2.0CH 1080P-2.0CH 1360x768-2.0CH 1080P-5.1CH 1280x1024-2.0CH 720P-2.0CH Manual 1024x768-2.0CH ■ Signal Setting Page Users can read the resolution of each input port and set the resolution of each scaling output. Available output resolutions: Output Resolution Setting Output Resolution Setting...
- Page 9 ■ FineTune: PQ Page You can read and set each output's Brightness/Contrast/Saturation/Sharpness. Note: Suggest always use the default setting 50/50/50/50. Do not change the default settings without special conditions; If there is a problem after changing, click "Reset" to return to the factory settings. ■...
- Page 10 ■ Video Wall Page This page is used to configure a group of outputs to function as a video wall. 1. Use the Video Wall Setting controls to change how the displays are arranged on the Video Wall page: a. Adjust the Rows and Columns sliders to change the displayed screen arrangement to permit proper Drag-and-Select of the desired screens for the video wall.
- Page 11 6. Repeating steps 2 ~ 5 above with different outputs allows for creating a second video wall. However, changing the Rows, Columns, and Available sliders will automatically delete the current video wall set up when the "Set" button is clicked. The following example shows a more unusual video wall set-up of two video walls with two 2x1 configurations: Video Wall Context Menu Right-clicking on any of the screen icons will display the following context menu:...
- Page 12 Screen Stitching This option connects the selected screens into a video wall configuration. Cancel Stitching Return the Video Wall configuration to normal outputs. Remove the single screen x from the video wall to allow the displaying of another full-frame image within the video wall configuration, as shown in this example: Screen x –...
-
Page 13: Safety Instructions
Bezel Compensation The following images demonstrate the effect of not having bezel compensation and what correctly configured bezel compensation settings should produce: Correct Bezel Compensation No Bezel Compensation Layout Save/Load The Save Scene/Layout and Load Scene/Layout buttons allow a video wall configuration to be saved or recalled at any time. -
Page 14: Connection Diagram
9. Connection Diagram - 12 / 12 -...
