INSTALLATION MANUAL

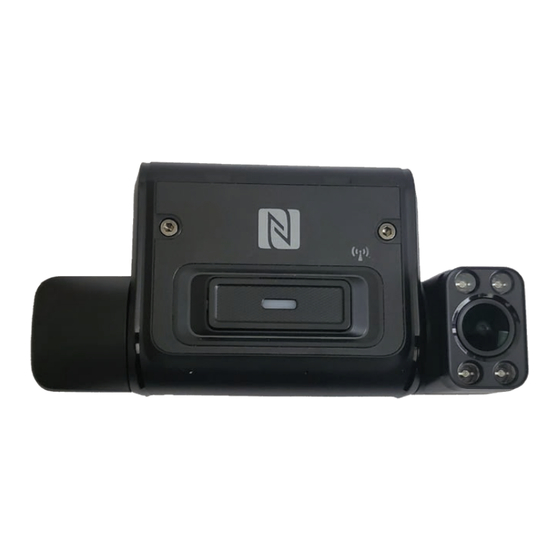

CameraView (Mitac k245 Camera)
Document ID: IM-DC-X4
Last Updated: August 16, 2024
Pedigree Technologies recommends using a professional installer for optimal
results. Please let your Pedigree Technologies representative suggest a provider if
you need help with your hardware installations.
PedigreeTechnologies.com | Support: (701)-499-0022
Advertisement
Table of Contents
Related Manuals for Pedigree Technologies CameraView Mitac k245
Summary of Contents for Pedigree Technologies CameraView Mitac k245
- Page 1 CameraView (Mitac k245 Camera) Document ID: IM-DC-X4 Last Updated: August 16, 2024 Pedigree Technologies recommends using a professional installer for optimal results. Please let your Pedigree Technologies representative suggest a provider if you need help with your hardware installations. PedigreeTechnologies.com | Support: (701)-499-0022...
-
Page 2: Required Information
• Split windows may have to adjust mounting location other than what is recommended in this document. Consult with your implementation manager at Pedigree Technologies. • DO NOT INSERT YOUR OWN SD CARD - SD Cards must be properly formatted for use with the camera. If you need a new SD Card or want to increase the size of the SD Card, PLEASE CONTACT YOUR ACCOUNT MANAGER. -
Page 3: Power Cable
CameraView Mitac k245 Installation Steps, Continued Dry Fit Determine proper placement of camera on the front windshield. (Dry fit only. It’s important to run cabling to power source and determine where it will fit properly.) • High on the windshield next to the rearview mirror area right of center divider •... - Page 4 CameraView Mitac k245 Installation Steps, Continued Installation - Molex Plug STEP ONE Connect the Molex end of the power cable to the “Camera” plug on the Accessory Harness on the back of the Cab-Mate Flex. Camera Power Cable Accessory NEW HARNESS OPTION Harness If the previously installed 3640 LMU does not already have an Accessory Harness, or you are...
- Page 5 CameraView Mitac k245 Direct Wire Installation Option STEP ONE Cut off the 10-pin molex connector from the power cable. STEP TWO The Black wire (ground) should be securely fastened to a grounded screw or chassis ground. STEP THREE The Yellow wire (power) should be connected to a constant 12-24VDC power source found at the key source or the fuse panel.
- Page 6 CameraView Mitac k245 Installation Steps, Continued Connect Power Cable to Camera STEP ONE Connect the power plug to the power port on the camera. Camera with power cable attached Power Cable Port Test Camera Functionality STEP ONE Blue Power LED Before securing cabling, check that the camera is receiving power.
-
Page 7: Mount Camera
CameraView Mitac k245 Installation Steps, Continued Mount Camera STEP ONE Determine proper placement of camera on the front windshield. • Center of the windshield next to the rearview mirror area • Highest possible placement within the wiper blade path • Avoid any overhanging exterior sun visor or other materials on glass including rock chips or cracks. - Page 8 CameraView Mitac k245 Mount Camera continued STEP FIVE Orient the camera to the windshield. • Camera should be level to the horizon line. • Point the lens forward with a slight downward angle so the camera picks up the front hood at the bottom of the frame.
-
Page 9: Mounting Tips
CameraView Mitac k245 Mounting Tips STEP THREE Align the front facing camera with the visible horizon line. STEP FOUR Use the “Select View” button to switch to the driver facing camera. The driver camera will have a circle to line up the optimal locaiton for the driver. - Page 10 CameraView Mitac k245 Mounting Tips GOOD MOUNTING TIPS • Metrics visual detection happens within red square area (image right) • Horizon line must be level with more road than sky • Field of view in green area • No occulsions in field of vision. Good = level horizon, road in range Bad = too much sky CABIN VIEW...
