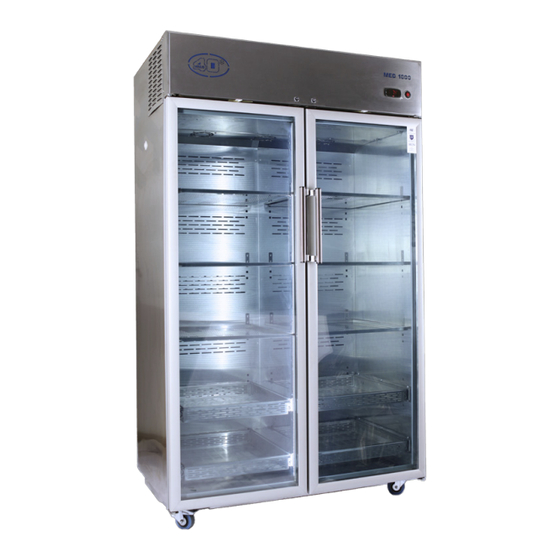

minus40 MED1000GHD Instruction Manual

MED1000GHD Instruction Manual
MED1000GHD
Congratulations on your new Minus40 Refrigerator!
This premium product incorporates the latest innovations in
refrigeration technology with a highly durable design. Properly
maintained, the unit(s) will provide many years of reliable service.
Please read the following instructions carefully as it contains
important information concerning the safety, installation, operation and
maintenance of your Refrigerator.
SAFETY INSTRUCTION
• Always disconnect the unit from the mains supply before
attempting to do maintenance or before removing the top grille.
• In case of unit failure, disconnect it from the power supply and
contact your service technician or supplier for advice.
• If the supply cord is damaged it must be replaced by the
manufacturer or its service agent or a similarly qualified person
in order to avoid a hazard.
MINUS40 (PTY) Ltd
Tel: +27 (0) 21 386 2290 | E-mail: service@minus40.co.za
Medical Fridge
INSTALLATION GUIDE
Follow these easy steps to Install your new Minus40 unit.
• Remove all wrapping and packing material.
• Position the unit out of direct sunlight and away from any other
sources of heat.
• The maximum ambient temperature in which the unit will function
is 32°C.
• The unit may not be built into a furnishing fixture.
• The unit "breaths" through the grill, and if blocked, the unit will not
operate properly, which can damage the compressor.
• Ensure the unit is perfectly level for the door(s) to function
properly.
• Install the 6 adjustable shelves (The 4 pull-out drawers are pre-
installed).
• This fridge comes with a built-in Voltage Protector.
Please note: The Voltage Protector has a 3 to 5-minute time delay
once switched on
BUILT-IN VOLTAGE PROTECTOR
This premium product incorporates a built-in voltage protector that
regulates the power supply and ensures a stable voltage supply
to the refrigerator to maximise equipment efficiency and reduce
damage and downtime caused by a power surge.
POWER SUPPLY
DO NOT CONNECT THE UNIT TO THE MAINS SUPPLY UNTIL YOU
HAVE READ THE FOLLOWING INFORMATION.
• A qualified person by all local standards and regulations should
carry out any electrical alterations to the unit.
• The power supply should be in accordance with the electrical
specifications listed on the rating plate. The rating plate can be
located inside the unit on the top right-hand side.
• Always ensure that the electrical connection is suitably earthed.
• An inadequate electrical installation can result in voltage
reduction at the compressor or cause damage to the motor.
• If in doubt about any of the electrical matters mentioned above, a
suitably qualified electrician should be consulted.
• When all of the electrical requirements have been satisfied, the
unit may be plugged into the mains socket.
ALWAYS USE A DIRECT CONNECTION TO THE PLUG OUTLET
EXTENSION CORDS SHOULD NEVER BE USED.
LOADING GUIDE
When loading the unit
• always ensure that you do not block the internal air vents and
always allow space for the cold air to circulate the contents and
the inside of the cooler.
• The Minus40 is designed to automatically evaporate the
condensate water in the compressor compartment.
MAINTENANCE INSTRUCTIONS
Repairs:
• Before carrying out any maintenance or repair work, please
ensure that the unit has been disconnected from the mains
supply.
• Any service performed on these refrigerators within the
1-year warranty period MUST be cleared and reported to the
manufacturer. Failure to do this will void the standard warranty.
BUILT-IN VOLTAGE PROTECTOR
INSTRUCTIONS
This premium product incorporates a built-in voltage protector that
regulates the power supply and ensures a stable voltage supply to
the refrigerator to maximise
equipment efficiency and reduce
damage and downtime caused
by a power surge.
Operation principles LED light:
The voltage protector is located
at the top right of the motor
compartment. The LED lights are visable through the grille.
RED: Under/ Over voltage
Delay
Amber/Yellow:
Green: Good power supply
V1_01/24
