UNIMO Technology UDR-S100 User Manual

Digital mobile radio
Hide thumbs

Advertisement

Table of Contents

Service Manual

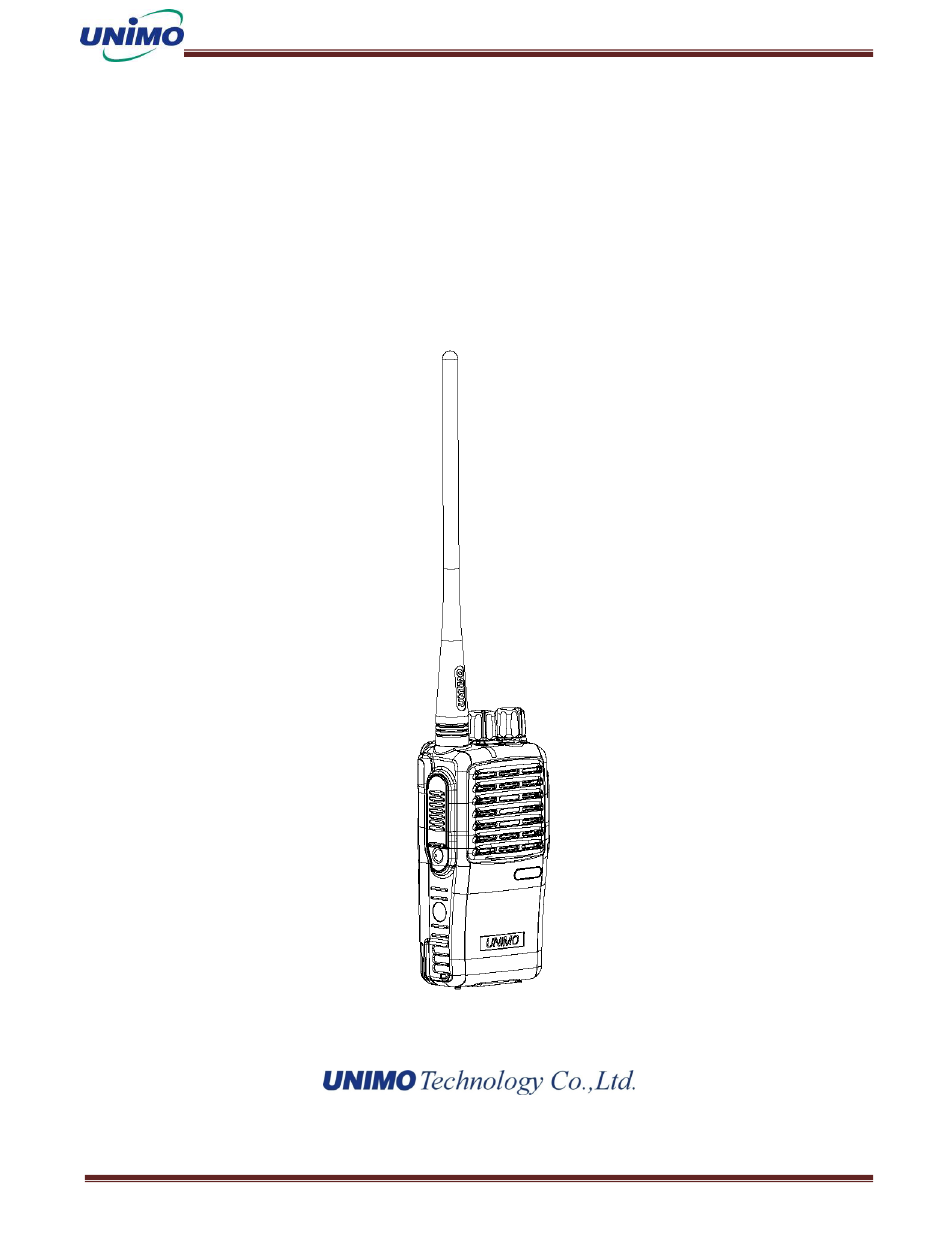

UDR-S100/S400 Portable Radio
Digital Mobile Radio
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDR-S100 and is the answer not in the manual?

Questions and answers

Related Manuals for UNIMO Technology UDR-S100

Summary of Contents for UNIMO Technology UDR-S100

  • Page 1 Service Manual UDR-S100/S400 Portable Radio Digital Mobile Radio User Manual...

  • Page 2: Understanding The Product

    ♣ sure to read and understand the user manual before using this equipment. ♣ Features may be changed without prior notice to improve product performance. ♣ The copyright of the user manual belongs to UNIMO Technology Co., Ltd., and unauthorized reproduction in whole or in part is prohibited.
  • Page 3 Service Manual Matters affecting the operation of radios or other devices Because radios generate strong radio waves and detect weak radio waves, the operation of other electronic devices may be affected or affected. Turn off your radio when boarding the aircraft. When using it, follow the rules of the aircraft or the instructions of the flight attendant.
  • Page 4 Service Manual Safety precautions The following information provides guidance and instructions for the safe and effective use of your UNIMO radio. Please be sure to read it. When using a walkie-talkie, keep it at least 1 inch (2.5 cm) away from your body. The antenna coating may be damaged and cause burns if it touches the skin.

  • Page 5: Product Features

    Service Manual PRODUCT FEATURES The UDR-E Series terminal is a European standard DMR type digital walkie-talkie that uses A MBE+2 vocoder to provide optimized sound quality and noise-free voice quality regardless of distance. It is also designed to have a light and sturdy structure and provides powerful s ound.
  • Page 6 Service Manual COMPONENTS Basic Components ◼ Transceiver ……………………………………………………1EA ◼ 7.4V, 2,600mAh lithium-ion battery ……………………1EA ◼ Antenna …………………………………………………………1EA ◼ Quick Charger …………………………………………………1EA ◼ AC110~220V/DC12V Adapter …………………………………1EA ◼ User manual ……………………………………………………1EA ◼ UDR Wrist strap ………………………………………………1EA Optional components ◼ Leather case ◼ Antenna .

  • Page 7: Name And Explanation Of Each Part

    Service Manual NAME AND EXPLANATION OF EACH PART The following is a description of the UDR-E series transceiver operation and display functi ons. Detailed operation instructions are provided in the next chapter. Description of each part...
  • Page 8 Service Manual Power ON/OFF Volume Variable If you slowly turn the volume switch clockwise, the device turns on and the volume graduall y increases. If you turn it counterclockwise, the volume decreases and the power turns off. Channel Change Switch(encoder) Wireless channels must be programmed into the terminal in advance using a CPS program, and a total of 1024 channels can be entered and selected.
  • Page 9 Service Manual EXT Speaker & Microphone Jack You can connect and use external accessories (external speaker & microphone, earphones, et c.) through the speaker & microphone jack located on the side of the terminal. Terminal pro gramming is possible using a CPS program cable or cloning cable. Status Display Status LED Users can recognize the current status of the terminal through the status display LED locat...

  • Page 10: Basic Operation Method

    Service Manual BASIC OPERATION METHOD Power ON/OFF ◼ Turn the power/volume switch clockwise to turn it on. ◼ Turn the power/volume switch counterclockwise until you hear a tick to turn it off.
  • Page 11 Service Manual Attaching and Removing Antenna ◼ To separate and attach the antenna, attach the antenna to the antenna connector of the main body and turn it clockwise to connect the antenna. Turn it counterclockwise to di sconnect the antenna.. ☞...
  • Page 12 Service Manual Install and Remove Battery Battery Installed ◼ Turn off the main unit. ◼ Hold the main unit and battery in both hands so that the back is visible. ◼ Align the hooks on the back of the main body with the hooks on the front of the batter ◼...
  • Page 13 Service Manual 4.4 Removed Battery ◼ Turn off the main unit. ◼ Hold it in both hands so that the back of the body and battery are visible. ◼ While pressing down on the locking device, gently slide the battery downward to remove it from the main body.
  • Page 14 Service Manual Installing and removing the battery belt clip - Belt clip removal - - Belt clip attached - ◼ Remove the belt clip from the battery by lifting the locking device located on the top of the belt clip and sliding the belt clip upward. ◼...
  • Page 15 Red LED lights ON Charging complete Green LED lights ON Bad battery Red LED flashing Temperature out of range, Yellow LED flashing Rear slot waiting for charging ☞ The charger must be a genuine product provided by UNIMO Technology Co., Ltd.
  • Page 16 Service Manual 4.7 Precautions when charging ◼ The battery is designed to be used only with our dedicated charger, and we are not res ponsible for any problems arising from the use of a third-party charger. ◼ When charging the battery while it is installed in the terminal, the terminal must be turned off and charged for full charging..

  • Page 17: Function Description

    Service Manual FUNCTION DESCRIPTION Power On/Off Power is supplied by turning the power switch clockwise, a “beep beep” sound will be hear d and a message informing you of the current channel will appear. From this point on, the t erminal can operate normally.
  • Page 18 Service Manual VOX Function VOX function allows you to transmit using the voice signal input into the microphone withou t pressing PTT. You can set it in advance using the CPS program and use it with the set but ton. Monitoring Function (Analog 기능) To force open Squelch, press the Monitor button.
  • Page 19 Service Manual 5.8.2 DCS Code DCS Code frequencies refer to the table below DCS Code No. DCS Code No. DCS Code DCS Code...
  • Page 20 Service Manual Digital(DMR) Call Mode 5.9.1 Individual calls Select a channel set with an individual ID, one-to-one communication is performed with the terminal with the correct ID. Setting the frequency for each channel in the CPS program, it must be set in advance. The receiver receives if the received ID is the same as MY ID.
  • Page 21 Service Manual 5.13 Cloning CLONING is a function that copies the channel information of one radio to another radio. It ems to be duplicated can be frequency channels/tones/SCAN, etc. Cloning function only suppo rts wired method. 5.13 Wired Cloning ◼ We prepare cloning cables exclusively for the UDR-Series manufactured by our company.
  • Page 22 Service Manual 5.18 License Options This item can be used by adding additional options in addition to the common functions. 5.18.1 Encryption This is a function that encrypts the call contents to prevent third parties from listening to them. . ARC4: 40bit encryption function, and up to 10 digits can be specified for encryption. .
  • Page 23 Service Manual 사 양(SPECIFICATION) MODEL: UDR-S100 GENERAL Dimensions(Less Antenna) H x W x D 102.4 × 53mm × 32.5 mm Weight Radio (less battery) 117.7g with battery (2600mAH) 268.2g Programmable Channels 1024 Channels Channel Spacing 12.5(Digital)/12.5,25(Analog)kHz Power Source 7.5V DC Rechargeable Li-ion 2600 mAH battery pack...
  • Page 24 Service Manual MODEL: UDR-S400 GENERAL Dimensions(Less Antenna) H x W x D 102.4 × 53mm × 32.5 mm Weight Radio (less battery) 117.7g with battery (2600mAH) 268.2g Programmable Channels 1024 Channels Channel Spacing 12.5(Digital)/12.5,25(Analog)kHz Power Source 7.5V DC Rechargeable Li-ion 2600 mAH battery pack Current Drain (maximum) Receive Standby mode 120 mA...
  • Page 25 It is safe in any environment and provides high capacity and high reliability. If you use the standard charger provided by Unimo, you can fully utilize the battery's effi ciency and service life. ☞ You must use genuine batteries provided by Unimo Technology Co., Ltd.
  • Page 26 Service Manual Charger Cradle This is a dedicated charger designed to charge the high capacity Li-ion battery (PBC-2260W) provided by UNIMO. There is a 1-prong charger (CHNZ-260S) and a 2-prong charger (CHNZ-260DK), and we provide 1 -prong or 2-prong chargers depending on the requested option. 6.4.1 1-Prong Charger(CHNZ-260S)
  • Page 27 Service Manual 6.4.1 2-Prong Charger(CHNZ-260DK) Charger Specifications Item Specifications Input Voltage DC 12V ± 20% Applicable Battery PBC-2260W Charging Time 3시간 30분 Operating Temperature 0 ~ 40℃ Size 135(L) * 87(W) * 50(H)m/m Charging Current 900 mA...
  • Page 28 Service Manual . Address : 6F, Hanshin IT 2nd Tower, 47 Digital-ro 9-gil, Geumcheon-gu, Seoul, Rep ofKorea) . Tel : +82-2-6710-7000 / Fax : +82-2-6710-7004 http://www.unimo.co.kr http://chatterboxglobal.com...
  • Page 29 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radiocommunications, However, there is no guarantee that interference will not occur in a particular installation, lf this equipment does cause harmful...
  • Page 30 guidelines, your radio generates measure able RF energy only while it is transmitting (during taking, not when it is receiving (listening or in standby mode. Your radio device complies with the following Rf energy exposure standards and guidelines: ● United States federal Communications Commission (FCC), Code of Federal Regulations; ●...
