Summary of Contents for UNIMO Technology PZ-S400

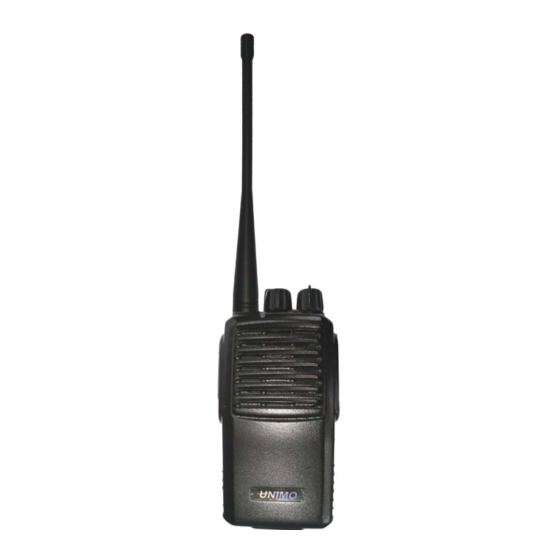

- Page 1 Manual PZ-S series Portable Radio PZ-S400, PZ-S100...
-
Page 2: Table Of Contents
Maintenance Manual TABLE OF CONTENTS SPECIFICATIONS ..............................5 MODEL: PZ-S100 ............................5 MODEL: PZ-S400 ............................6 MODEL NUMBER ..............................7 PZ-S SERIES RADIO PACKAGE NUMBERS ..................... 7 FEATURES ................................7 CONTROLS & INDICATORS ..........................9 Controls ................................. 10 On/Off Volume Switch ......................10 Channel Select Switch ...................... - Page 3 Maintenance Manual Installation and Removal of Antenna ......................17 Power On/Off ..............................17 Transmission ..............................17 Receiving ............................... 17 Changing Channels ............................18 Adjusting Transmitting Power ........................18 SCAN Operating mode ..........................18 Normal Scan .......................... 18 Priority Scan .......................... 19 Transmitting ..........................
- Page 4 Maintenance Manual Squelch Level ..............................24 Cloning ................................24 Wire Cloning .......................... 24...
-
Page 5: Specifications
Maintenance Manual SPECIFICATIONS MODEL: PZ-S100 GENERAL 112.2 × 56mm × 31.9 mm Dimensions(Less Antenna) H x W x D Weight Radio (less battery) with battery (2600mAH) Programmable Channels 16 Channels Channel Spacing 12.5 / 25 kHz Power Source 7.5V DC Rechargeable Li-ion 2600 mAH battery pack Current Drain (maximum) Receive Standby mode 69 mA... -
Page 6: Model: Pz-S400
Maintenance Manual MODEL: PZ-S400 GENERAL 112.2 × 56mm × 31.9 mm Dimensions(Less Antenna) H x W x D Weight Radio (less battery) with battery (2600mAH) Programmable Channels 16 Channels Channel Spacing 12.5 / 25 kHz Power Source 7.5V DC Rechargeable Li-ion 2600 mAH battery pack... -
Page 7: Model Number
Maintenance Manual MODEL NUMBER To identify the model number of PZ-S series Radio is as followings P Z – S1 0 0 Identification number radio Frequency Band manufactured by UNIMO Model Number Description PZ – S100 Frequency band: 136 – 174 Mhz, PZ –... - Page 8 Maintenance Manual Scramble function of frequency Inverter Type Compander function Dual Tone Modulation Frequency (DTMF) Selectable Channel Spacing (12.5kHz / 25KHz) Normal Scanning and Priority Scanning Time-Out Timer (TOT) 2-Tone Paging BCL (Busy Channel Lock) / BCLO (Busy Channel Lock Out) ...
-
Page 9: Controls & Indicators
Maintenance Manual CONTROLS & INDICATORS The following section provides a description of the controls and Indicators for the PZ-S series radio. Detailed operating instructions can be found the later chapter. Channel Select switch Antenna Emergency Button ON/OFF Volume switch Status LED Speaker PTT Button Speaker-Microphone Jack... -
Page 10: Controls
Maintenance Manual Controls On/Off Volume Switch Turn the knob of Volume Switch clockwise to turn the Radio on and if turning the Switch to the opposite direction, the Radio is turned off. The audio volume level can be adjusted by turning the Volume Switch and when adjusting the volume, please refer to the index mark indicated nearby the Volume knob. -
Page 11: Side Button (Scan Button)
Maintenance Manual When this button is assigned to “Emergency” then the red button is activated for emergency function. Press the “Emergency” button in an emergency situation, an emergency siren sound will be heard through the speaker in the Radio. And the Radio will transmit an emergency signal to the party through the emergency channel. -
Page 12: Battery Packs
The battery is safe, of high-performance and highly reliable. Using the enclosed standard charger makes it possible to get sufficient efficiency and lifetime of the battery. ☞ Battery Packs used with the PZ-S series radio must be supplied by UNIMO Technology Co., Ltd. CAUTION... -
Page 13: Installing The Battery Pack
Maintenance Manual Installing the Battery Pack Ensure the ON/OFF volume switch is set to OFF position of the radio. Hold the radio and battery pack with the back of them facing you. See Figure Align the hook back of the radio with the hook front side of the battery pack ... -
Page 14: Removing The Battery Pack
Maintenance Manual Removing the Battery Pack Ensure the ON/OFF volume switch is set to OFF position of the radio. Press down the release latch and slide the battery pack down side of the radio. See Figure... -
Page 15: Charging The Battery Pack
Maintenance Manual Charging the Battery Pack New batteries or batteries that have been stored for a long time period should be fully charged before placing into service. Low battery voltage will shorten the talk range and will make the performance of radio worse. -
Page 16: Charger
During maintaining charge green LED is turn ON ☞ Charger used with battery packs must be supplied by UNIMO Technology Co., Ltd. Charging the battery on the other manufacturer’s can cause unexpected damage of the battery and the radio CAUTION... -
Page 17: Radio Operations
Maintenance Manual RADIO OPERATIONS Installation and Removal of Antenna Put the antenna into the antenna connector of the radio and turn the antenna clockwise for installation of antenna and in order to remove the antenna from Radio, turn the antenna counterclockwise. ☞... -
Page 18: Changing Channels
Maintenance Manual tone or 5 Tone. If frequency is same as current channel but sub-tone is not same as current setting than the green LED blinks. In order to check if the current channel is in use, press the Monitor button (M) on the left side of Radio. -
Page 19: Priority Scan
Maintenance Manual Priority Scan As soon as priority scan channel is detected, the radio will change priority scan mode. When the scan channel list is NS1, NS2, NS3 and priority scan channel is PS, the radio proceeds to scan in the sequence of PS, NS1, PS, NS2, PS, NS3, PS, NS1.. -
Page 20: Subtone
Maintenance Manual Subtone The radio can be programmed for CTCSS encode/decode tone frequencies and DCS code. CTCSS tone frequency A list of standard tone frequencies for CTCSS tone are describing as shown below. Frequency Frequency Frequency Frequency 67.0 110.9 179.9 196.6 71.9 114.8... -
Page 21: Dcs Code
Maintenance Manual DCS code A list of standard DCS tone codes are described as shown below. DCS Code DCS Code DCS Code DCS Code... -
Page 22: Tone Function
Maintenance Manual 2 Tone Function The radio encodes the received 2 Tone before receiving the transmission voice when current channel is activated 2 Tone. If the 2 Tone corresponds with that of current channel then radio receives the corresponding 2 Tone normally. (In case of No Tone or the corresponding Sub-tone) The VOX function is set up by Pc-Programmer and without pressing the PTT key, the voice signal is transmitted through microphone. -
Page 23: Bcl/Bclo
Maintenance Manual with ”beep” sound. BCL/BCLO BCL/BCLO function is used not to interrupt the other users who are using the same frequency. If BCL/BCLO is activated then transmitting is prohibited from the same channel that was used for others. In this case, alert sound is heard. - Page 24 Maintenance Manual Squelch Level The user can be set the 9 different squelch levels on the radio. It can be changed on the PC programmer or press the pre-assigned button. Cloning The personality data of radio such as frequency/Tone/Scan can be copied to other radio directly using by cloning function.
- Page 25 Acknowledging Special Precautions and the FCC Notice Cautions. Modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC compliance Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
- Page 26 RADIO FREQUENCY ENERGY SAFETY INFORMATION This UNIMO transceiver has been tested and complies with the standards listed below, in regards to radio Frequency(RF) energy electromagnetic energy(EME) generated by the transceiver > FCC RF exposure limits for Occupational use only. RF exposure limits adopted by the FCC are generally based on recommendations from the national council on radiation protection and measurement, &...
- Page 27 > Do not transmit for more than 50% of the total transceiver use time; transmitting over 50% of the total use time may exceed the limits in accordance to the FCC RF exposure requirements. Nominal transceiver operation is 5% transmission time,5% reception time, and 90% stand-by time >...
- Page 28 IMPORTANT Safety Instruction: 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this equipment near water. 6) Do not using near any heat sources such as radiators, heat resisters, stove, or other equipment that produce heat.
- Page 29 European Union Regulatory Notice Compliance with these directives implies conformity to harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by HP for this product or product family. This compliance is indicated by the following conformity marking placed on the product.
