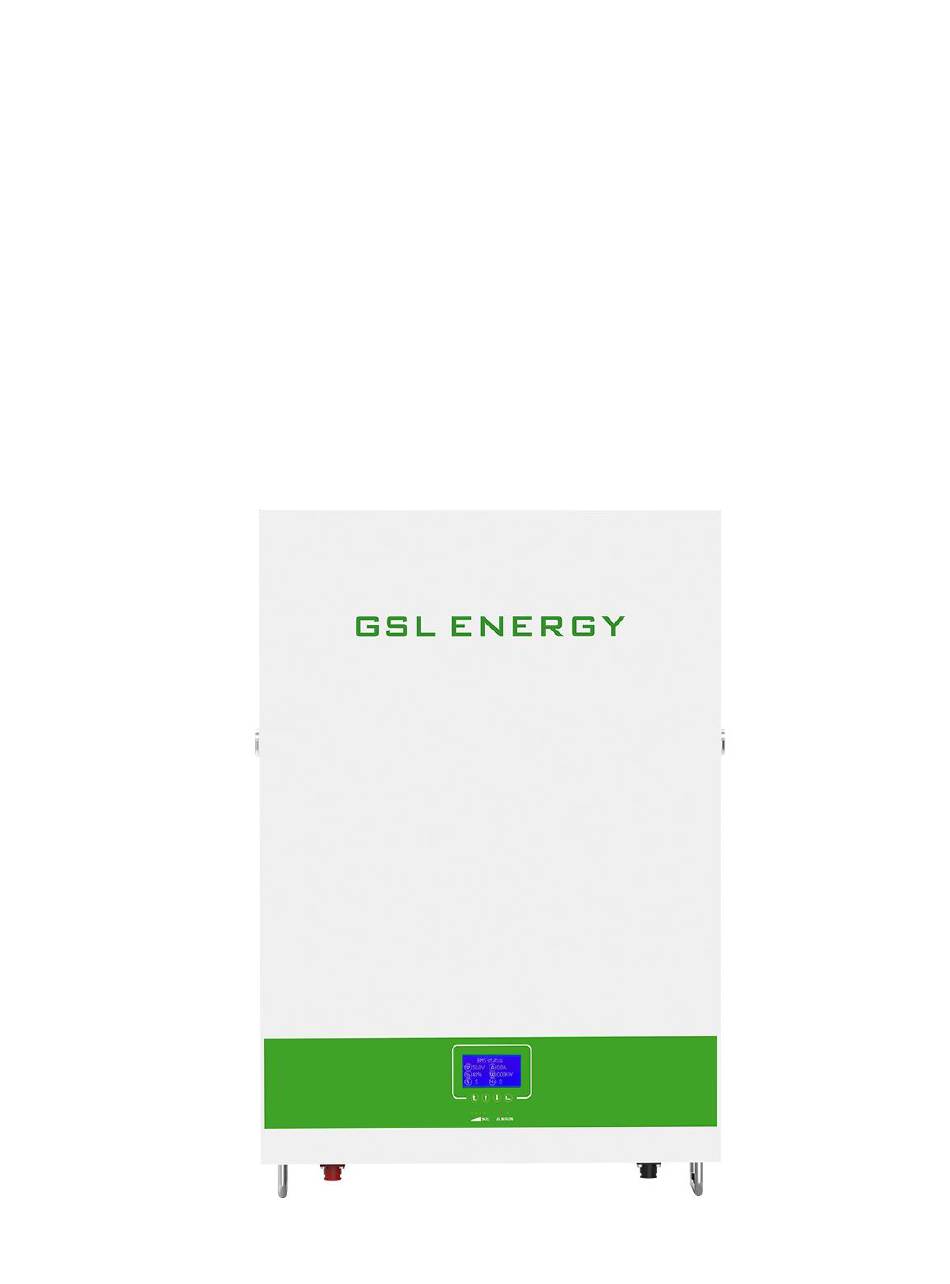

- Page 1 Solar Lithium Battery Energy Storage System User Manual Version: 1.0 Wall Mounted Lifepo4 battery 51.2v 200Ah -10.24kwh Model No : GSL-051200A-B-GBP2 For On / Off Hybrid Solar Storage System...
-
Page 2: Table Of Contents
Contents 1.Safety Precautions ......................- 3 - 1.1 Before Connecting ............................- 3 - 1.2 During operation ............................- 3 - 2.Battery Details ......................... - 4 - 2.1 Battery Product Label ..........................- 4 - 2.2 Dangerous label ............................- 5 - 2.3 Battery Specifications ..........................- 5 - 3. - Page 3 6.Use, maintenance and troubleshooting ..............- 34 - 6.1 Battery system usage and operation instructions ..................- 34 - 6.2 Alarm description and processing ......................- 39 - 6.2.1 Alarm and countermeasure for affecting system output ............... - 39 - 6.2.2 Alarm and countermeasure for non-affecting system output ..............
-
Page 4: Safety Precautions
1.Safety Precautions It is very important and necessary to read the user manual carefully before installing or using the battery. Failure to follow any of the instructions or warnings in this document can result in electrical shock, serious injury, death, or may damage the battery and the whole system. If the battery is stored for a prolonged time, it is requirement that they are charged every three to six months, and the SOC should be no less than 80%. -
Page 5: Battery Details
2.Battery Details 2.1 Battery Product Label This battery product meets European directive requirements Read the user manual before using After the battery life is terminated, the battery can continue to be used after it recycled by the professional recycling organization and do not discard it at The scrapped battery cannot be put into the garbage can and must be professionally recycled. -
Page 6: Dangerous Label
2.2 Dangerous label 2.3 Battery Specifications Battery Specifications Model No GSL051200A-B-GBP2 Nominal Parameters Nominal Voltage 51.2V Rated Capacity 200Ah Energy 10.24kWh Dimensions (L x W x D) 780*550*200mm /30.7*21.6*7.8 in Weight 102.5.5kg - 5 -... -
Page 7: Introduction To The Battery
Electrical Parameters Max. discharge voltage of 56VDC battery End of discharge voltage of 46VDC battery Maximum charge current of 150A battery Maximum discharge current 150A of battery Charging temperature range 0-45℃ of battery Discharge temperature range -20- 55℃ of battery Number of cells in battery 16S2P pack... -
Page 8: Interface Introduction
3.2 Interface Introduction Description Silk-screen Remark LCD Display Battery capacity LCD guideline ENTER/UP/DOWN/ESC LED indicator Running State LED indicator LED indicator Running State DC Breaker ON/OFF 200A Breaker Battery Positive Battery Negative Ground Connection DIP ADDRESS 8 PINS Number CAN/RS485 CAN/RS485 Connecting battery to Inverter Parallel function or connecting... -
Page 9: Communication Interface
3.2.1 Communication interface CAN&RS485 BMS and inverter communication connection CAN - with 8P8C vertical RJ45 socket RS485- with 8P8C vertical RJ45 socket RJ45Pins Definition notes RJ45Pins Definition notes CANH RS485-B2 1、8, CANL RS485-A2 2、7, 3、6, - 8 -... -
Page 10: Bms Internal Grid Connection & Monitoring
RS485-A/RS485-B 3.2.2 BMS internal grid connection & monitoring RS485_A/B - with 8P8C vertical RJ45 RS485_A/B - with 8P8C vertical RJ45 socket socket RJ45 Pins Definition notes RJ45 Pins Definition notes 1、8、 RS485-B1 1、8、 RS485-B1 2、7、 RS485-A1 2、7、 RS485-A1 3、6、 3、6、 4、5、... -
Page 11: Soc Indicator & Status Indicator Guides
RS485-A/B As master, CAN with inverter, 485-A/B as slave mode parallel communication Note : Monitoring of battery system performance is achieved via inverter monitoring portal/app 3.3 SOC Indicator & Status Indicator Guides Chart 1 Battery Status - 10 -... - Page 12 Chart 2 Battery Capacity Chart 3 Battery status - 11 -...
-
Page 13: Connectors
3.4 Connectors Charge / Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery to the inverter via DC isolator. Canbus/485 active communication port between battery and inverter. USB to RS485: to get dynamic monitoring data of the battery from upper computer. Address: Reserved Address portal for multiple parallel connections. -
Page 14: Display Function Instruction
3.6 Display function instruction 3.6.1 Screen Display 3.6.2 Functional Display Interface introduction Electricity/dormancy activated, will show the welcome screen, press the MENU button to enter the main menu page. As shown in the figure below： - 13 -... - Page 15 Analog Info- Battery temperature Analog Info-Battery cells state - 14 -...
- Page 16 Analog Info- Battery Capacity Pack info—Record - 15 -...
- Page 17 Pack info—Pack info - 16 -...
- Page 18 Key description SW1---ESC，SW2----UP，SW3----DOWN，SW4----ENTER 1) Each item is “》”or“--”as a beginning，among them“》”shows the current cursor position，press DOWN key can move the cursor position；with“》”end of the project the content of the said project has not shown, press ENTER key can enter the corresponding page.
-
Page 19: Safe Handling Of Lifepo4 Battery Guide
4. Safe handling of lifepo4 battery guide 4.1 Tools The following tools are required to install the battery pack: Wire cutter Crimping Modular Plier Screw Driver NOTE Use properly insulated tools to prevent accidental electric shock or short circuits. If insulated tools are not available, cover the entire exposed metal surfaces of the available tools, except their tips, with electrical tape. -
Page 20: Installation
5.Installation 5.1 Standard package list items Thoroughly inspect the packaging upon receipt of goods. If there is any item missing or if there is any damage to the external packaging or to the unit itself upon unpacking, please contact us immediately. -
Page 21: Installation Location
Parallel com cable 1 PC Battery com port to Battery com port for parallel 16pcs at max L: 1.0 meter Ground cable Connect to the grounding point of the modules 5.2 Installation Location Make sure that the installation location meets the following conditions: The installation site must be suitable for the size and weight of the battery. -
Page 22: Minimum Clearances
5.2.1 Minimum clearances Observe the minimum clearances to walls, other batteries or objects as shown in the diagram and picture below in order to guarantee sufficient heat dissipation Direction Minimum clearance (mm) Above Below Sides Front - 21 -... -
Page 23: Installing The Battery Pack
5.3 Installing the Battery Pack 5.3.1 Mechanical Installation --Mounting to a wall WARNING In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations before drilling holes.The battery is heavy, please handle with care to avoid damage to the product or injury to the installer. -
Page 24: Electrical Installation
5.3.2 Electrical Installation 1.Before connecting the power cables, using multi-meter to measure cable continuity, short circuit, confirm positive and negative, and accurately mark the cable labels. 2.Measuring method: A.Power cable check: select the buzzer mode of multi-meter and detect the both ends of the same color cable. -
Page 25: Inverter Connection
Before opening the cover to operate, you must contact GSL ENERGY and inform the ID of the product. GSL ENERGY records this battery ID and authorizes the opening operation. Except changing the DIP switch mode, no other operations can be done. - Page 26 ●Must keep pressing this Lock Button while pulling out the power plug. Power cables sets : - 25 -...
-
Page 27: Connection Of Communication Interface
5.3.6 Connection of Communication Interface Connect the CAN IN port of the battery to the CAN or RS485 communication interface of the inverter using the RJ45 cable. PIN Definition Foot Position Color Definition PIN 1 White Green 485B PIN 2 Green 485A PIN 3... -
Page 28: Parallel Use Of Battery
5.3.7 Parallel use of battery When the system is used in parallel, it supports up to 16pcs wall batteries in parallel. According to the number of parallel system (Take 3 batteries in parallel as an example), it needs to use: Power cable ×... - Page 29 PINOUT of System Parallel communication cable PINOUT of Battery-Battery communication cable diagram shown as below: Communication cable for battery parallel connection Communication cable for battery and inverter - 28 -...
- Page 30 An over-current protection and isolation device that operates both positive and negative conductors simultaneously is required between parallel batteries and between the inverter and battery system. Modifying the power cables to insert an over-current protection and isolation device between parallel batteries will not void product warranty.
-
Page 31: Battery Module Dip Switch Definition And Description
ON: CAN 250K, 485:115200 DIP switch description For GSL wall-mounted battery systems, the master module at the bottom of cabinet , the othermodules are slaves. When the batteries are connected in parallel, the master communicates with the slaves through the RS 485 interface. - Page 32 VICTRON, ,GROWATT SPF, SCHNEIDER Conext series, before connecting you need confirm that the DIP switch mode of the master module in battery module is 000010000("# 5" to "ON") 2. ) Slave Battery setting from 2 pcs to 16pcs GSL batteries as below : Mark : M- master Battery S-Slave Battery...
- Page 33 A.If the equation holds after calculation, it means communication between the GSL battery is normal. B. If the GSL Battery light board shows three different colors flash alternately, it means the communication between battery is fault.
-
Page 34: Battery Parameter Settings On The Inverter
After the battery system installation is completed and the running is normal,you need to log in to the GSL ENERGY official website to register the product installation and use information to make the product warranty effective. Please follow the instructions on the website to register. -
Page 35: Use, Maintenance And Troubleshooting
6.Use, maintenance and troubleshooting 6.1 Battery system usage and operation instructions After completing the electrical installation, follow the instruction below to start the battery system. 1) Power on Step 1 : Before turning on the battery, please make sure the DC breaker between battery and inverter is on ”OFF”... - Page 36 Step 2 Pull Battery DC breaker up to “ON” position. Battery positive and negative will be active then. Step 3 Turn on Battery DC Switch , then LCD and LED will be flash at once, BMS is activated. Customer can check battery SOC, Voltage state on LCD. - 35 -...
- Page 37 Step 4 Pull DC breaker to “ON” position on battery and outside DC breaker, then system can begin to work. 2) Power off Step 1 Pull down DC breaker switch on “OFF” position - 36 -...
- Page 38 Step 2 Turn off Power switch to shut down BMS, LCD, LED finally. Step 3 Pull battery DC breaker at “OFF” position. Cut off battery positive and negative output. - 37 -...
- Page 39 After pressing the power button, if the battery status indicator lights shows abnormally, please refer to the "6.2 Alarm description and processing". If the failure cannot be eliminated, please contact the retailer timely. After pressing the power button, if the battery status indicator continues to be red, please referto the "6.2 Alarm description and processing".
-
Page 40: Alarm Description And Processing
6.2 Alarm description and processing When protection mode is activated or system failure occurred, the LED indicator on the front panel will alarm, through net management can query specific alarm class and take appropriate action. 6.2.1 Alarm and countermeasure for affecting system output If there are any abnormalities affecting the output, such as battery cell in the battery module occurs over-current protection during charge/discharge, under-voltage protection, and temperature protection, in the system, please deal with them according to Table 6-1. -
Page 41: Analysis And Treatment Of Common Faults
6.2.3 Analysis and treatment of common faults Table 6-3 Item Fault phenomenon Reason analysis Solution The indicator does not Make sure press and respond after power on hold the power switch Check the power switch the system (Reset switch) for 3s. Check the status of the DC No DC output after Check if the DC... - Page 42 SHENZHEN GSL ENERGY CO LTD Head office : A601-602, Builiding 1, Tianan Cyber Park, Long Gang Central City, Shenzhen , Guangdong, China Factory address : Building #2 , 58 Xinjian Rd, St.Qiuchang, Huiyang Distr. Huizhou, Guangdong, China. Web: www.gsl-energy.com Tel : 86-755-84515360 After sales support : tech@gsl-energy.com...
