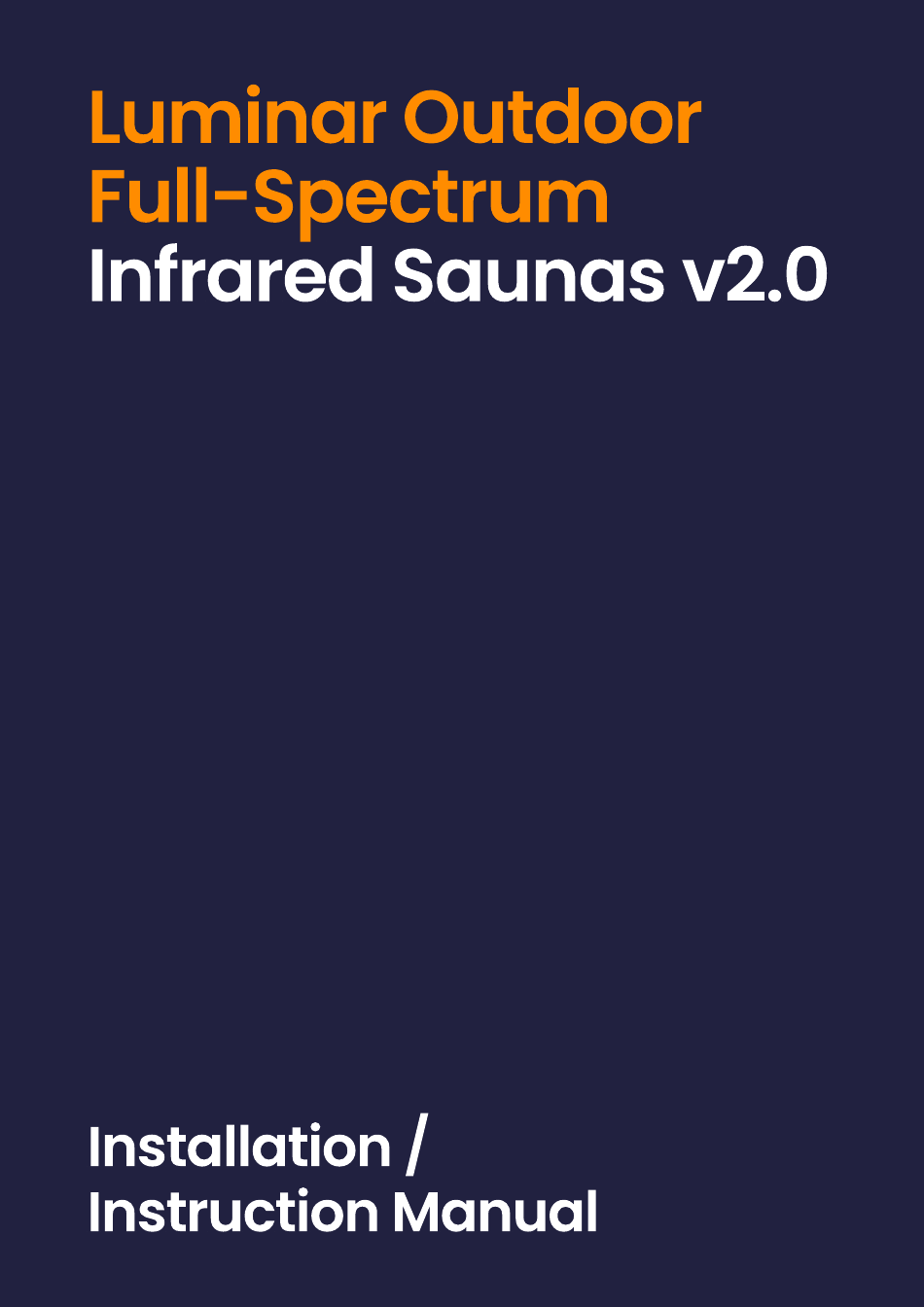

- Page 1 Luminar Outdoor Full-Spe trum Infrared Saunas v2.0 Installation / Instruction Manual...
- Page 2 Content Specifications Pre-Installation Information Included with Your Sauna Parts Assembly Frame and Heater Assembly Installing Accessories Operating Cautions Using the Control Panel Using the Physical Control Panel Using the “Smart Life – Smart Living” App to Control Your Sauna Usage Guidelines Warm-Up Time Sauna Protocol Safety Warnings...
- Page 6 Frame and Heater Assembly The following pictures are used for reference. Don’t worry if your sauna is slightly different from the pictures, just follow the steps0 !0 Open the sauna packages in a large area.3 0 Place the Floor Panel at the desired location. 0 Raise the Side Panels0 d0 Before assembling the panels, use silicone-based caulk and a caulking gun to apply caulk to the seam on the vertical ends of panels from the top to the...
- Page 7 @$ Attach the Front Panel, caulking the seams as was done on the back panel, then screwing the panel to the side panels.& Ä$ Attach the Door Panel in the same way$ Â$ If there are wires and cables in the notches at the top of the walls, lift them out; draping them outside of the sauna.&...
- Page 8 00! After the ceiling panel is in place, connect the electrical wires in the ceiling panel (male to female connectors). These connectors are numbered. Match each male/female pair with the corresponding number. 0S! The thick black cable connects the sauna to the power source. Pass in through and out the notch in the wall panel.
- Page 9 Luminar 2 Roof Luminar 5 Roof...
- Page 10 The wiring chain of small circular LEDs in the roof ends in an open connector. The connectors for these LEDs are the same connector as the Bench LEDs. Note: Do not plug the Bench LEDs into the power wiring chain for the circular Ceiling LEDs. The black Control Box has a red wire coming out with no connector.
- Page 11 3) The connector with the red and black wires will be connected to the roof lighting later.! 3Æ Make the last electrical connections for the heaters by plugging the black cables by the floor into the outlets above them. 3T Take rectangular pieces with the slats and place them in the channels between each pair of blocks on the floor.
- Page 12 # Connect the wires coming from the back of the sauna to the connectors in the front of the benches. #W Next install the backrests. Place the backrests against the wall and the sides aligned with the holes in the wall. Connect wire from the top of the backrests to the wire that comes through the wall for the LED lights.
-
Page 13: Installing Accessories
7%' The next step is attaching the front heaters. Using the bolts, slide the rubber washer on one side of the bolt. Feed the bolt through the hole in the glass and put a washer on the other side, so that the glass is sandwiched between the two washers, protecting the glass and providing a weather-tight seal.2 Ã' Screw the bolt into the back of the heater, attaching the heater to the glass' Ã7' Plug the heaters into the outlets. - Page 14 Installing the Door Hinge The soft close hinge connects the door to the frame. Install the Soft-close Hinge as shown. Installing a Red-Light Therapy Panel If you have purchased the Red Light Therapy add-on, you can easily connect it to the glass door with the included bolts.y cd Slide a plastic washer onto each bolt.
- Page 15 & Connect the light socket to the Sauna power socket using the male and female spring wires. The controls for the light panel are located on the side of the panel. There you can select the time period and whether RED or NIR (near infrared) light is desired.
-
Page 16: Operating Cautions
Operating Cautions a Check all the circuitry and the plug connections carefully.d a Do not share the outlet with other electrical appliances to avoid danger.d a Do not use the sauna room if under the influence of alcohol, drugs or medications.d a Pregnant women or persons with poor health should consult their physicians before use.d... - Page 17 The effects of excessive hyperthermia may include failure to perceive heat, failure to recognize the need to exit, unawareness of impending hazard, fetal damage in pregnant women, physical inability to exit the sauna, and unconsciousness. x Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician prior to using the sauna.Y x Persons using medications should consult a physician before using the sauna...
- Page 23 ÉÅ Supply the appropriate credentials to Log In or Sign Up.5 Å Begin with the sauna in the standby mode (not turned on)Å ÇÅ Press and hold the power button on the Controller for 8 seconds. The sauna will make a chirp sound but nothing will turn on. It is now in the pairing mode, and you can begin the pairing process.
- Page 24 È Tap the “+” sign. 1 Tap Add Device on the page that opens. Complete the required information v Tap Continue FE The Add Device page opens.
- Page 25 After successfully adding the Controller to your Wi-Fi network, tap Next to continue.
- Page 26 To turn the heat ON or OFF, tap Infrared Sauna icon. To turn the downlight ON, tap the Light icon. To control the LED lights, tap the LED Light icon. Use the slider to set the Target Temp. Use the slider to set the Timer. The reservation function allows a user to schedule a session in the sauna.
- Page 30 reset the GFCI by pushing the RESET button. The GFCI power indicator will turn on, restoring power to the Sauna. If the interrupter does not perform in this manner, there may be an electrical malfunction and with it, the possibility of an electric shock.
-
Page 31: Maintenance
Hyperthermia Danger Prolonged exposure to hot air will induce hyperthermia. Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal body temperature of 98.6F (37C). While hyperthermia has many health benefits, it is important not to allow your body’s core temperature to rise above 1 3F (39.5C). - Page 35 DISPUTE RESOLUTION AND BINDING ARBITRATION. (a) YOU AND SUN HOME ARE AGREEING TO GIVE UP ANY RIGHTS TO LITIGATE CLAIMS IN A COURT OR BEFORE A JURY, OR TO PARTICIPATE IN A CLASS ACTION OR REPRESENTATIVE ACTION WITH RESPECT TO A CLAIM. OTHER RIGHTS THAT YOU WOULD HAVE IF YOU WENT TO COURT MAY ALSO BE UNAVAILABLE OR MAY BE LIMITED IN ARBITRATION.
- Page 36 (c)You may elect to pursue your claim in small-claims court rather than arbitration if you provide us with written notice of your intention do so within 30 days of your purchase. The arbitration or small-claims court proceeding will be limited solely to your individual dispute or controversy.
