D. REMOVING THE DOOR INTERLOCK
SWITCHES (Figures 9, 10)
(1) Disconnect the wire leads from the interlock
switches.
(2) Remove two screws securing the Latch Board.
(3) Make necessary replacements and check
microwave energy leakage according to
"ADJUSTMENT PROCEDURE" on page 7-12.
Latch Board
Primary Interlock Switch
BK(CN1)
RD(Bottom TCO)
RD(H.V.Transformer)
WH(from Convection Heater)
Monitor Interlock Switch
WH(from H.V.Transformer)
RD (from H.V.Transformer/
Secondary Interlock Switch
PK(from P.C.B)
GN(from P.C.B)

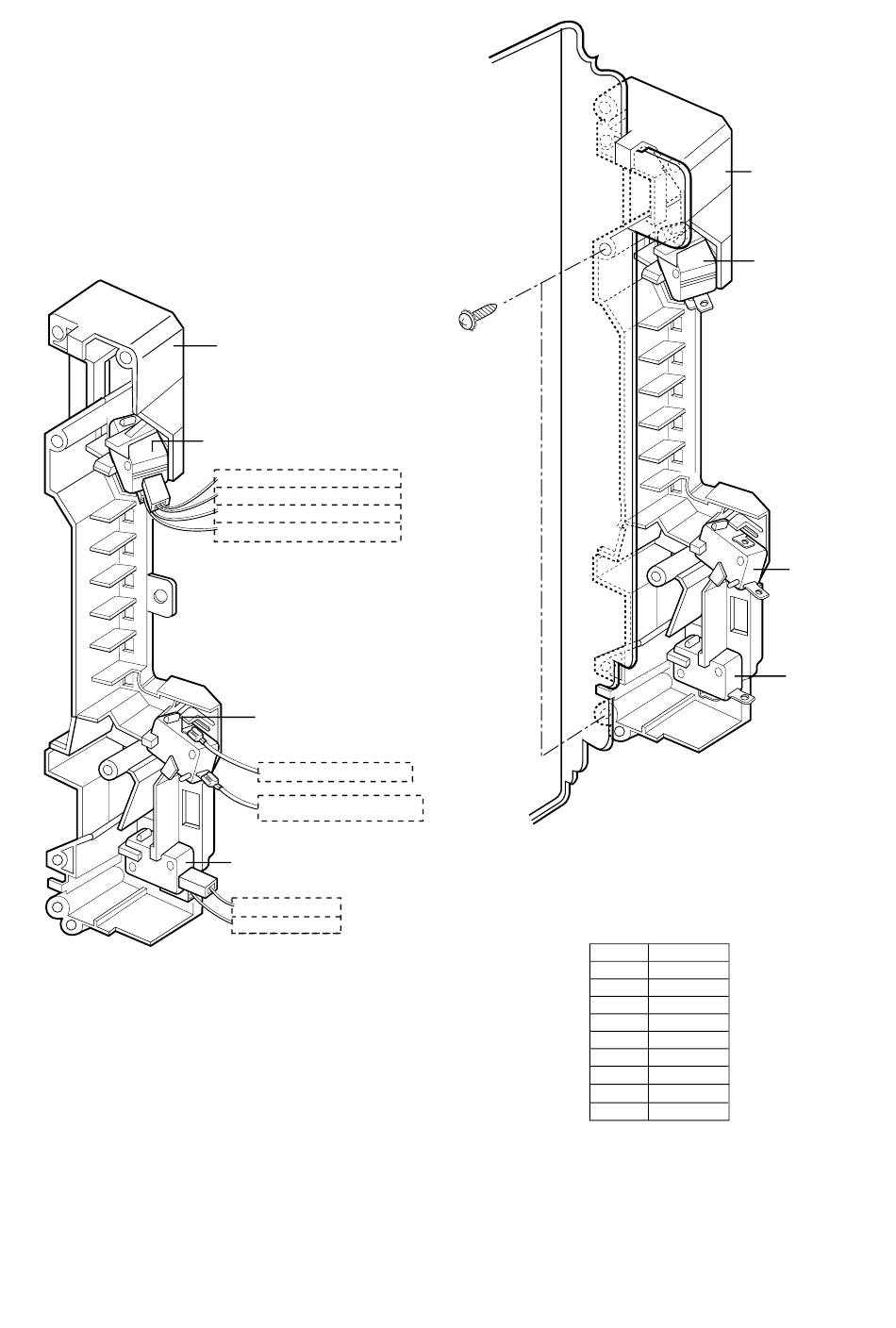

Figure 9
WIRE COLOR
SYMBOL
WH
BK
BR
RD
BL
PK
GY
GN
N.P.
7-7
Latch Board
Primary
Interlock Switch
Interlock
Monitor Switch
Secondary
Interlock Switch
Figure 10
COLOR
WHITE
BLACK
BROWN
RED
BLUE
PINK
GREY
GREEN
Not Provided
