B. REMOVING OVEN FROM WALL
(2 PERSONS REQUIRED)
Oven is hooked on metal tabs at bottom of wall
mounting plate and fastened to cabinet by (3) top
cabinet bolts.
CAUTION: Oven weights 77 lbs. Requires 2
persons for removal
1. Disconnect Power Cord, Top exhausted models
disconnect duct and remove damper assembly.
2. Remove (3) top cabinet bolts while supporting unit.
3. Lift off back hooks and pull unit forward slowly
providing adequate support to prevent dropping unit
during removal.
Door
Vent Grille

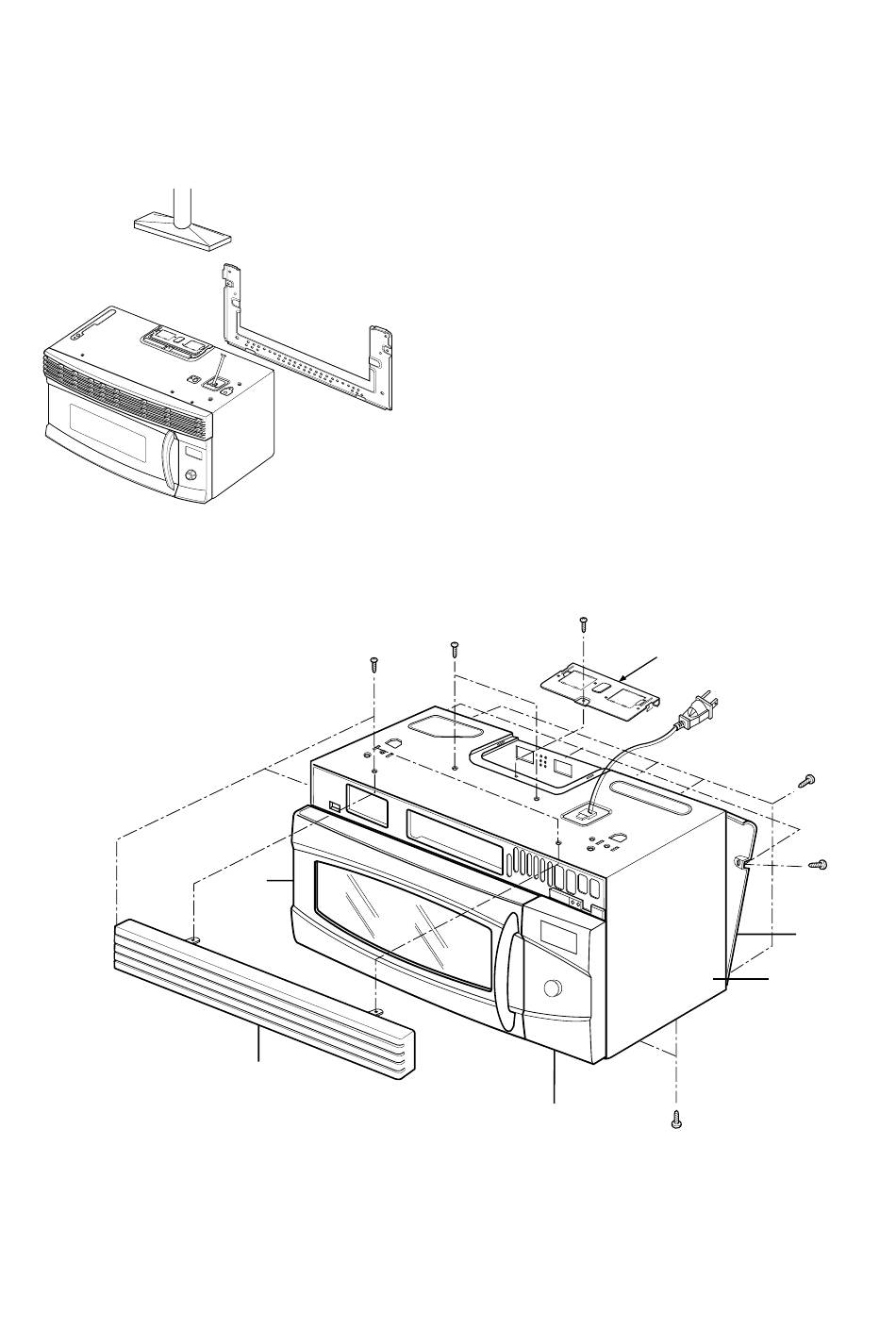

C. REMOVING THE OUT CASE(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the out case.
(2) Remove two screws securing it to the air duct.
(3) Remove the base plate by removing four screws
securing it to the out case. Remove the Mount,
All from the out case by removing two screws
securing it to the out case.
(4) Remove four screws from the rear section.
(5) Remove the outcase with pushing it back.
(6) Remove the outcase with disconnecting power
cord connector.
Controller
Figure 8
7-6
Mount,All
(1 or 2 screws)
Out Case
(3 screws)
Mounting
Plate
