Edisons CZ-70 Owner's Manual

CZ-70 Owner's manual
Bill of Materials (BOM)
QYT Par t No
NO Name
1 Power cord 1 CZ 7001
2 Water tank 1 CZ 7002
3 Spray lance 1 CZ 7003
4 Gasket 1 CZ 7004
5 Spray nozzle 1 CZ 7005
6 Straight head gun 1 CZ 7006
7 Spray gun(Ball valve) 1 CZ 7007
8 Output hose 1 CZ 7008
9 Ratchet strap 2 CZ 7009
10 Drain cap gasket 1 CZ 7010
11 Drain cap 1 CZ 7011
12 Inner filter 1 CZ 7012
13 Snap ring 1 CZ 7013
Troubleshooting Guide
Problem Possible reason
Bad power connections
Short in wires
Pump will not
Motor hooked to battery
turn on
incorrectly
Problem with pressure switch
Nozzle clogged
No water out from
Low water or Air in hose
nozzle, Low
pressure or Pump
W o r n i n t a k e h o s e
does not run
Clogged inner filter
stably
Worn spray gun or Nozzle
clogged
Clogged suction hose
Clogged inner filter
Low flow
System leaks
Connections not fully engaged
O-ring not in right position
Water leakage
Worn O-ring
3
QYT
NO Name Par t No
14 Suction hose
1 CZ 7014
15 Gasket 1 CZ 7015
16 Brass fitting
2 CZ 7016
17 Screw
2 CZ 7017
18
O-ring 2 CZ 7018
19 Pump 1
CZ 7019
20 Gasket
4 CZ 7020
21
Screw 4 CZ 7021
22 Output hose (short) 1
CZ 7022
Screw
23
2 CZ 7023
24 Hose clamp
1 CZ 7024
Tank lid
25 1 CZ 7025
Lid gasket
26
1 CZ 7026
Solution
Check battery connections
Check wires
Ensure red battery clamp to the
positive(+) terminal of the battery
correct wiring, then remove pump
head and tighten offset bearing.
Replace pressure switch
Clean nozzle
Fill water tank or Purge air
from system
Replace intake hose
Clean inner filter
Replace spray gun or
Clean nozzle
Remove residues
Clean inner filter
Tighten leaking hose clamps
or fittings
Tighten hose clamps or fittings
Check O-ring
Replace O-ring

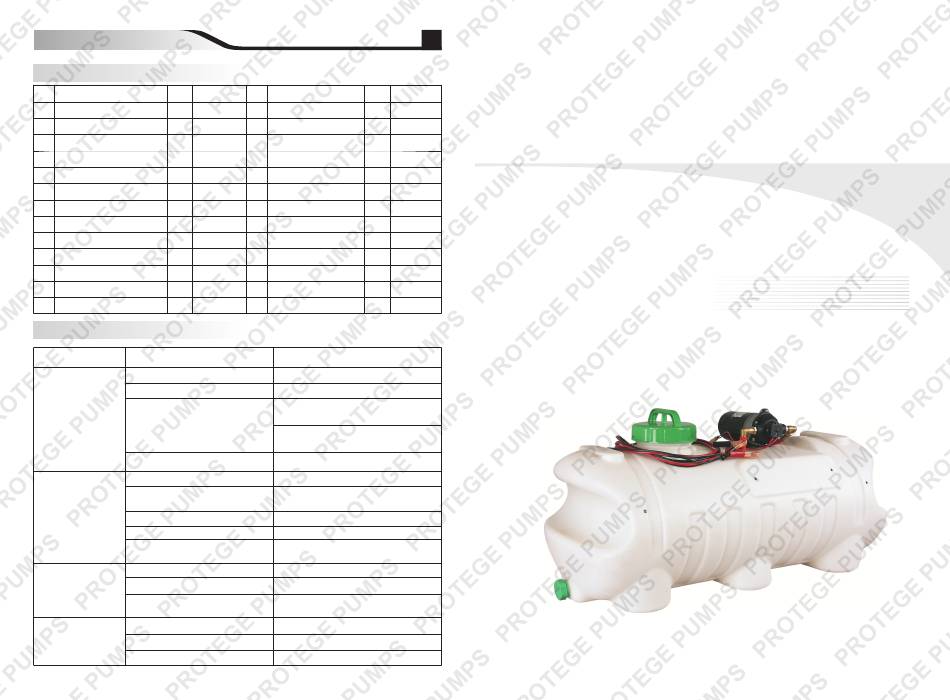

12V DC Electric Sprayer 70L
Owner's manual
CZ-70
