Summary of Contents for TRENDnet TEG-S16G

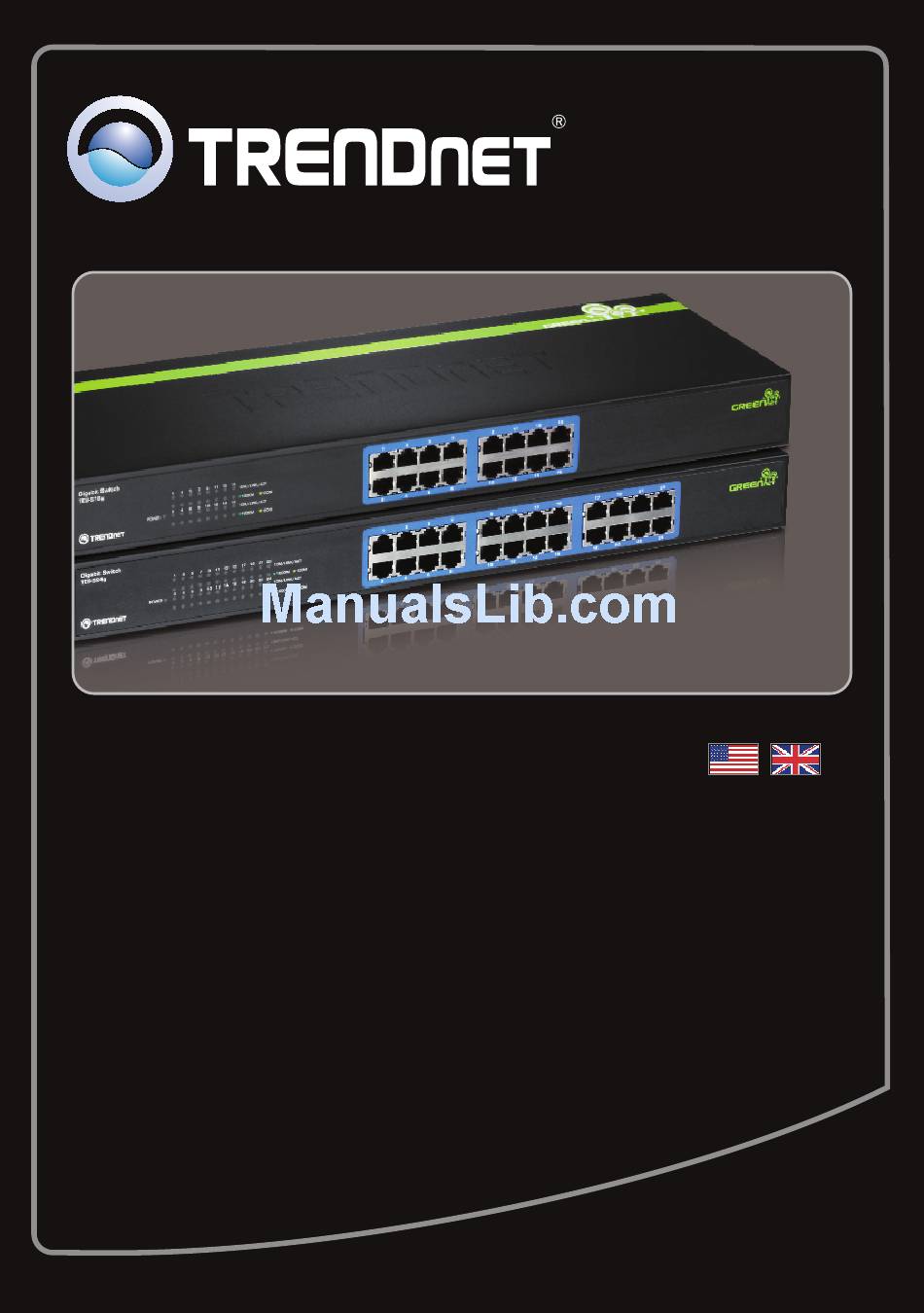

- Page 1 Quick Installation Guide TEG-S16g TEG-S24g 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. LEDs Technical Specifications Troubleshooting Version 01.12.2011... -
Page 3: English
Ÿ The surface must support at least 2.3Kg (5 lbs.) for the Switch Ÿ The power outlet should be within 1.8 meters (6 feet) of the switch Ÿ Make sure that there is proper heat dissipation and adequate ventilation around the Switch Ÿ Do not place heavy objects on the Switch... -
Page 4: Hardware Installation
1. Connect the Power Cord to the TEG-S16g/TEG-S24g and then to a power outlet. 2. Connect a CAT-5e or CAT-6 RJ-45 network cable from the computer to an available Ethernet port on the TEG-S16g/TEG-S24g. 3. Move the power switch to the on position. -
Page 5: Leds
Green: Power is on Not Illuminated: Power is off 10M/LINK/ACT Green (Solid): Link to another device Green (Blinking): Activity is occurring from the link Not Illuminated: Nothing is detected on the port 100M/1000M Green: Connection for the port is 2000Mbps (Full) -
Page 6: Technical Specifications
Standards IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control Ÿ Ethernet: Cat. 5 up to 100m Ÿ Fast Ethernet: Cat. 5 and 5e up to 100m Network Media Ÿ Gigabit Ethernet: Cat. 5, 5e, 6, up to 100m Ÿ Ethernet: 10Mbps/20Mbps (half/full-duplex) Ÿ... -
Page 7: Troubleshooting
4. Verify that you have file sharing enabled. Please contact your Operating System support for more information. 4. After I connect my PCs to the Switch, I can only get onto the Internet from one computer. The Switch was not designed to share Internet between multiple computers. You need to get an Internet router such as the TEW-652BRP. - Page 8 If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty continues from the original date of purchase.
- Page 9 THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE. Governing Law: This Limited Warranty shall be governed by the laws of the state of California. Some TRENDnet products include software code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License...
- Page 12 Copyright ©2011, All Rights Reserved. TRENDnet.
