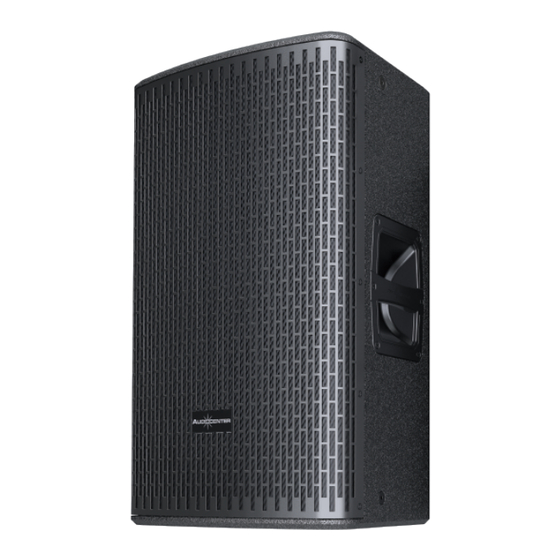

- Page 1 User’s Manual GTA SERIES Active DSP-controlled Loudspeaker...
-
Page 2: Table Of Contents
MANUAL OF GTA Safety precautions Product Introduction GTA Technical Features Presets for GTA series GTA back panel control and functions Product Application Sample of GTA series Dimension of GTA series Installation guidance for GTA series GTA series specification Trouble Shooting... -
Page 3: Safety Precautions
MANUAL OF GTA Thank you for purchasing GTA series full range active speaker system from Audiocenter. They have integrated technologies of switch mode power supply. big power digital amplifier and DSP control as well as speakers made of new materials. It is the result of years of R&D effort. - Page 4 MANUAL OF GTA When any of the following situations occurs, please cut the power immediately, and pull out the power plug from the socket, and ask qualified Audiocenter maintenance worker to repair. -Wear or damage of the power cable or plug.
-
Page 5: Gta Technical Features
MANUAL OF GTA U horizontal bracket Joint bracket Flightcase Cover bag Stand Coupling bar GTA Technical Features... -
Page 6: Presets For Gta Series
Speech preset (only available for GT508A and GT510A) LF BOOST Preset (only available for GT512A and GT515A) Ideal for DJ´s and Club application, giving an extra boost on Low frequency. The perfect match to use together with Audiocenter Sub, getting a proper phase alignment. -
Page 7: Gta Back Panel Control And Functions
MANUAL OF GTA GTA back panel control and function When detecting channel has input signal, the LED is on. The LED turns on when output limiter is activated. If the output voltage of the amplifier exceeds the maximum value, output limiter will be activated damping the output signal of the amplifier. PROTECT Indicator FRONT LED button switch(LINE B) According to the level of the input signal set the LINE/MIC switch to LINE or MIC.For low-leve... - Page 8 MANUAL OF GTA PRESET choosing button For GTA series there are 3 presets available for the users choosing according to different sound performance needed in different applications. Users can choose the optimal sound performance via buttons. Use the GAIN A knob to control the gain of the input signal on MIC/LINEA(LINEIN).This control can adjust the sensitivity to control the amount of semaphore sent to the power amplifierand then to the speakersubassembly.
-
Page 9: Product Application Sample Of Gta Series
MANUAL OF GTA Product Application Sample of GTA series Below is the basic system application with 2pcs of GTA series full range speakers. This system is ideal for small size touring performance restaurant and rehearsal etc.…. Below is the basic system with 2pcs of GTA series full range speakers and 2pcs of subwoofers with coupling bars. - Page 10 MANUAL OF GTA Below is the system for medium scale application with pcs of GTA series full range speakers and pcs of subwoofers. This system is ideal for medium size touring performance, church, etc.. The following introduces the use of GT512A or GT515A speakers for stage monitoring Below is the application of GTA Series speakers with one microphone.
-
Page 11: Dimension Of Gta Series
MANUAL OF GTA Dimension of GTA series (WxHxD) GT508A (WxHxD) GT510A GT512A (WxHxD) GT515A (WxHxD) -
Page 12: Installation Guidance For Gta Series
MANUAL OF GTA Installation guidance for GTA series... -
Page 13: Gta Series Specification
MANUAL OF GTA MANUAL OF GTA GTA series specification 42Hz-20kHz 45Hz-20kHz 50Hz-20kHz 60Hz-20kHz 100-130V~ or 220-240V~ (+-10%,50-60Hz) 48kHz LF BOOST 20Hz-20kHz(±0.5dB) 15.0kg 13.0kg 24.0kg 21.0kg... -
Page 14: Trouble Shooting
MANUAL OF GTA...
