Audiocenter Artist T4L User Manual

Hanger
202mm
Bracket for
Artist T4L
62mm
255mm
Bracket for
Artist T24L
62mm
Holder
195mm
90mm
T4L Holder
248.5mm
T24L Holder
90mm
Manual for Artist T4L/T24L
Trouble shooting
200mm
Problems
No sound

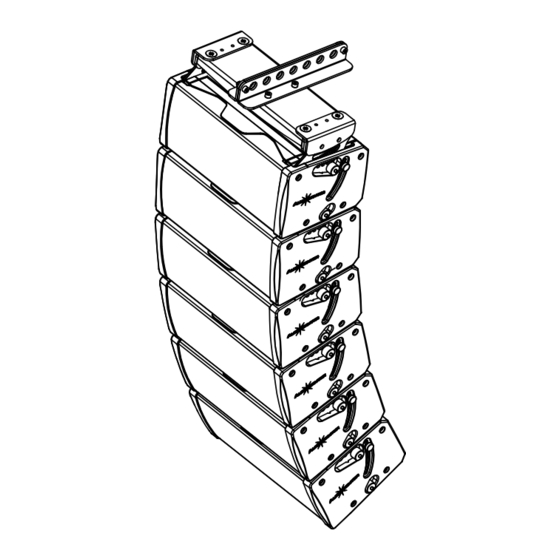

Flying mount:
Sound feedback
Sound discrepancy
from different
speakers
Sound distortion
Please contact Audiocenter or its distributors if the problem is still there.
Artist T4L\T24L Parameters
Product Parameters
Drivers
Frequency Response
Horizontal coverage
Pole mount:
Vertical Coverage
Powe(AES)
Max SPL
Impedance
Cabinet Materials
Color
W*D*H
Net Weight
http://www.audiocenter.net/E-mail:sales@ac-pro.net
Manual for Artist T4L/T24L
Analysis Solution
Cable not connected
Check and correct the connection of
correctly Or too small input socket
Increase the output gain
gain
Microphone stays too
Keep the speakers away from the active
close to the speaker
area of microphone
The sound is over
Lower the output gain
amplified
Different gain for
Set the gain of each audio in the
different speakers same position
Input signal is too loud Lower the input
Output gain is to high Lower the out gain
Line Array Speakers
Artist T4L Artist T24L
LF 1x4" LF 2x4"
HF 2x4" HF 2x1"
100Hz-20kHz 95Hz-20kHz
100 100
40 40
70W 110W
117.5dB 119dB
16Ω 8Ω
High grade wood+ plastic
Black/White
217*120*155mm 270*120*155mm
2.8kg 3.5kg
User's Manual
Artist T4L/T24L
SPEAKERS
Revision A0-2021-07
