Sealey VS0204.V2 Instructions

thank you for purchasing a Sealey product. manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PleAse ReAD THese INsTRucTIONs cARefully. NOTe THe sAfe OPeRATIONAl ReQuIRemeNTs,
WARNINGs AND cAuTIONs. use THIs PRODucT cORRecTly, AND WITH cARe fOR THe PuRPOse fOR WHIcH IT Is
INTeNDeD. fAIluRe TO DO sO mAy cAuse DAmAGe AND/OR PeRsONAl INJuRy AND WIll INvAlIDATe THe
WARRANTy. PleAse KeeP INsTRucTIONs sAfe fOR fuTuRe use.
1. sAfeTy INsTRucTIONs
 Keep this product in good working order and condition, take immediate action to repair or replace
damaged parts.
 Use approved parts only. Unapproved parts may be dangerous and will invalidate the warranty.
 Keep children and unauthorised persons away from the work area.
 Keep work area clean and tidy and free from unrelated materials.
 Ensure the work area has adequate lighting.
 DO NOT use the kit to perform a task for which it is not designed.
 DO NOT allow untrained persons to use the kit.
 DO NOT use when tired or under the influence of drugs, alcohol or intoxicating medication.
 After use, clean equipment and store in a cool, dry, childproof area.
 Dispose of waste liquids in accordance with local authority regulations.
 Always read and comply with the warnings on the brake fluid container.
 Wear eye protection and keep skin contact to a minimum. If brake fluid enters eyes rinse with
plenty of water and seek medical advice. If swallowed seek medical advice immediately.
 WARNING! Only use new Brake Fluid, used Brake Fluid or other fluids will contaminate the
system and possible brake system failure may result.
 WARNING! DO NOT pollute the environment by allowing uncontrolled discharge of fluids.
 WARNING! Brake fluid is flammable - keep away from sources of ignition, including hot surfaces
e.g. exhaust manifold.
 WARNING! Brake fluid will damage paintwork. Any spillage should be flushed with water immediately.
2. INTRODucTION & sPecIfIcATION
the VS0204.V2 Pneumatic Pressure Bleeder enables a simple, one-man operation brake and clutch bleeding system suitable for the
professional workshop. low pressure tank (20 - 40psi) can be pre-charged with compressed air, making the unit fully portable. large reservoir
means no risk of running dry during bleeding process or complete fluid change. Suitable for ABS systems. Supplied with a range of European,
Japanese and US vehicle adaptors.
model No: . . . . . . . . . . . . . . . . . . . . . . . . . . VS0204.V2
Air Supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 - 40psi
Air consumption:. . . . . . . . . . . . . . . . . . . . . . . . . . 4.5cfm
Inlet size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"BSP
tank capacity:. . . . . . . . . . . . . . . . . . . . . . . . . . . 6.0 litres
Accessories
2 x . . . . . . . . . . . . . . . . . . . . . . . . . . 1 litre Bleed Bottles
8 x . . . . . . . . . . . . . . . . . . . . . . . manufacturer Adaptors
3 x . . . . . . . . . . . . . . . . . . . . . . . . . . Universal Adaptors
2 x . . . . . . . . . . . . . . . . . . threaded cable & Wing Nuts
2 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . clamp Brackets
1 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . rubber Squeeze
1 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . carry case
3. AIR suPPly cONNecTION

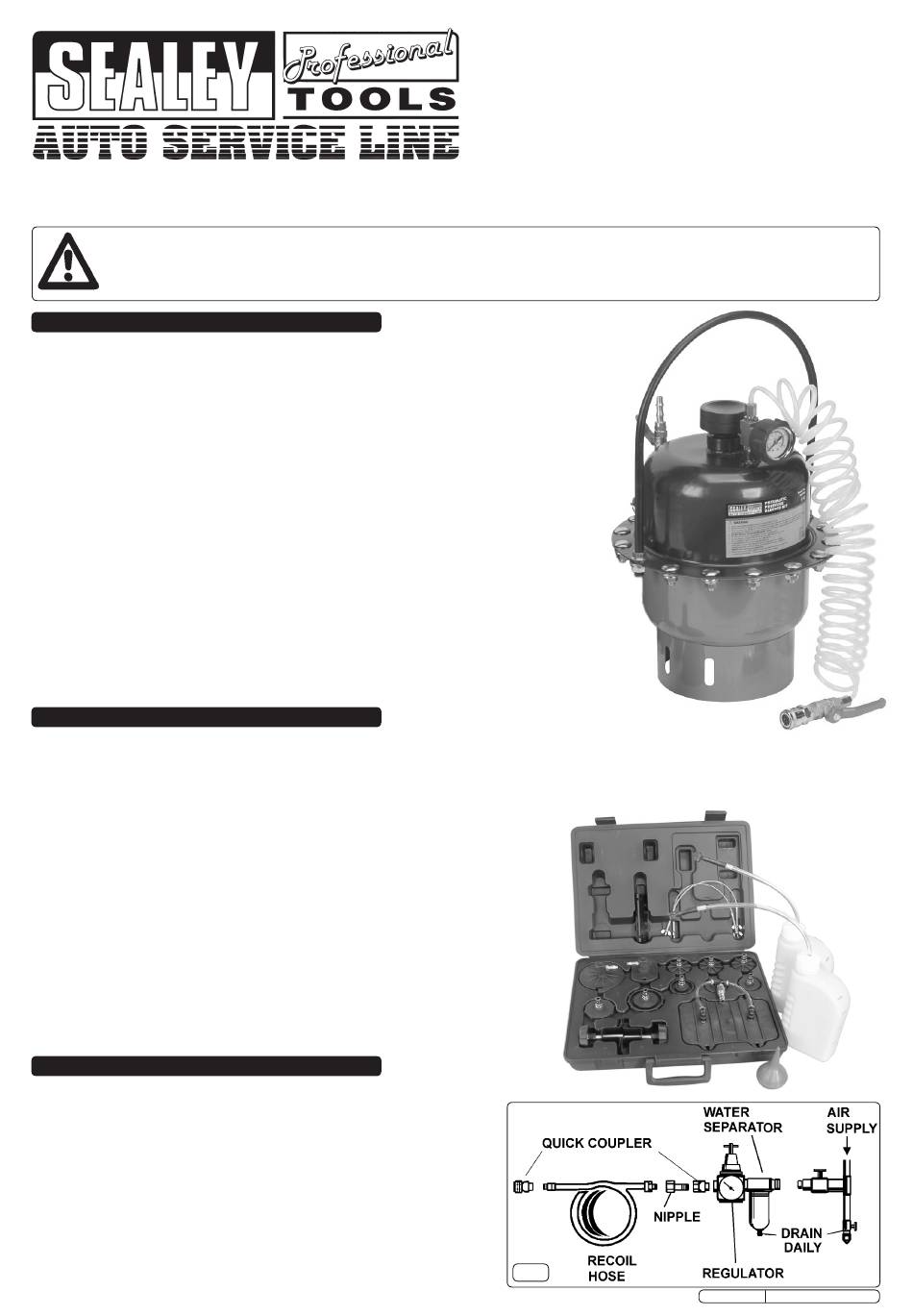

Recommended hook up is shown in fig.1.
3.1. You will require an air pressure of 40psi and air flow according to
specification.
3.2. Ensure that the air supply is clean and does not exceed 40psi. too high
a pressure and/or unclean air may damage the diaphragm and will
shorten the product life due to excessive wear and may cause damage
and/or personal injury.
3.3. Drain the air tank daily. Water in the air line will damage the unit and
invalidate your warranty.
3.4. The minimum hose diameter should be 1/4" I.D and fittings must have
the same internal dimensions.
3.5. Keep hose away from Heat, oil and sharp edges. check hoses for wear
and make certain that all connections are secure.
INStrUctIONS FOr:
PNeumATIc PRessuRe
bleeDeR KIT
vs0204.v2
mODEl:
fig.1
VS0204.V2 Issue No: 2 - 22/03/10
