Sealey VS0204.V3 Instructions

thank you for purchasing a sealey product. manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PleAse ReAD THese INsTRucTIONs cARefully. NOTe THe sAfe OPeRATIONAl ReQuIRemeNTs,
WARNINGs AND cAuTIONs. use THIs PRODucT cORRecTly, AND WITH cARe fOR THe PuRPOse fOR WHIcH IT Is
INTeNDeD. fAIluRe TO DO sO mAy cAuse DAmAGe AND/OR PeRsONAl INJuRy AND WIll INvAlIDATe THe
WARRANTy. PleAse KeeP INsTRucTIONs sAfe fOR fuTuRe use.
1. sAfeTy INsTRucTIONs
 Keep this product in good working order and condition, take
immediate action to repair or replace damaged parts.
 Use approved parts only. Unapproved parts may be dangerous
and will invalidate the warranty.
 Keep children and unauthorised persons away from the work area.
 Keep work area clean and tidy and free from unrelated materials.
 Ensure the work area has adequate lighting.
 DO NOT use the kit to perform a task for which it is not designed.
 DO NOT allow untrained persons to use the kit.
 DO NOT use when tired or under the influence of drugs, alcohol
or intoxicating medication.
 After use, clean equipment and store in a cool, dry, childproof area.
 Dispose of waste liquids in accordance with local authority
regulations.
 Always read and comply with the warnings on the brake fluid
container.
 Wear eye protection and keep skin contact to a minimum. If brake
fluid enters eyes rinse with plenty of water and seek medical
advice. If swallowed seek medical advice immediately.
 WARNING! Only use new Brake Fluid, used Brake Fluid or other
fluids will contaminate the system and possible brake system
failure may result.
 WARNING! DO NOT pollute the environment by allowing
uncontrolled discharge of fluids.
 WARNING! Brake fluid is flammable - keep away from sources of
ignition, including hot surfaces e.g. exhaust manifold.
 WARNING! Brake fluid will damage paintwork. Any spillage
should be flushed with water immediately.
 WARNING! Do not allow the fluid capacity in the unit to fall
below ½ litre during the bleeding process otherwise air may
enter the system.
2. INTRODucTION & sPecIfIcATION

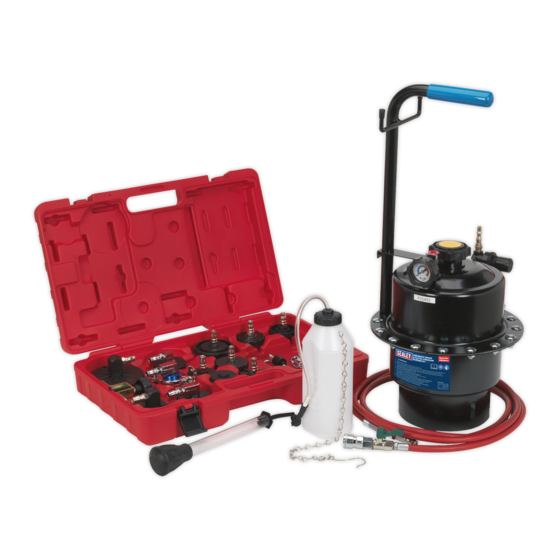

One-man pressure brake and clutch bleeding system suitable for the
professional workshop. low pressure tank (20-40psi) can be
pre-charged with compressed air - making the unit fully portable.
large reservoir means reduced risk of running the system dry during
bleeding process or complete fluid change. suitable for use on ABs
systems. Features a long delivery hose for operation with a low level
ramp and long reach handle for easy mobility. supplied with a range
of European, Japanese and Us vehicle adaptors.
model No: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Vs0204.V3
Air supply: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 - 40psi
Air consumption:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5cfm
Inlet size: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4"BsP
tank capacity:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.0 litres
Hose lenght: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3mtr
Accessories
2 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 litre Bleed Bottles
8 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . manufacturer Adaptors
3 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Universal Adaptors
2 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . threaded cable & Wing nuts
2 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . clamp Brackets
1 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . rubber squeeze
1 x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . carry case
I
nstrUctIOns FOr:
PNeumATIc PRessuRe
bleeDeR KIT
mODEl no:
Original Language Version
vs0204.v3
Vs0204.V3
fig.1
Issue no: 1 - 26/10/10
