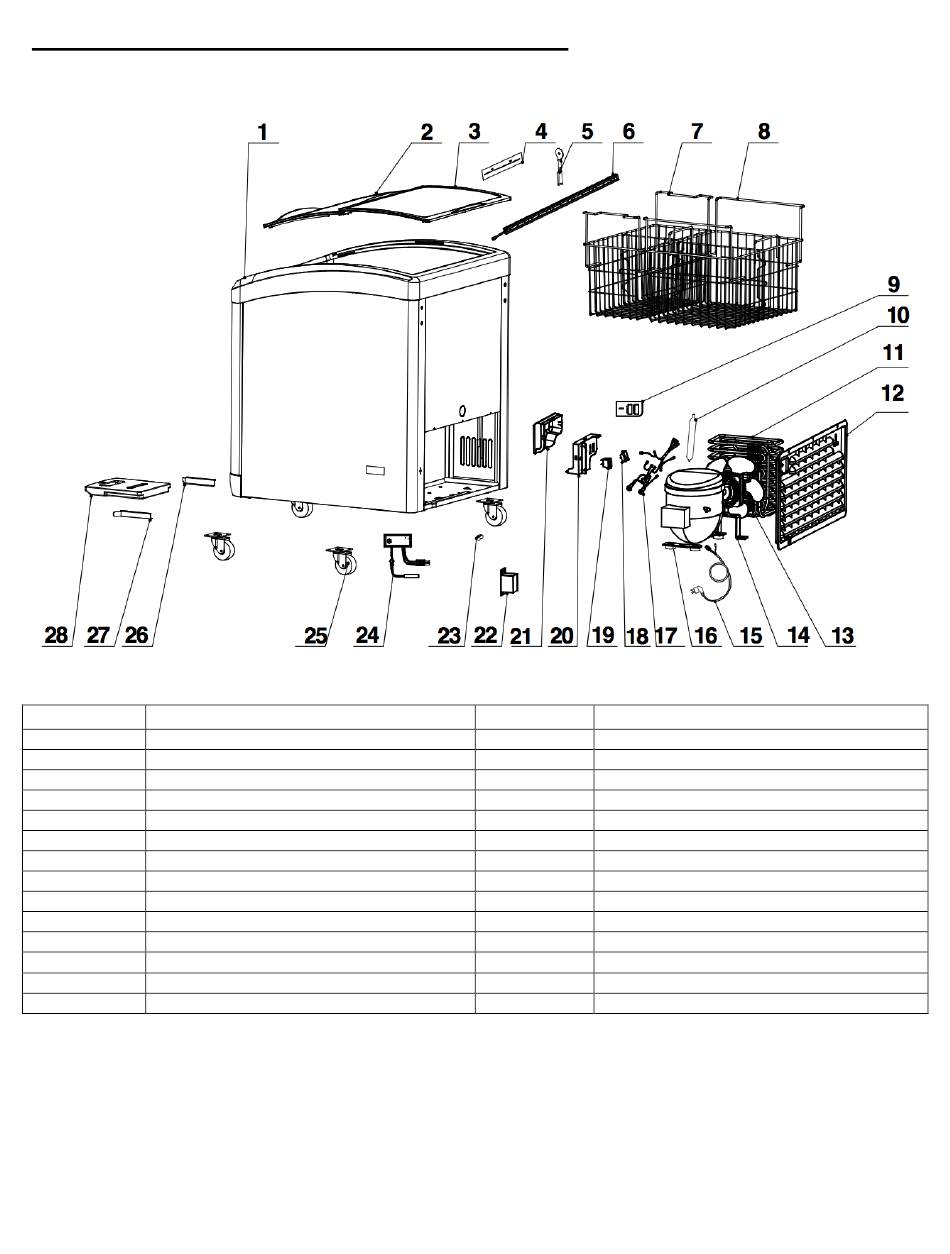

PARTS DIAGRAM:
DDFC6
Number
1 Cabinet
2 Down Glass Door
3 Up Glass Door
4 Max Load Line
5 Lock
6 LED Light
7 Smaller Basket
8 Bigger Basket
9 Control Panel
10 Filter Dryer
11 External Condenser
12 Cover
13 Fan
14 Fan Bracket
Description Number
15 Power Cable
16 Compressor
17 Control Bracket Connection Wire
18 LED Switch
19 Red Light
20 Control Bracket
21 Control Bracket Cover
22 Transformer
23 Double Orifice Press Block
24 Thermometer
25 Caster
26 Left Rail for Water Pan
27 Right Rail for Water Pan
28 Water Disposal Pan
7
