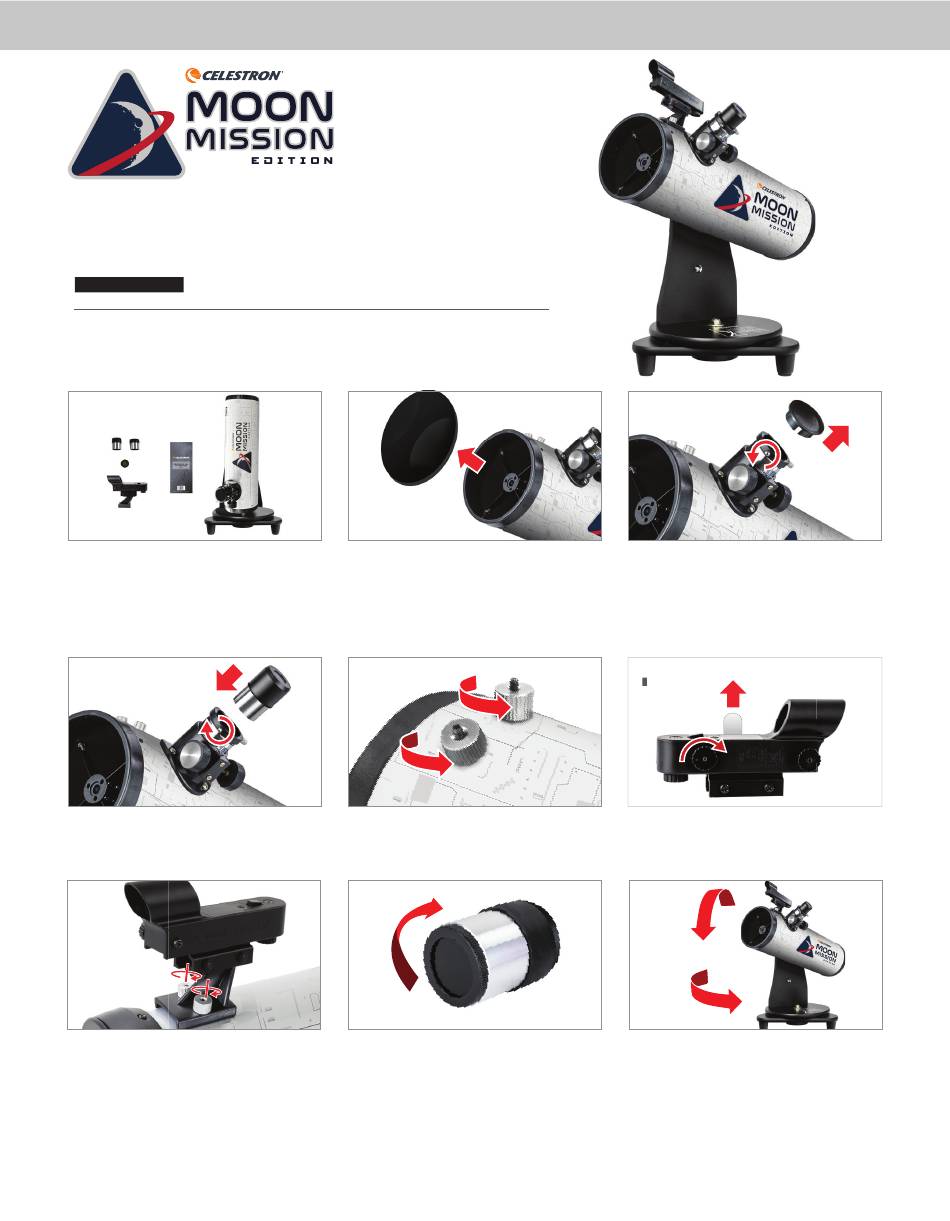

Celestron MOON MISSION 100mm Quick Setup Manual

100
TABLETOP DOBSONIAN
T E L E S C O P E
mm
Quick Setup Guide
ENGLISH
1 1
Your telescope is ready to use right out of the box. It ships
with two eyepieces: one 20mm (20x magnifi cation) and
one 8mm (50x magnifi cation). Inside the box, you'll also
fi nd a StarPointer red dot fi nderscope, a Moon fi lter, and
TM
a Moon map.
4 4
Once the eyepiece is seated correctly, tighten the
thumbscrews to secure it in place.
7 7
Place the fi nderscope over the threaded posts on the
optical tube and secure the fi nderscope in place by
tightening the knurled nuts from step 5.
Item #22018
2 2
Setting up the telescope is a breeze. First, remove the lens
cap from your optical tube.
5 5
Remove the knurled nuts on the threaded posts near
the focuser. Set them in a safe place to be used in a
later step.
8 8
To use the Moon fi lter, thread it onto the bottom of
the eyepiece and before inserting the eyepiece into the
eyepiece tube.
3 3
Next, remove the eyepiece cap and insert the 20mm
eyepiece into the eyepiece tube. If necessary, back the
thumbscrews out, so the threads are not impeding the
insertion of the eyepiece.
6 6 6
Remove the plastic tab from the fi nderscope battery
compartment, and turn the power knob to the "ON"
position.
9 9
The Moon Mission Tabletop 100 telescope is a "push-
to" telescope, that comes assembled on a simple alt-az
mount. "Alt" is short for altitude (vertical adjustment)
and "Az" is short for azimuth (horizontal adjustment).
Moving the scope to capture a target is simple. Just
apply pressure in the direction you want to go.
E N G L I S H | 1
