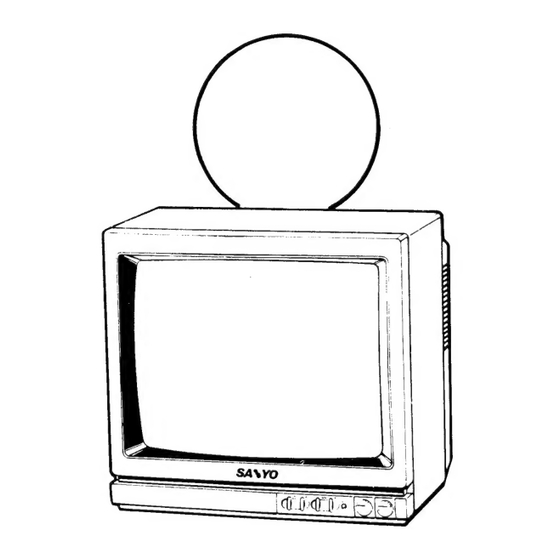

Sanyo CBP3012 Service Manual

NYO
( United kingdom )
Specifications
Power Supply ---------: AC 240V 50Hz
Power Consumption ----- 42 Watts
Television System ----- System |
Colour Reception System PAL
Channel Coverage .----- UHF: 21~69
Video IF ---------es-e- 39. 5MHz
Sound IF --------eee- 33.5MHz
Aerial !nput Impedance /75{
Picture Tube ---------- 34cm Diagonal, 90 Degree
Audio Output ----------: 1.5 Watts
Dimensions --------+--- 362(W) = 325(H) =< 377(D)mm
Weight -------- ee eee 10 Kg
@ Specifications subject to change without notice.
SK3PZ4Y4
Service
Ref .No. CBP3012-00
PRODUCT CODE
113 026 02
ORIGINAL VERSION
Chassis Series A3-Al1l4
rating sheet on the cabinet backcover.
——__—____—_—_—_—- Note
| This
TV receiver
will not work
properly in
| a foreign
country
where
the television
transmission
system
and power
source
differ from the design specifications.
Refer
to the specifications
for the
design specifications.
