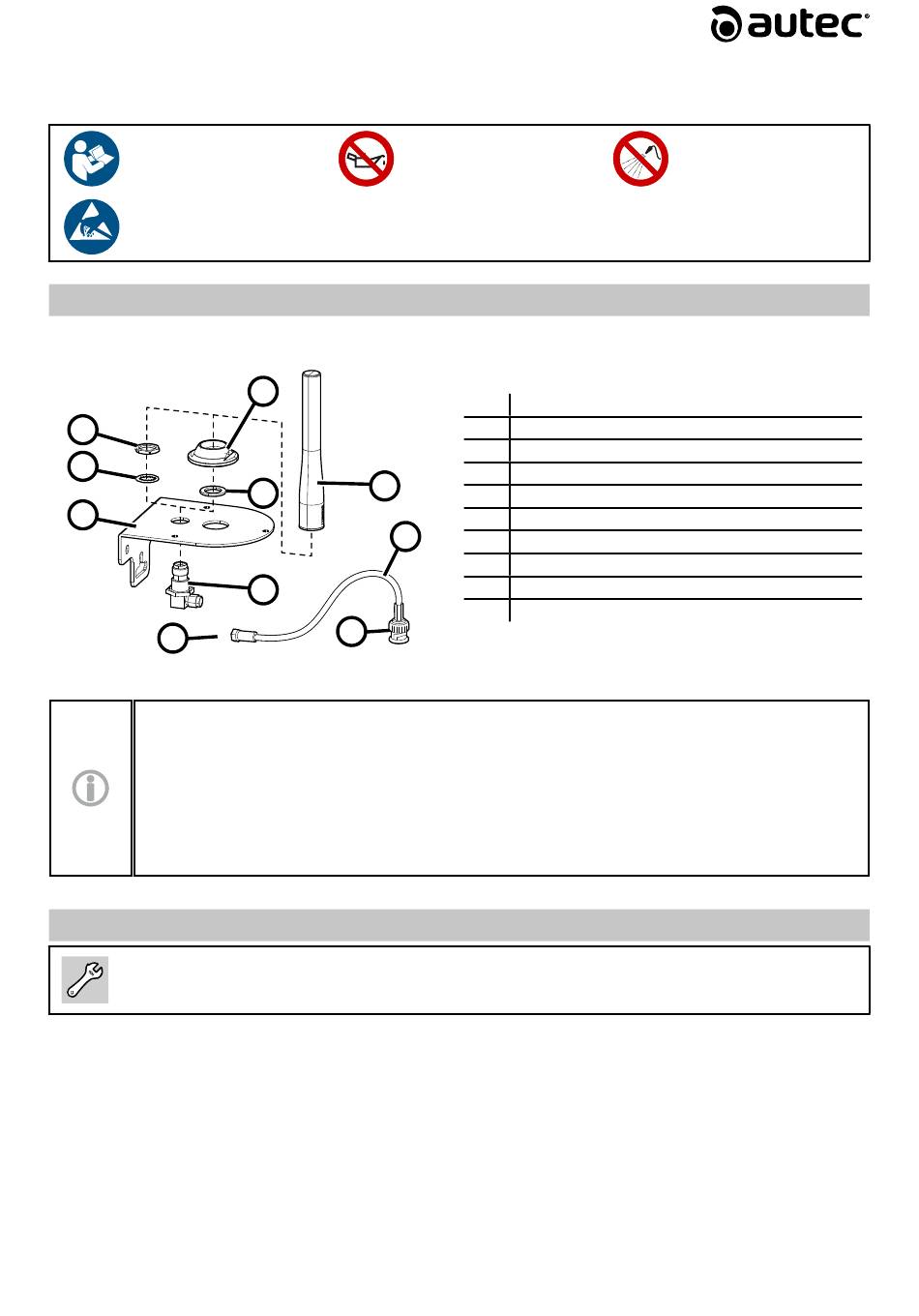

RE304_eng-01
ANT042 dual band antenna with BNC cable adapter
Read the Instruction Manual
and the Technical Data Sheet
and keep it at hand.
Always wear a grounded wrist
strap
A
B
C
H
Place the antenna as shown in the Radio Remote Control's Instruction Manual.
Periodically make sure that the FME connector [H], the BNC connector [K] and the stylus [G] are properly tightened.
The thickness of the metal surface where the antenna will be mounted shall not exceed 3.5mm.
Key
© 2021 Autec Srl
Do NOT use oil and/or
lubricants
Description
D
G
E
J
F
K
Tools and consumable materials
A
Nut (Do not use)
B
Washer (Do not use)
C
Bracket
D
Ring nut
E
Gasket
F
TNC-FME adapter
G
Antenna
H
FME connector
J
Antenna cable
K
BNC connector
Do NOT use water
1 / 4
Advertisement
Related Manuals for AUTEC ANT042
Summary of Contents for AUTEC ANT042
- Page 1 RE304_eng-01 ANT042 dual band antenna with BNC cable adapter Read the Instruction Manual Do NOT use oil and/or and the Technical Data Sheet Do NOT use water lubricants and keep it at hand. Always wear a grounded wrist strap Description...
- Page 2 The cable [J] has been approved at the length at which it is supplied: never shorten or cut it. Firmly grab the BNC connector's [K] ring nut. Avoid grabbing the antenna cable [J], in order not to damage the cable itself. 2 / 4 © 2021 Autec Srl...
- Page 3 Grab the antenna cable near the BNC connector [K] and gently turn it anti-clockwise, to make sure that the connection will not loosen; if that is not the case, repeat the previous step. Disassembly Firmly grab the BNC connector's [K] ring nut, gently press downwards Unscrew the FME connector [H] from the TNC-FME adapter [F].
- Page 4 Remove the TNC-FME adapter [F].
