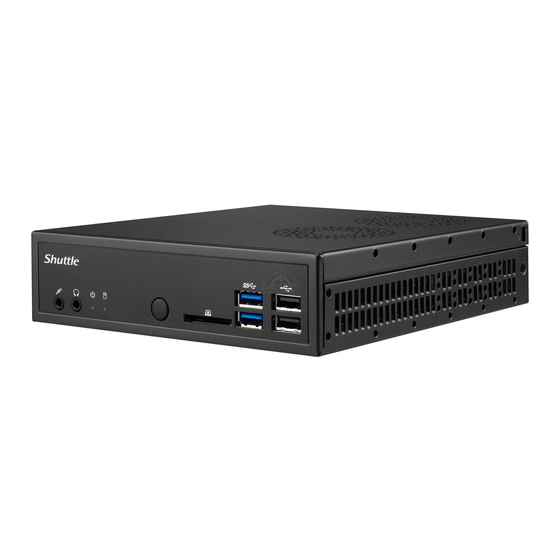

- Page 1 XPC BIOS User Guide For the : DH170 Series...
-
Page 2: General Notice
For continuing product improve- ment, Shuttle® Inc. reserves the right to revise the manual or make changes to the speci- fications of this product at any time without notice and obligation to any person or entity regarding such change. -
Page 3: Safety Information
Read the following precautions before setting up a Shuttle XPC. CAUTION Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle. Disposal of used batteries according to the manufacturer's instructions. Laser compliance statement The optical disc drive in this server is a laser product. -
Page 4: Table Of Contents
TABLE OF CONTENTS Driver and Software Installation............1 Motherboard Driver DVD ............1 User Manuals................2 Appendix...................3 Starting BIOS ................3 BIOS Setup Menu ..............3 Main Setup ................5 Advanced ................6 Power Management Configuration ......7 Hardware Health Configuration ........8 CPU Configuration ............9 SATA Configuration ...........11 USB Configuration .............12 OnBoard Device Configuration ........13 Security ................15... -
Page 5: Driver And Software Installation
Driver and Software Installation Motherboard Driver DVD The DVD contents attached in DH170 Series motherboard are subject to change without notice. The Motherboard Driver DVD contains all the motherboard drivers necessary to ® optimize the performance of this Shuttle Xvision in a Windows OS. -
Page 6: User Manuals
User Manuals Install Adobe Reader 9.5 MotherBoard Manual Quick Guide... -
Page 7: Appendix
Appendix Starting BIOS AMIBIOS has been integrated into many motherboards for over a decade. In the past, people often referred to the AMIBIOS setup menu as BIOS, BIOS setup, or CMOS setup. American Megatrends refers to this setup as BIOS. Specifically, it is the name of the AMIBIOS8 BIOS setup utility. - Page 8 AMIBIOS8 has default text messages built into it. The motherboard manufacture retains the option to include, leave out, or change any of these text messages. They can also add their own text messages. Because of this, many screen shots in this manual are different from your BIOS setup screen. The BIOS setup/utility uses a key-based navigation system called hot keys.
-
Page 9: Main Setup
Main Setup When you first enter the BIOS Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below. -
Page 10: Advanced
Advanced Select the Advanced tab from the BIOS setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item. You can display an Advanced BIOS Setup option by highlighting it using the <Arrow>... -
Page 11: Power Management Configuration
Power Management Configuration Wake Up By USB (S3) This item allows you to enable or disable system wake up by USB (S3). The choice: Enabled , Disabled. EuP Function This item allows you to enable or disable system EuP function in S4/S5. ... -
Page 12: Hardware Health Configuration
Wake Up By LAN This item allows you to enable or disable system wake up by LAN. The choice: Enabled , Disabled. PowerOn by RTC Alarm When enabled, System will wake on the hr::min::sec specified. The choice: Enabled , Disabled. Hardware Health Configuration ... -
Page 13: Cpu Configuration
CPU Configuration You can use this screen to select options for the CPU Configuration Settings. Use the up and down <Arrow> keys to select an item. Use the <Plus> and <Minus> keys to change the value of the selected option. A description of the selected item appears on the right side of the screen. - Page 14 EIST ® Enable or disable Enhanced lntel SpeedStep Technology. The choice: Enabled , Disabled. Turbo Mode ® This item allows you to enable or disable lntel Turbo Boost Technology. The choice: Enabled , Disabled. The CPU Configuration setup screen varies depending on the installed processor. C State Support This item allows you to enable or disable CPU C State.
-
Page 15: Sata Configuration
SATA Configuration SATA Mode Selection This item allows you to set the SATA Mode Selection. The choice: AHCI. Hot Plug This item allows you to enable or disable Hot Plug capability. The choice: Enabled , Disabled. -
Page 16: Usb Configuration
USB Configuration ... -
Page 17: Onboard Device Configuration
OnBoard Device Configuration High Definition Audio This item allows you to enable or disable system High Definition Audio. The choice: Enabled , Disabled. Onboard I219 LAN Function This item allows you to enable or disable LAN Function. The choice: Enabled , Disabled. Onboard I211 LAN Function This item allows you to enable or disable LAN Function. - Page 18 IGD Memory Size Select Allows you to select the size of system memory used by the internal graphics device. The choice: 128MB, 256MB, 512MB. VT-d This item allows you to enable or disable VT-d. The choice: Enabled , Disabled. Serial Port Configuration Option are in its sub-menu.
-
Page 19: Security
Security Select the Security tab from the BIOS setup screen to enter the Security BIOS Setup screen. You can display an Security BIOS Setup option by highlighting it using the <Arrow> keys. All Security BIOS Setup options are described in this section. The Security Setup screen is shown below. - Page 20 Type the password and press <Enter>. The screen does not display the characters entered. Retype the password as prompted and press <Enter>. If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after BIOS completes. User Password Select Change User Password from the Security Setup menu and press <Enter>.
-
Page 21: Boot
Boot Select the Boot tab from the BIOS setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Settings Configuration, to go to the sub menu for that item. You can display an Boot BIOS Setup option by highlighting it using the <Arrow>... - Page 22 Boot from USB device This item allows you to enable or disable boot from USB device. The choice: Enabled , Disabled. Boot Mode select Choice Boot to UEFI or Legacy. The choice: UEFI, Legacy. Boot Device Priority (Boot Option #1/2/3/..) Specifies the boot sequence from the available devices.
-
Page 23: Save & Exit
Save & Exit Select the Exit tab from the BIOS setup screen to enter the Exit BIOS Setup screen. You can display an Exit BIOS Setup option by highlighting it using the <Arrow> keys. All Exit BIOS Setup options are described in this section. The Exit BIOS Setup screen is shown below.
