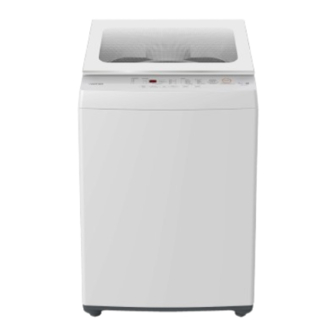

- Page 1 Fully Automatic Washing Machine OWNER’S MANUAL Model : AW-K801AT Read This Manual Please Read and follow the instructions carefully. Please Keep this owner’s manual handy for future use. 16138000014549 6348401001...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety instructions ............... INSTALLATION Product description ..............Installation area ................Unpacking the washing machine ......... Levelling the washing machine ..........Selection of tap ................Connection of inlet hose, tap and washing machine..OPERATION Preparation before washing......... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS For your safety, the information in this manual must be followed to minimize the risk of re or explosion, electric shock, or to prevent property damage, personal injury or loss of life. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision... - Page 4 SAFETY INSTRUCTIONS Washing Capacity Model Standard Water Pressure AW-K801AT 7.0kg 0.03MPa ~ 0.8MPa Explanation of the symbols: Warning! This combination of symbol and descriptive word indicates a potentially dangerous situation which may result in death or serious injuries unless it is avoided.
- Page 5 SAFETY INSTRUCTIONS Warning! The electric shock! • This washing machine is for indoor use only. • Do not put this washing machine in a humid place. • Hands should not be inserted into the rotating drum • Before doing any maintenance the unit , unplug the...
- Page 6 SAFETY INSTRUCTIONS Risk to children! • he appliance can not be used by children and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 SAFETY INSTRUCTIONS Caution Installing the product! • This washing machine is for indoor use only. • It is not intended for built-in using. • The openings must not be obstructed by a carpet. • The w ashing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 8 SAFETY INSTRUCTIONS Operating the appliance! • Before washing the clothes for the first time, the product shall be operated without clothes using tub clean as the recommended program • Flammable and explosive or toxic solvents are forbidden. Gasoline and alcohol etc. Shall not be used as detergents. Please only select the detergents suitable for washing machine, specially for top-loading fully automatic washing machines.
-
Page 9: Installation
INSTALLATION Product description lass lid Water inlet valve Softener case Drum Power cord and plug Frame Control panel Cabinet Handle Adjustable foot Drain hose Note! • ll illustrations in this manual are for reference only. lease refer to the product ,for actual appearance of the parts Accessories Inlet hose assy cabinet baseboard... -
Page 11: Levelling The Washing Machine
INSTALLATION Warning! • Do not kink protract or compress the drain hose. • Position drain hose properly otherwise improper position may result in water leakage. • If drain hose is too long, do not force it into washing machine as this will cause abnormal noises. -
Page 13: Preparation Before Washing
Powder detergent case Liquid detergent Case... -
Page 15: Control Pan
Course1 & Couse2... -
Page 18: Operation
OPERATION Washing Course Table Courses are available according to the laundry type. Only for models having these functions: Course Suitable to wash lightly- stained clothes and clothes summer. SPEED: Mid/High/Low water level selection, the tempo is soft, slow DELICATE: washing and spinning speed, for minima l wear and deformation. -
Page 19: Recommended Detergent Amount
(Level 8) (Level 6) (Level 4) (Level 2) When using softener 1. Add softener to the softener case at the top of the basket. Turn the drum away from 2. The softener automatically flow into the basket during detergent case the final rinse. -
Page 20: Maintenance
MAINTENANCE Cleaning And Care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use wet cloth to wipe it off immediately. -
Page 22: Technical Speci Cations
MAINTENANCE 0.03MPa~0.8MPa Standard Water Pressure Power Washing Dimension Rated Model Capacity Supply Weight (W*D*Hmm) Power 33kg 220-240V~,60Hz 515x525x920 400W AW-K801AT 7.0kg...
