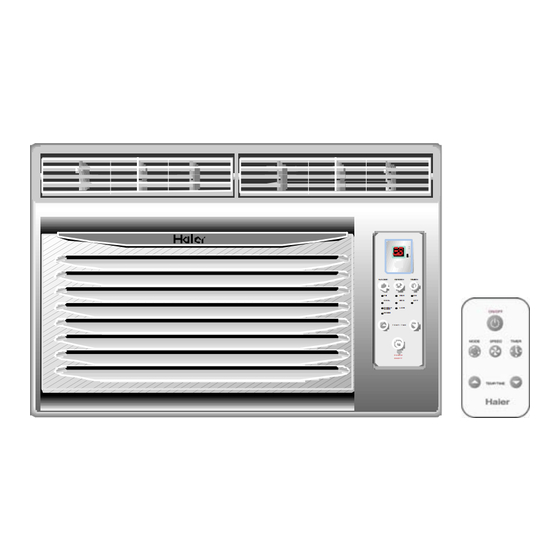

Haier ESA3087
Owner's Manual
Shop genuine replacement parts for Haier ESA3087
Find Your Haier Air Conditioner Parts - Select From 735 Models
-------- Manual continues below --------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESA3087 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Haier ESA3087

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Haier ESA3087 Owner's Manual Shop genuine replacement parts for Haier ESA3087 Find Your Haier Air Conditioner Parts - Select From 735 Models -------- Manual continues below --------...
  • Page 2 Haier air conditioner Edition: 1.0-061214 Domestic air conditioner SERVICE MANUAL Model M O D E S P E E D T I M E R F A N H I G H C O O L M E D O F F...
  • Page 3: Table Of Contents

    Haier air conditioner Edition: 1.0-061214 Content 1. Product Code Illumination and Series introduction......3 2. Specifications..................4 3. Safety and Precaution...............5 4. Warning and Cautions...............6 5. Installation and Accessory Parts............8 6. Parts and Functions.................13 7. Abnormity Diagnose.................15 8. System Flow Chart................17 9. Circuit Diagram................18 10.
  • Page 4: Product Code Illumination And Series Introduction

    1. Product Code Illumination and Series introduction 1). Model identification: H W □ □□ □ □ □ A: Abbreviation of Haier B: Abbreviation of Window C: R - Remote Control F - Mechanical Control D: Nominal cooling capacity (BTU/h) with the first two numbers based on one thousand...
  • Page 5: Specifications

    Haier air conditioner Edition: 1.0-061214 2. Specification Item Unit ESA3087 Cooling capacity BTU/h 7800 Heating capacity BTU/h Power supply 1PH/115V/60HZ Power input Cooling Running current BTU/(h·W) 10.8 Power input Heating Running current BTU/(h·W) Indoor side dB(A) Sound Level Outdoor side...
  • Page 6: Safety And Precaution

    Haier air conditioner Edition: 1.0-061214 3. Safety and Precaution WARNING: Following these basic precautions will reduce the risk of fire, electrical shock, injury or death when using your air conditioner. 1) Air conditioner must be connected to proper electrical outlet with the correct electrical supply.
  • Page 7: Warning And Cautions

    Haier air conditioner Edition: 1.0-061214 4. Warning and Cautions WARNINGS: Following the safety messages is very important. These messages can save you from being injured or killed. Warning symbols alert you to be careful and means Danger. Always follow instructions to be safe and reduce chances of injury or death. Warning and Danger signs will precede safety messages.
  • Page 8 Haier air conditioner Edition: 1.0-061214 Tips This air conditioner is designed for use in a double hung window. While installing unit be sure to tilt air conditioner 5 degrees outward to have the water drip outside the house. Install the unit on the north side, as that is normally the shaded side. This will enhance the operation of your unit.
  • Page 9: Installation And Accessory Parts

    Haier air conditioner Edition: 1.0-061214 5. Installation and Accessory Parts Check the following before you install your air conditioner: 1) The unit is free of all obstructions inside and outside the room e.g. drapes, curtains, Furniture, plants, shrubs, bushes, trees, other structures like building, garage etc.
  • Page 10 Haier air conditioner Edition: 1.0-061214 Installing Unit into A Window Window Opening Requirements The air conditioner is designed to fit into double or single hung sash type windows. Each of the units comes with an installation kit that provides adjustable mounting louvers to fill the gaps between the sides of the unit and the window frame.
  • Page 11 Haier air conditioner Edition: 1.0-061214 - 10 -...
  • Page 12 Haier air conditioner Edition: 1.0-061214 - 11 -...
  • Page 13 Haier air conditioner Edition: 1.0-061214 Parts Tools You will need to have the following tools to help you in the installation of your air conditioner. Scissors Phillips Screwdriver Standard Screwdriver Pliers Wrench Drill and Drill Bits Tape Measure Gloves Level...
  • Page 14: Parts And Functions

    Haier air conditioner Edition: 1.0-061214 6. Parts and Functions 1. Thermostat This allows you to adjust the temperature of the air--the lower the setting, the cooler the air temperature. With this you can set the temperature to your desired comfort level.
  • Page 15 Haier air conditioner Edition: 1.0-061214 when the compressor cycles off. 4. Timer Your air conditioner can be set to go on or off at your desire. This can be programmed up to 24 hours in advance. 5. 4-Way Air Flow The air directional louvers let you control the direction of the airflow to the desired direction.
  • Page 16: Abnormity Diagnose

    Haier air conditioner Edition: 1.0-061214 7. Abnormity Diagnose 1. Sensor Diagnose: 2 seconds after the sensors open circuit or short circuit, the unit will turn off automatically and the LED will show E0 until the sensors resume. Firstly check whether Terminal CN2 on Pull out the terminals on the indoor mainboard and reinsert them.
  • Page 17 Haier air conditioner Edition: 1.0-061214 2. Keystroke circuit error diagnose: When power on for the first time, the PCB will check the keystroke circuit, if the sampling value is different with the theory value, the LED will show E1, which means failed keystroke circuit.
  • Page 18: System Flow Chart

    Haier air conditioner Edition: 1.0-061214 8. System Flow Chart - 17 -...
  • Page 21: Wiring Diagram

    Haier air conditioner Edition: 1.0-061214 10. Wiring diagram WIRING DIAGRAM 0010562805 COMPRESSOR MOTOR TRANSFORMER HEAT PROTECTOR CAPACITOR CAPACITOR N L M H COMPRESSOR B(NO RIBBED) LIGHT G(Y/G) W(RIBBED) GR: GRAY POWER SUPPLY BR: BROWN BL: BLUE R: RED B: BLACK...
  • Page 22 Haier air conditioner Edition: 1.0-061214 Haier Group - 21 -...
