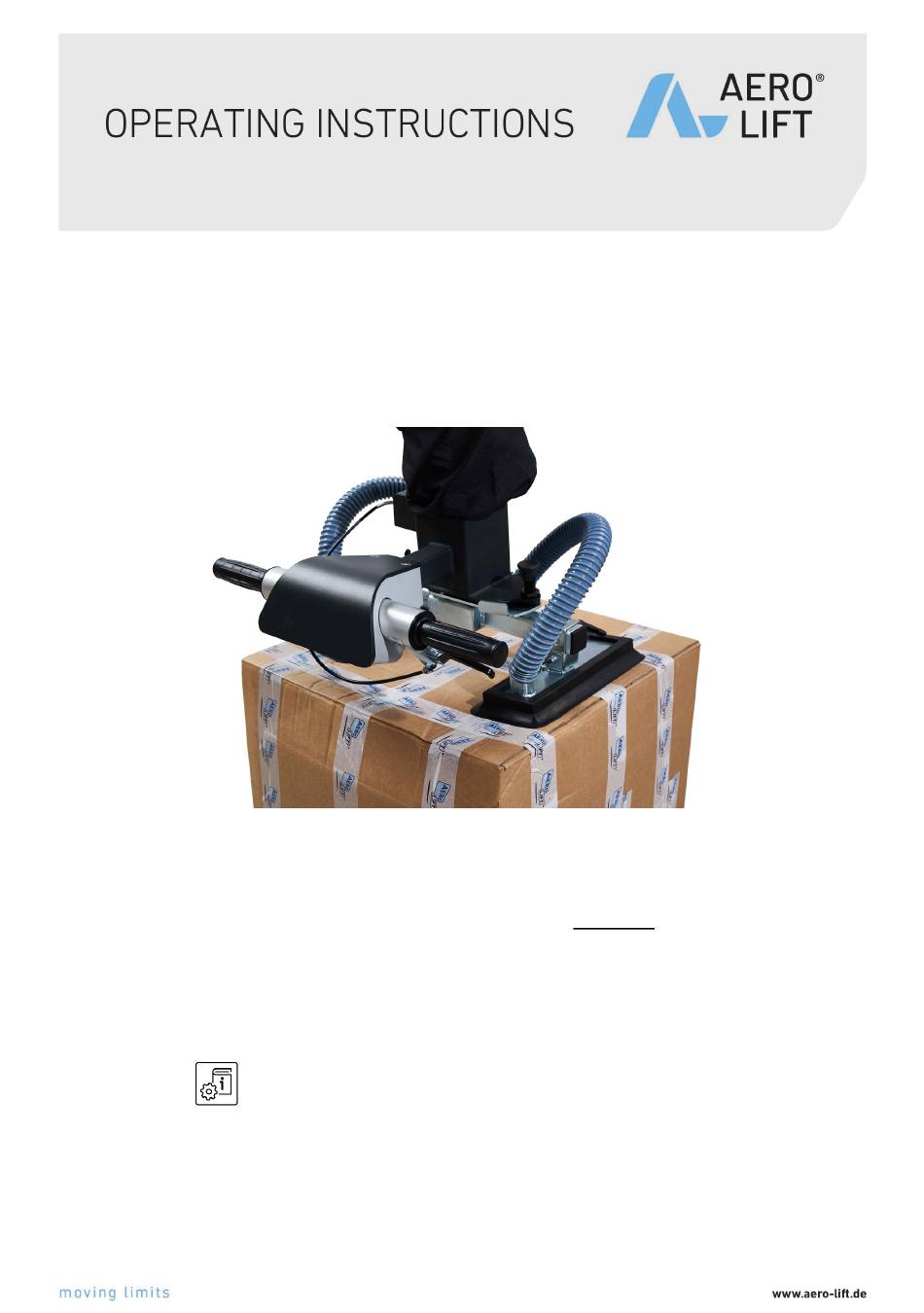

Version 1 -
General drawing to illustrate the device structure. Dimensions of beams and suction plates as well as their number can
For the horizontal transport of airtight and porous materials.
Load capacity depending on the configuration and quality of suction surface.
Vacuum-Lifter FORCE-LIFT | 2
Maschine-No.
vary and can be found in the offer / order.
Load capacity: max/SWL/WLL
Read carefully prior to start up!
AERO-LIFT Vakuumtechnik GmbH
Turmstraße 1 | 72351 Geislingen | Germany
E-Mail:
info@aero-lift.de
Phone.:
+49(0)7428 / 94514-0
Fax:
+49(0)7428 / 94514-38
kg
Advertisement
Table of Contents
Related Manuals for AERO-LIFT FORCE-LIFT 2
Summary of Contents for AERO-LIFT FORCE-LIFT 2
- Page 1 Load capacity: max/SWL/WLL For the horizontal transport of airtight and porous materials. Load capacity depending on the configuration and quality of suction surface. Read carefully prior to start up! AERO-LIFT Vakuumtechnik GmbH Turmstraße 1 | 72351 Geislingen | Germany E-Mail: info@aero-lift.de Phone.:...
-
Page 2: Configuration / Description
(L x B x H) max. mm (L x B x H) Weight oft he goods: max. Mode of transport: horizontal transport Designed for indoor use (+5 to 40°C). AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 3: Table Of Contents
Clean / replace vacuum filter ..........................24 Replace lift tube ..............................25 Spare parts .................................. 26 Troubleshooting ................................27 Warranty ..................................28 EU Declaration of Conformity ............................. 29 Operating instruction vacuum blower ........................30 AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 4: Safety
2000 = Lifting tube length in mm Further applicable documents Appendix No. Document Manufacturer Operating instructions, spare parts list AERO-LIFT Vakuumtechnik GmbH and instructions for sound-proofing box of the vacuum pump AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 5: Explanation Of Safety Instructions
Warns of tipping over and serious injury Different symbols in the warning due to crushing triangle explain a danger in more detail Warns of dangers due to electrical Warns of a suspended load voltage AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... - Page 6 Bid signs: Instructs personnel to unplug the power Instructs personnel to wear protective cord shoes Instructs personnel to wear protective Instructs personnel to wear protective clothing gloves AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de...
-
Page 7: Remaining Risks In Case Of Use
When moving, keep the one hand on the control head and the other hand on the product being transported. Always wear personal protective equipment when installing and making adjustments! AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... - Page 8 Crushing of fingers/ hands at the device or between the component and device can lead to injuries. When operating the device, exercise extreme caution! Always wear personal protective equipment when working on or with the device! AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de...
-
Page 9: Operator Obligations And Liability
Maintenance of the electrical equipment may only be carried out by a qualified electrician. • • Warranty and liability claims for personal injuries and property damage are excluded when one or more of the aforementioned requirements have been disregarded. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 10: General Safety Instructions
The vacuum lifter may only be operated if all safety devices are fully installed and functional. Intended use also includes observing this instruction manual as well as carrying out the necessary Foreseeable misuse. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 11: Reasonably Foreseeable Misuses
Working in wind forces of greater than 5 on the Beaufort scale (above a breeze). Picking up loads with snow or ice-covered surfaces. • • Operation by untrained personnel. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 12: Technical Specifications
Geräuschpegel Ca. 74-80 dB(A) As configured: Working load maximum: Ø mm, Länge Lift tube : Gebläse: AL SV400/2 Vacuum blower 400V, 3KW Typ: Crane : Zugelassene Last: Suction foot: AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 13: Functional Description
Consequently, the product being transported can be held suspended in the air by stopping the addition of external air to a certain extent. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 14: Control Heads
Operating Instructions FORCE-LIFT | 2 Page 14 Control heads AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 15: Force-Lift | 2 Ergoplus
It is therefore an indispensable aid, especially for transport goods stored at a higher level. CAUTION! Danger of crushing in the area of the joint! Crushing fingers / hands at the joint can lead to injuries. Do not reach into this area! AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 16: Installing The Vacuum Lifter
When using an vacuum blower as a vacuum generator the electrical fuse protection must be a C16 fuse. Note: Check the direction of rotation on the blower. (The direction of rotation is marked on the turbine with an arrow). AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 17: Handling And Operation
2. Position the vacuum lifter precisely above the product to be transported and lower. To lower the right handle must be turned clockwise. 3. Position the suction foot centrally on the surface of the product to be transported. Pivot at the joint if necessary. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... - Page 18 This is only possible when the right handle is in the lowest position. → The product to be transported was transported using the vacuum tube lifter. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de...
-
Page 19: Turning The Right Handle To Lift Up And Down
Operating Instructions FORCE-LIFT | 2 Page 19 Turning the right handle to lift up and down Uncoupling the load (quick-release) AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 20: Regulating Screw
The regulating screw is used to set whether airtight or porous materials are sucked on. If it is closed, airtight transport goods can be lifted. To lift porous surfaces (cardboard boxes, paper bags, ...) the screw must be turned out further. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 21: Fastening / Chainging The Suction Foot
1. Attach the new suction foot. To do so, pull up the detent, turn the operating handle clockwise, and press the new suction foot into the holder from below. 2. Lock the quick-change coupling back into place. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 22: Maintenance, Inspection And Repair
Maintenance and repairs Maintenance and repairs may only be carried out by qualified personnel. Constructive or functional changes or additions are only permitted with the manufacturer’s written approval. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 23: Inspection Intervals
Inspection intervals depend on the degree of air pollution and the environment. If the lifter is used to transport, e.g., wood, the filters must be checked every week and cleaned if necessary. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 24: Clean / Replace The Prefilters
2. Remove filter insert and clean. This depends on the type of dirt (wood chips, dust, etc.) Throughly clean the vacuum filter with a small compressor, flushing medium or air filter cleaner. 3. Replace the vacuum filter if very contaminated. → Vacuum filter was cleaned or replaced. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 25: Replace Lift Tube
Do NOT touch or reach between individual suction plates (double-rectangular suction foot), quick-changing coupling and suction foot or between other components! Carefully install the vacuum lifter. Always wear personal protective equipment when installing and making adjustments! AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 26: Spare Parts
2032313 Handle unit Spring balancer (OPTIONAL) 2049422 4 – 6 kg We recommend using only original parts from AERO-LIFT, the configuration, quality and functional characteristics of which are guaranteed. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 27: Troubleshooting
Please contact the person responsible for the electrical installation or our technical sales department Fault: There is extraneous noise coming from the vacuum pump. Bitte legen Sie die Vakuumpumpe still und nehmen Sie Kontakt mit unserem Technischen Vertrieb auf. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 28: Warranty
The warranty period starts with the delivery of the vacuum lifter. We are not liable for rectification and replacements costs, which were caused without our explicit, written agreement. AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 29: Eu Declaration Of Conformity
Cranes – Manually controlles load manipulating devices Authorized representative for technical documentation: AERO-LIFT Vakuumtechnik GmbH, Turmstr. 1, D-72351 Geislingen Location/Date: Geislingen-Binsdorf, Signature: Tobias Pauli Original Declaration of Confomity Translation Declaration of Confomity AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... -
Page 30: Operating Instruction Vacuum Blower
Operating Instructions FORCE-LIFT | 2 Page 30 14 Operating instruction vacuum blower AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de... - Page 31 Operating Instructions FORCE-LIFT | 2 Page 31 AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de...
- Page 32 Operating Instructions FORCE-LIFT | 2 Page 32 AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de...
- Page 33 Operating Instructions FORCE-LIFT | 2 Page 33 AERO-LIFT Vakuumtechnik GmbH, Turmstraße 1, 72351 Geislingen, Germany, Tel. 07428/94514-0, www.aero-lift.de...
