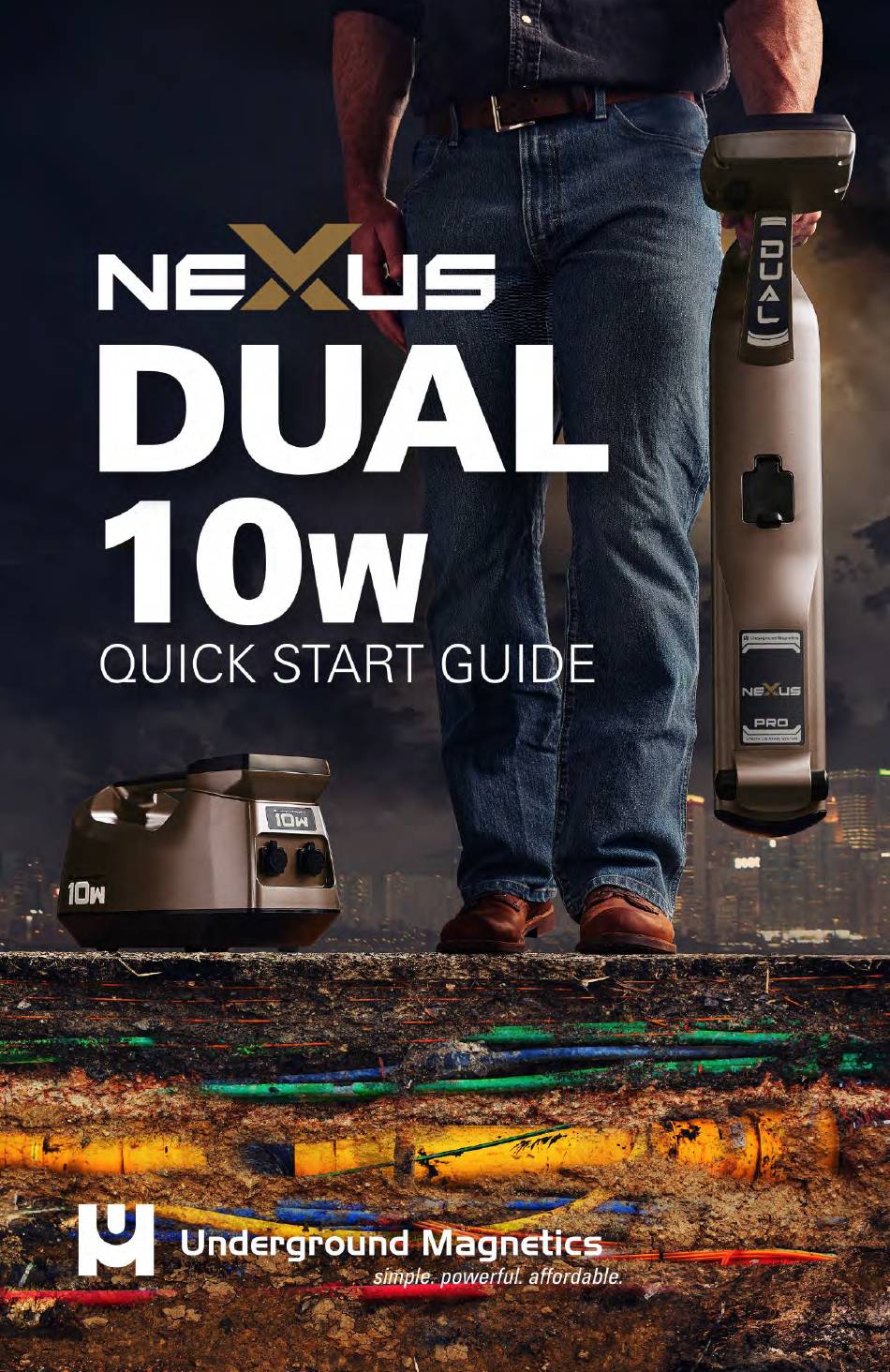

- Page 1 Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131...
-
Page 2: About This Guide
This alert indicates a hazardous situation that could result in major injury or death if not avoided. Congratulations on your purchase of an Underground Magnetics Nexus Pro Utility Locating System! Please read this guide in its entirety before attempting to use the Utility Locating System, it applies to all Utility Locating System equipment: Nexus Pro Dual Receiver, a handheld portable, ergonomic and lightweight design. -
Page 3: Table Of Contents
6.1.1 Active Locating 6.1.2 Passive Locating 7. HDD Guide Active Locating 7.1.1 Direct Connection Mode 7.1.2 Transmitter Clamp 7.1.3 Induction Mode Passive Avoidance 7.2.1 Entry and Exit pits 7.2.2 Bore path Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... - Page 4 Operating Instructions: UM Utility Locating Systems 8. Safety Directions Intended use Adverse use Limits of use Responsibilities Hazards of use Worksite safety Equipment safety Batteries and environmental safety Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131...
-
Page 5: Um Dual Receiver
Press Down to navigate. Frequency to change a setting or enter a submenu. o Press Mode to exit. Each key can be operated with either a short or long press. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 6: User Interface
Operating frequency Estimated depth and the Transmitter signal current of the target Depth & Current Estimates conductor Volume Audio volume level Battery Battery level Compass Indicates orientation of the target conductor Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 7: Key Functions
Menu Key Press Functions (Short Press) Volume Exits to the locate screen Mode Exit the menu or submenu Move the selection up Down Move the selection down Frequency Change a setting or enter a submenu Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 8: Frequencies
19’ 8” (6m). Auto – Displays depth and current when compass angle is in range, Guidance arrows are centered, and the receiver is being held still in addition to the ON conditions above. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 9: Menu Selection
• Sound options: Changes waveform if no keys are pressed. output to speaker: o Rough = triangle waveform, Regulatory Info Smooth = Sine waveform Information on RF modules in the receiver Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 10: Um 10W Transmitter
9. Press the Settings key to enter the menu. o Press Down to navigate. Frequency to change a setting or enter a submenu. o Press Mode to exit. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 11: User Interface
Battery Level High Voltage Direct Connect ONLY: Indicates that a high voltage has been Indication detected. Current Measured Output Current (mA) Voltage Measured Output Voltage (V) Impedance Measured Output Impedance (Ω) Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 12: Key Functions
Press exits to Main screen Mode Exit the menu or submenu Move the selection up Down Move the selection down Frequency Change a setting or enter a submenu Settings Opens the settings Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 13: Voltage Isolator
DO NOT TOUCH THE TRANSMITTER OR THE LEADS! MOVE AWAY TO A SAFE DISTANCE AND FOLLOW YOUR COMPANY SAFETY PROCEDURES The power source should be de-energized and confirmed before disconnecting the equipment. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 14: Frequencies
3.14kHz, 4.1kHz, 8.01kHz, 8.19kHz, 9.82kHz, 12.1kHz, 16.3kHz, 22.5kHz, 29.4kHz, 32.8kHz, 44.5kHz, 66.1kHz, 88.8kHz, 99kHz, 132kHz, 200kHz 4.6 Output Ports The 10w has 2 output ports. Any combination of accessories can be connected to the output ports. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 15: Modes
Induction (3.14kHz and up) When access to a cable is restricted, or no physical connection can be found, the Induction method may be used. Induction Mode is only available for frequencies 3.14kHz and higher. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 16: Menu Selection
Selects which frequencies will be cycled through when the user presses the Frequency Key. Auto Shutdown Selects the time interval before the transmitter automatically shuts down if no keys are pressed. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 17: Technical Data Table
- CP100 for 50Hz grid Radio: 13kHz to 28kHz Sonde 4 Frequencies: 512Hz, 640Hz, Custom Frequencies Available by request Frequencies 8.19kHz, 32.8kHz Data Logging Wireless Connections Environmental IP65 Accessories Ring Clamp Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 18: Transmitter Specifications
Norwegian Hungarian Spanish Portuguese Latvian Romanian PC based Setup User configurable French Russian Lithuanian Chinese Product Firmware German Swedish Czech Korean Updates with Italian Danish Finnish UM Setup Polish Estonian Greek Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 19: Locating Overview
It is recommended that both Passive and Active signal methods should be used in all situations. Use Active signal methods first and then repeat using passive signal methods to verify each Locate and maximize the potential to discover abandoned or other undocumented utilities. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 20: Utility Locating
Nonmetallic or other abandoned services without a signal may be present Always excavate with care Investigate further with the information provider, utility owner or site Supervisor if any information seems incorrect or is not clear Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 21: Locate Applications
Investigate any indications and consider using Active Signal Induction to better understand the underground situation. Mark detected Utilities in accordance with site or company regulations, contact a supervisor, client or take damage prevention actions as necessary. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 22: Hdd Guide
Do not make depth estimates near bends or Tees in the line. Move at least 20ft from a bend or Tee for best quality Always follow local safe digging guidelines If in doubt ignore a depth estimate or repeat at multiple locations, ideally at least 10 ft intervals, to obtain a comparison Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 23: Active Locating
For Safety, the Black lead should be connected to a convenient ground point or using the supplied Ground Stake pushed into the ground and followed by connecting the Red lead to the Utility or tracer wire. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 24: Transmitter Clamp
The best results will be obtained by using the Lowest effective Transmitter Output Signal Frequency. If necessary, compare results using different Transmitter Frequencies or repeat Locates in a wider area. For safety connect the Clamp to the Transmitter and then clamp the cable. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 25: Induction Mode
To avoid the Receiver locating the Transmitter induction signal directly through the air, also known as an Air Lock of signal, the distance between the Receiver and Transmitter must be at least 20ft (6m) Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... - Page 26 Note: Any increase in signal that indicates the possible presence of a buried utility 7. The Transmitter position should be moved to each corner of the pit (A, B, C and D) to maximize utility detection reliability. 8. Repeat this process at each position Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131...
- Page 27 Rotate the Receiver 90-degrees 4. Both operators walk in tandem from pit to pit a. Remain 20ft (6m) apart b. Operator with the Receiver walks 3ft (1m) ahead to ensure most reliable detection. Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131...
- Page 28 4. Both operators walk in tandem from pit to pit a. Operator with the Receiver walks 20ft (6m) ahead to ensure most reliable detection b. Maintain 20ft (6m) apart from one pit to the other Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131...
-
Page 29: Passive Avoidance
2. Adjust the Receiver gain until 20% display of background signal noise 3. Walk slowly around the perimeter Note any increase in signal that indicates the presence of a buried utility Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 30: Bore Path
5. Walk along the planned Bore path from one pit to the other at a slow walking pace Note any increase in signal that indicates the presence of a buried utility Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... - Page 31 4. Walk at a slow pace along the Bore Path from one pit to the other 5. Sweep the Receiver left to right, without swinging it, by 3ft (1m) either side Note any increase in signal that indicates the presence of a buried utility Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131...
-
Page 32: Safety Directions
Always connect to the utility before powering the transmitter on Use only the supplied UM lithium battery chargers for charging UM lithium batteries Do not attempt to disassemble the lithium battery packs Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 33: Intended Use
8.4 Responsibilities Underground Magnetics Inc, Johnston Iowa 50131, USA is responsible for supplying the product, including the operating manual and original accessories, in a completely safe condition. -
Page 34: Hazards Of Use
Precautions: Protect the batteries from high mechanical influences and high ambient temperatures. Do not drop the batteries into fluids. Unauthorized service and repair may result in a hazardous product. Precautions: Only Underground Magnetics authorized service workshops are entitled to repair these products Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131... -
Page 35: Batteries And Environmental Safety
Operating Instructions: UM Utility Locating Systems 8.8 Batteries and environmental safety The batteries used by Underground Magnetics meet the required safety standards and include safety protection circuitry to prevent accidental damage in use. Regulations regarding shipping of removable battery packs is under review. Packaging of spare battery packs MUST include specified warning labels. - Page 36 Operating Instructions: UM Utility Locating Systems Underground Magnetics 5401 NW Beaver Drive. Johnston, Iowa 50131...
