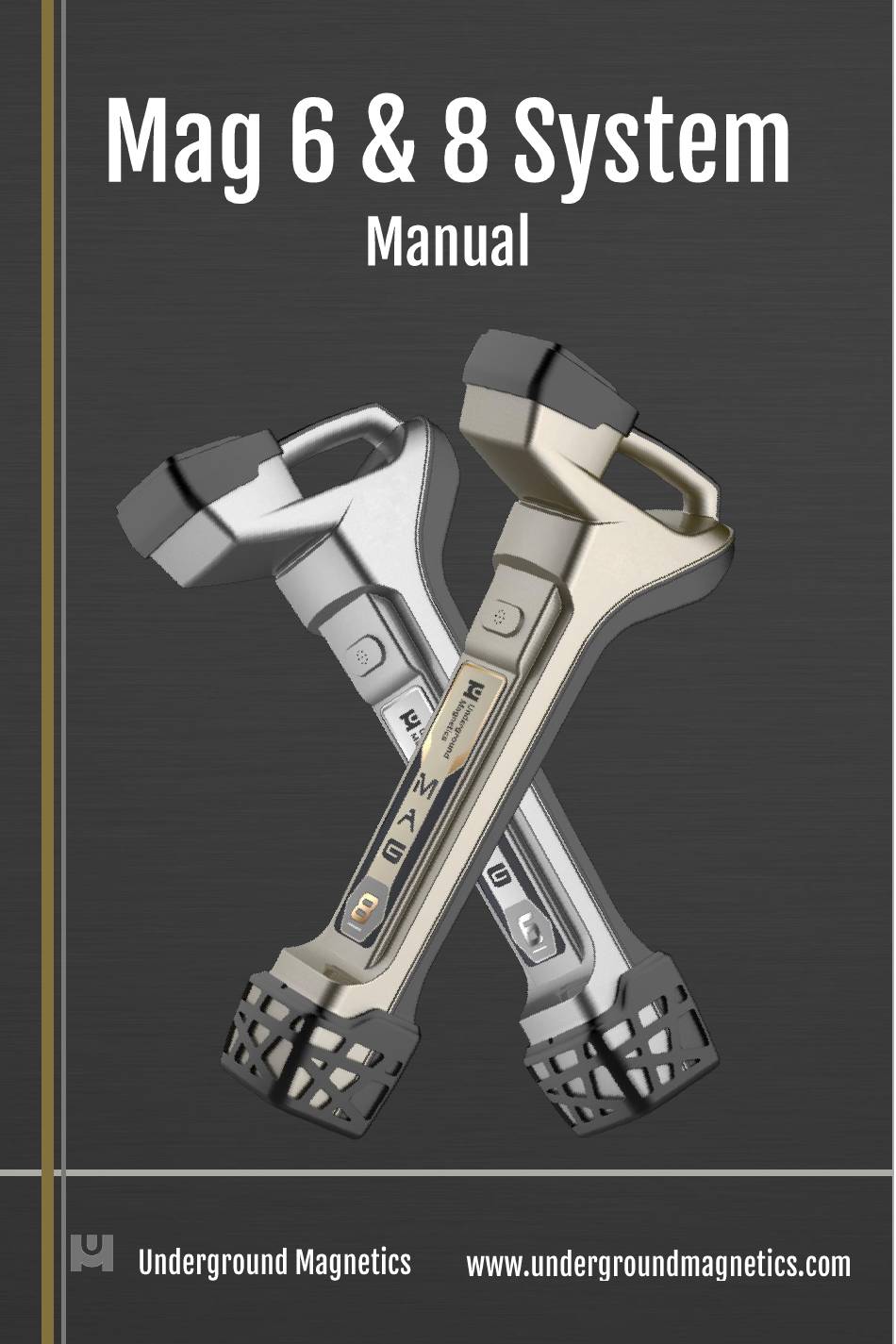

Underground Magnetics Mag 6 Manual

Hide thumbs Also See for Mag 6:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Mag 6 and is the answer not in the manual?

Questions and answers

Related Manuals for Underground Magnetics Mag 6

Summary of Contents for Underground Magnetics Mag 6

  • Page 3 Introduction………………………………………...…….1 Caution………………………….…………………...……2 3: System Highlights…………………………………...….6 Receiver……………………………….………………….7 4.1: Specifications……………………………..…...7 4.2: Receiver Operation………………………..….…7 4.3: Icons………………………………………………8 4.3.1: Main Page Icons……………..…………8 4.3.2: Secondary Page Icons……………..…10 4.3.3: Calibration and Depth Forecast Page Icons………….11 4.3.4: Setup Page Icons……………………..11 4.4: Calibration……………………………………..12 4.4.1: Depth Calibration…………………..….12 4.4.2: Roll Calibration…………………….…..13 4.5: Operation…………………………………..……14 4.5.1: Depth...
  • Page 4 Display…………………………………….………..……27 5.1: Specifications……………………………...……27 5.2: Display Operations………………………..……27 5.2.1: Down Hole Echo Mode Change……. 5.2.2: Radio Channel Selection…….…….…30 5.2.3: Pairing…………………………….… …31 5.2.4: Pitch Unit Selection……………………32 5.2.5: Distance Unit Selection……………….33 5.2.6: Visibility Control………………………..34 …..…35 5.3: Display Maintenance…………………… Transmitter…………………………….……………..…36 6.1: Introduction………………………………...……36 6.2: Specifications……………………………...……36 6.3: Digital Information………………………..… ….37 6.4: Transmitter Maintenance………………………37...
  • Page 5 The MAG 6 & 8 are locating systems designed to assist horizontal directional drill machine operators in locating and tracking underground drill head locations and orientations. The system consists of a transmitter, a receiver, and a remote display. The transmitter sends digital information of the transmitter’s pitch, roll, temperature, and battery status...
  • Page 6 UM is not responsible for any damage or loss caused by using the Mag system. Operators should operate the Mag system according to the manual. If there are any questions, please contact Underground Magnetics. Page 2...
  • Page 7 High precision and high anti-interference Faraday shield 3D antenna structure Industrial rated, gold-plated electronic modules High-performance DSP Dual locating system, functioning as two receivers independently tracking to provide better accuracy and reliability Up to 110m depth range and up to 120 hours continuous usage Mag 8 4kHz –...
  • Page 8 Mag 6 4kHz – 31kHz 11 System frequencies Water resistant IP65 Temperature range -20° to 60°C Telemetry 4 radio channels with range up to 0.9km (900m) Rechargeable lithium 12.5V battery Battery life Up to 50 hours Dimensions 68.5cm * 13cm * 30cm...
  • Page 9 • Transmitter model, frequency, and power • Noise • Signal strength • Visual representation of signal to noise • Transmitter temperature (Flashing indicates transmitter is over-heating) • Direct distance between transmitter and receiver • Vertical distance between receiver and transmitter Page 5...
  • Page 10 Page 9 • Estimated horizontal distance between transmitter and receiver • Estimated transmitter depth • Transmitter pitch • Roll indicator • 24 clock positions • Single Point: direction of transmitter • Locate Line • Receiver Page 6...
  • Page 11 To enter Secondary Page part I, press and hold To enter Secondary Page part II, tap from Secondary Page part I. Transmitter model, frequency, and power Receiver battery status Radio channel Battery voltage Antenna voltage: Normal range: 95% - 105% Antenna power: Normal power mode: 500mW –...
  • Page 12 A1： 3m calibration 10m calibration A4： 20m calibration Depth forecast Transmitter activation Transmitter settings Receiver settings Radio channel selection Receiver and display pairing Roll calibration Pitch unit selection Time & date setting System lock/unlock B10: Visibility control B11: System info B16: Speed Control Page 8...
  • Page 13 Even if the transmitter’s roll, pitch, battery status and Warning: temperature are displayed correctly, calibration may not be reliable due to a distorted magnetic field. Always do the 3m calibration first. 1. Make sure that the transmitter is working properly. Place it in the housing.
  • Page 14 1. Place transmitter housing in a 12 o`clock position. 2. Press and hold 3. Tap three times to enter Setup page and enter and start roll to select B6 calibration and wait for icon. calibration to complete. 5. Tap to return to 4.
  • Page 15 2. Tap to enter 1. Tap to enter Depth Forecast calibration page and Page. to select A5 …. Highest depth icon. …. real-time depth .… lowest depth reset forecast. 3. Tap to return to Main Page. Note: The highest depth forecast value is a conservative value and will be the main value used when determining interference.
  • Page 16 (For dealer or factory use) (Process must be started within 10 minutes after batteries have been placed in the transmitter.) 2. Tap to enter 1. Press and hold enter Setup Page and Transmitter Activation to select B1 icon. Page. 1111-1111 is the transmitter identification number and 3333-3333 is the prompt code in the...
  • Page 17 （Process must be started within 10 minutes after batteries have been placed in the transmitter.） 1. Press and hold 2. Tap to enter Transmitter enter Setup Page and Settings Page. The receiver to select B2 icon. and Echo transmitter will automatically pair.
  • Page 18 2. Tap to enter 1. Press and hold Receiver Settings enter Setup Page. Page. Tap to select B3 to select icon. transmitter model, frequency, and power. 3. Tap to return to Main Page. Page 14...
  • Page 19 1. Press and hold 2. Tap to enter Radio enter Setup Page. Channel Page. Use to select B4 to select icon. radio channel. 3. Tap to return to Main Page. Page 15...
  • Page 20 1. Press and hold 2. Tap to enter enter Setup Page. Pairing Page. Tap to select B5 to start pairing. (It is icon. required that these last two steps are performed on the display at the same time.) 4. Tap to return to 3.
  • Page 21 1. Press and hold 2. Tap to switch enter Setup Page pitch mode. and tap to select B7 icon. Tap enter Pitch Unit Selection Page. 3. Tap to return to Main Page. Page 17...
  • Page 22 2. Tap to enter Time 1. Press and hold Settings Page. Tap enter Setup Page. to select year, to select B8 month, day, hour, or icon. minute. Tap to set time. 3. Tap to return to Main Page. Page 18...
  • Page 23 (To obtain password, please contact your dealer) 1. Press and hold 2. Tap enter Setup Page to change number of and tap to select days (default is 100). B9 icon. Tap again to select enter System Unlock password. Tap Page. to input password.
  • Page 24 1. Press and hold 2. Tap enter Setup Page adjust. and tap to select the B10 icon. Tap to enter Visibility Control. Note: By holding both at the same time while turning the receiver on, the visibility control 3. Tap to return to will reset to normal Main Page.
  • Page 25 (Adjusting speed control of the ball) 1. Press and hold 2. Tap enter Setup Page adjust speed. and tap to enter the Speed Control Page. Note: 0 to 100 is the index for speeding up (suitable for shallow depths) -100 to 0 s the index for slowing 3.
  • Page 26 The receiver uses rechargeable lithium batteries. The receiver will automatically shut off if no key is pressed for over a period of 20 minutes or if there is no information received from the transmitter. It is strongly recommended that the batteries are taken out of the receiver if it is not being used for a long period of time to avoid potential corrosion.
  • Page 27 Mag D6 Radio frequency 867MHz Water resistant IP65 Temperature -20° to 60°C range Telemetry 4 radio channels with range up to 0.9km (900m) Power Rechargeable lithium batteries Battery life Up to 50 hours Screen Industrial rated LCD graphic screen Dimensions 19cm x 13cm x 19cm Weight 1.5kg...
  • Page 28 (Echo 2S and Echo 3) 1. Press and hold 2. Use enter Setup Page. select desired to enter frequency and power Down Hole Echo levels. Tap Mode Change Page. begin mode change process. Steps remaining Roll indicator Instructions Target dot Proceed: time left to Hold: hold this roll proceed in process by...
  • Page 29 Rotate drill head until roll indicator points toward target dot. Instructions will change from the clockwise arrow to “STOP”. Hold this position until “H” counts down to 0. Rotate drill head to next position in sequence before “P” counts down to 0 or the sequence will be canceled.
  • Page 30 1. Press and hold 2. Use to select enter Setup Page radio channel. and tap to select B4 icon. Tap enter Radio Channel Page. 3. Tap to return to Main Page. Page 26...
  • Page 31 to start 1. Press and hold pairing. (It is required enter Setup Page that the following and tap to select procedure is performed B5 icon. Tap on the receiver at the enter Radio same time) Registration Page. 3. Pairing complete. 4.
  • Page 32 2. Tap to switch 1. Press and hold pitch mode. enter Setup Page and tap to select B7 icon. Tap enter Pitch Unit Selection Page. 3. Tap to return to Main Page. Page 28...
  • Page 33 2. Tap to enter 1. Press and hold Distance Unit enter Setup Page. Selection Page. Tap to select B13 to select icon. unit and format. 3. Tap to return to Main Page. Page 29...
  • Page 34 1. Press and hold 2. Tap enter Setup Page adjust. and tap to select the B10 icon. Tap to enter Visibility Control Page. Note: By holding both at the same time while turning the display on, the visibility control 3. Tap to return to will reset to normal Main Page.
  • Page 35 The display uses rechargeable lithium batteries. The display will automatically shut off if no key is pressed for over a period of 20 minutes or if there is no information received from the receiver. It is strongly recommended that the batteries are taken out of the display if it is not being used for a long period of time to avoid potential corrosion.
  • Page 36 The transmitter provides drill head temperature, clock position, pitch, battery status and locating signal. The transmitter transmits signals at 4kHz, 7kHz, 10kHz, 12kHz, 16kHz, 19 kHz, 22kHz, 25kHz, 28kHz, 30kHz, or 31kHz. The transmitter will enter a “sleep” mode after 15 minutes without rotation. It takes 10 seconds to “wake up”...
  • Page 37 Echo 1 Dimensions 3.2cm x 38cm Frequency 4kHz/19kHz/30kHz Depth Range 25m/40m/40m 2 C cells, Echo Cell Kit, or Lithium Power Battery C cell 3V, 12 hours of continuous usage Echo Cell 3V, 20 hours of continuous usage Lithium* 3V, 48 hours of continuous usage Temperature Under 121°C Echo 2S...
  • Page 38 Echo 50 Dimensions 3.2cm * 38cm 10 frequencies: 4kHz – 31kHz Frequency Normal power: Depth Range High power: 18650 rechargeable lithium battery Power 261020 lithium battery Normal power: 20 hours 18650 (3.7V) High power: 5 hours Normal power: 60 hours 261020 (3.7V) High power: 15 hours...
  • Page 39 Echo 70 Dimensions 3.6cm * 39.3cm 10 frequencies: 4kHz – 31kHz Frequency Normal power: Depth Range High power: (3) 18650 rechargeable lithium batteries Power Normal power: 60 hours 18650 (3.7V) High power: 15 hours Temperature Under 121°C 8.4V – 12.6V Battery Voltage Echo 90 Dimensions...
  • Page 40 Echo 110 Dimensions 3.6cm * 60.5cm 10 frequencies: 4kHz – 31kHz Frequency Normal power: Depth Range High power: 110m (3) 18650B2 rechargeable lithium Power batteries Normal power: 120 hours 18650B2 (3.7V) High power: 30 hours Temperature Under 121°C 8.4V – 12.6V Battery Voltage XNEEDLE-M Dimensions...
  • Page 41 Pitch: From -100% to +100% with 0.1% resolution within the range of -45% to +45% and 1.0% resolution outside of that range. Roll: 24 transmitter roll positions Battery: Install batteries positive side down and install battery cap with provided battery cap tool. ▪...
  • Page 42 There are two main methods of locating a transmitter. Three Point Locating Single Point Locating Three Point Locating is the industry standard method for locating. It locates the transmitter by pinpointing three specific locations along the transmitter’s magnetic field. The front locate point (FLP) ahead of the transmitter, the rear locate point (RLP) behind the transmitter and the locate line (LL) above the transmitter.
  • Page 43 The FLP is a point in front of the transmitter. Locate it by putting the ball in the box. Next, find the RLP. The RLP is a point behind the transmitter. Locate it by putting the ball in the box. Then, imagine a line that runs through the FLP and RLP.
  • Page 44 Single Point Locating is the newest and most efficient locating method, which is available with the Mag 6 and Mag 8. Simply locate the front locate point (FLP). When the ball falls into the box, you are above the FLP.
  • Page 45 Estimated horizontal distance between transmitter and receiver Vertical distance between receiver and transmitter Projected transmitter depth Direct distance between transmitter and receiver Receiver should always face away from the drill rig Hold To switch between Bore-To and To use Bore-To, place the receiver Walkover mode, tap ahead of the transmitter along the from the main...
  • Page 46 When charging is complete, a green light will shine. Underground Magnetics offers standard warranty on parts and labor of the Mag 6 and 8 series locating system under normal usage. The warranty period is one year for the receiver and display and six months for the transmitter.
