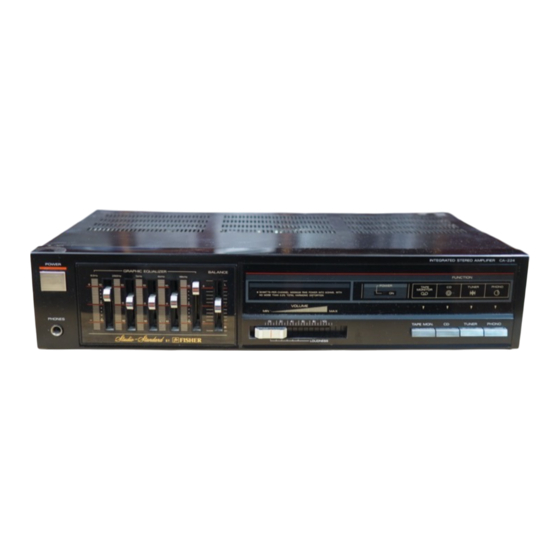

Fisher CA-224 Service Manual

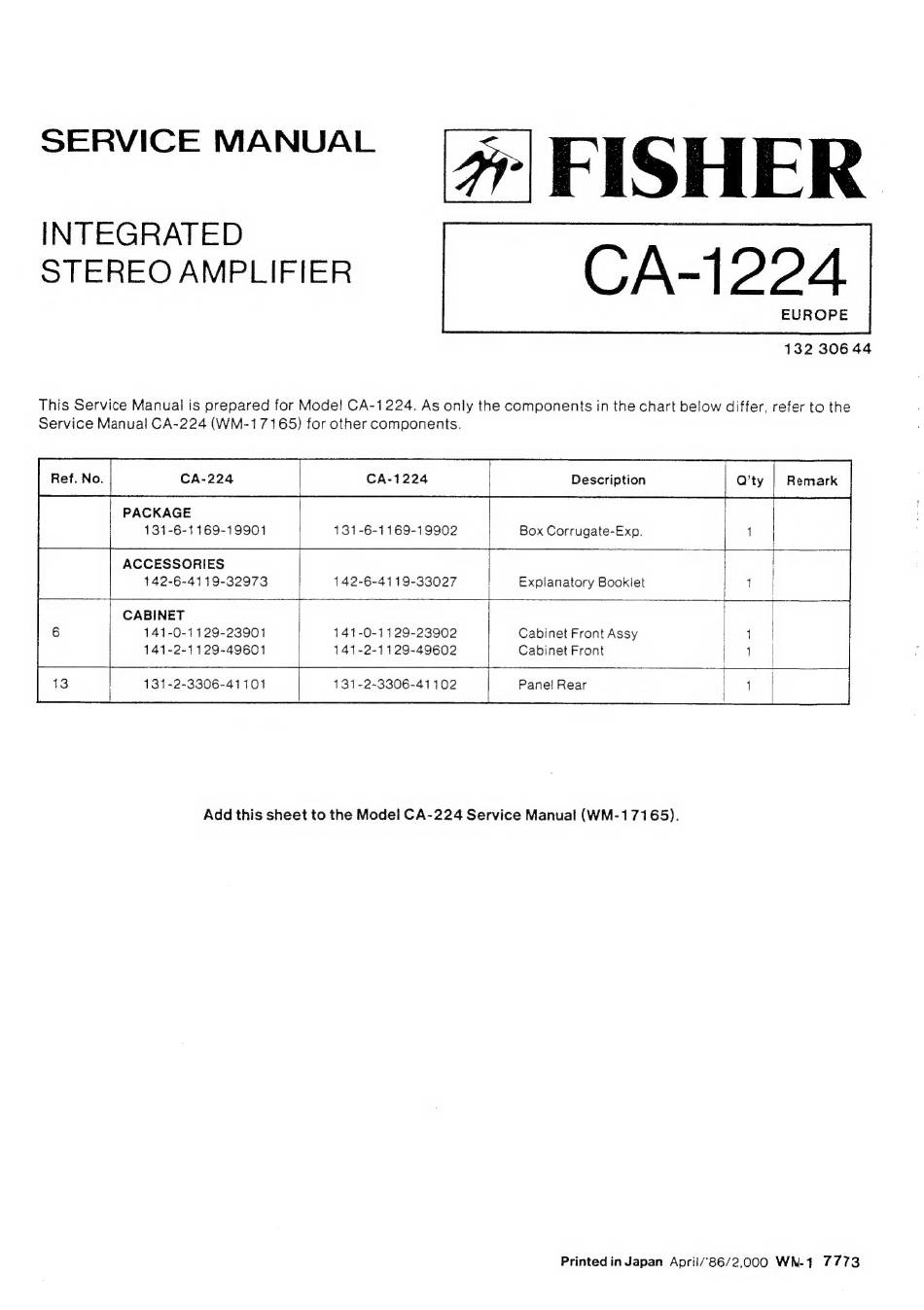

SERVICE MANUAL FISHER
INTEGRATED CA-1 DOA
STEREO AMPLIFIER
EUROPE
132 30644
This Service Manual is prepared for Mode! CA-1224. As only the components in the chart below differ, refer to the
Service Manual CA-224 (WM-17165) for other components.
CA-1224 Description Remark
PACKAGE
131-6-1169-19901 131-6-1169-19902 Box Corrugate-Exp.
ACCESSORIES
142-6-4119-32973 142-6-4119-33027 Explanatory Booklet
CABINET
141-0-1129-23901 141-0-1129-23902 Cabinet Front Assy
141-2-1129-49601 141-2-1129-49602 Cabinet Front
4
131-2-3306-41101 131-2-3306-41102 Panel Rear
Add this sheet to the Model CA-224 Service Manual (WM-17165).
Printed in Japan April/'86/2,000 WN-1 7773
