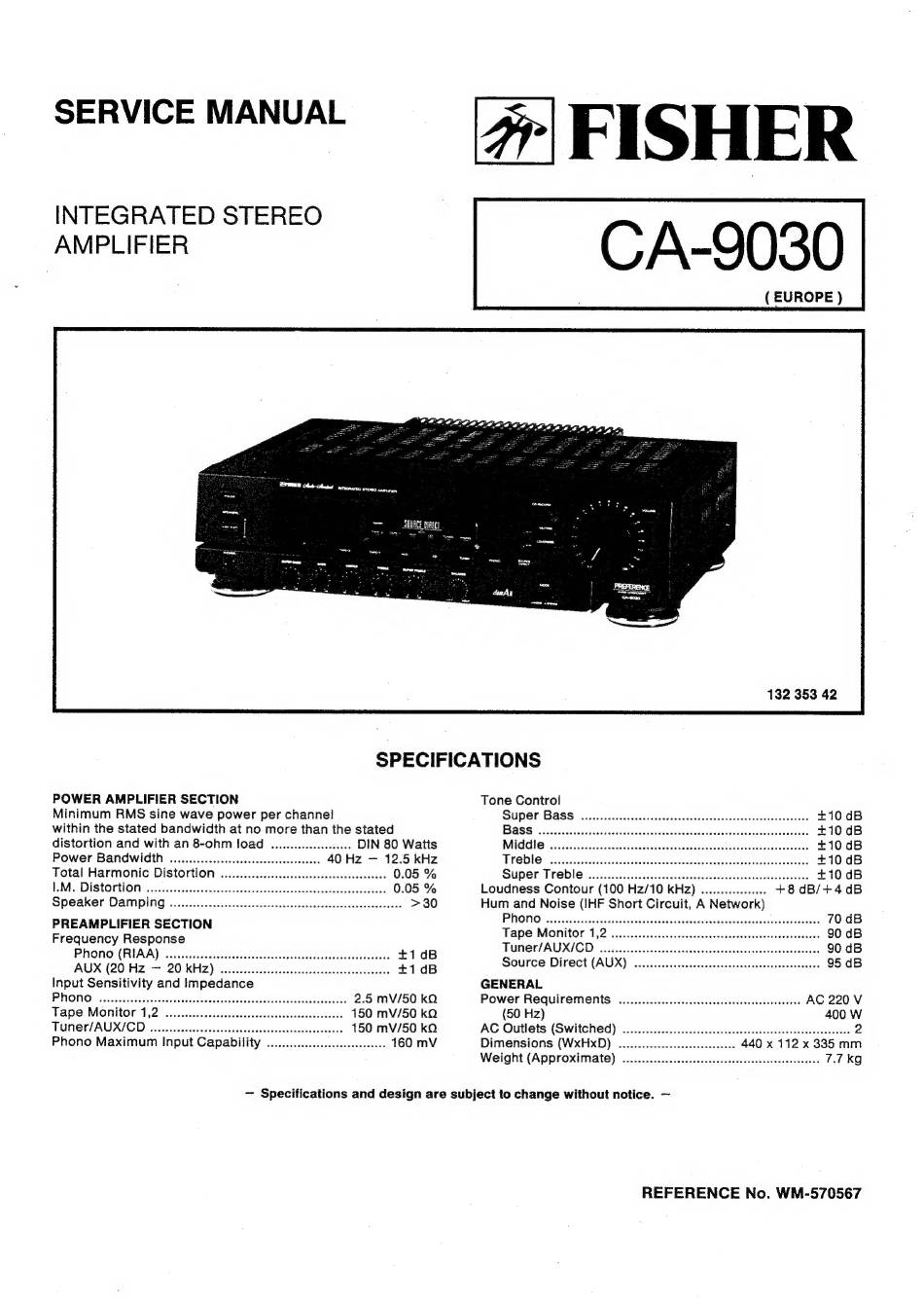

Fisher CA-9030 Service Manual

SERVICE MANUAL

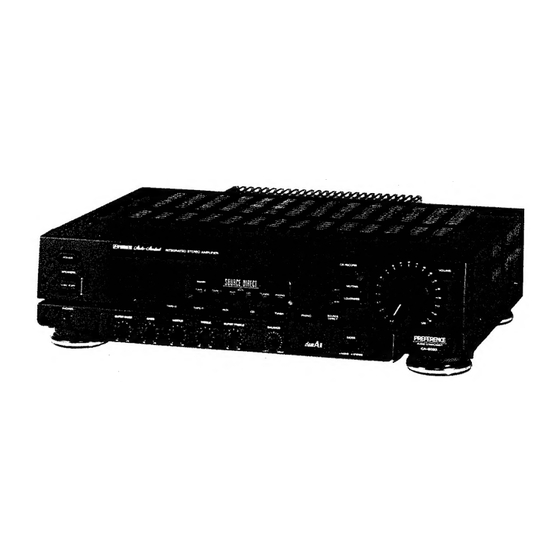

INTEGRATED STEREO
AMPLIFIER
( EUROPE )
132 353 42
SPECIFICATIONS
POWER AMPLIFIER SECTION
Minimum RMS sine wave power per channel
within the stated bandwidth at no more than the stated
distortion and with an 8-ohm load uu... DIN 80 Watts
Power Bandwidth oo... eeccscceecesecceceeeene 40 Hz — 12.5 kHz
Total Harmonic Distortion wo... ccccccecccessesessenneeees 0.05 %
ILM. Distortion ........... ee ... 0.05 %
Speaker Damping 00.0... eeccssceccesssnecessencesecseseeseneseeeceess >30
PREAMPLIFIER SECTION
Frequency Response
Phono (RIAA) «0... ecececeesscesssssssseeeecesceesenteeeesseresees +1dB
AUX (20 HZ ~— 20 KHZ) ......eeecccccssesecceesessseresesasenees +1dB
Input Sensitivity and impedance
PION: sosceceecevceccusvevsvve sash lavage ssevesevcossideceesusaeteibic 2.5 mV/50 kQO
Tape Monitor 1,2 .. 150 mV/50 kQ
Tuner/AUX/CD ........ .. 150 mV/50 kQ
Phono Maximum Input Capability «0.0.0.0... eee 160 mV
Tone Control
SUPCM BASS: cis cciesesaceccaste lee sede cedetadecversiave tadeedsieeses +10 dB
Bass . £10dB
Middle . £10 dB
Treble . £10 dB
SUPCP Treble cocci. csccsevsssctavaeeasaseacsesecaacesetaacecacedeeees +10 dB
Loudness Contour (100 Hz/10 KHZ) ..............04 +8 dB/+4dB
Hum and Noise (IHF Short Circuit, A Network)
PROMO ss chsscacseesdccuccesususaversanpivesvavessassdueezeauacxeessvesscals
Tape Monitor 1,2...
Tuner/AUX/CD ............
Source Direct (AUX)
GENERAL
Power Requirements ........ccccceeeeeecsssseeseceesseseceensneeees AC 220 V
(50 Hz) 400 W
AC Outlets (Switched) 0.0... ccecccesessncenseeeseeseesaceneseeeeeeens 2
Dimensions (WXHXD) 0.0... eeeeeceeseeeseeeee 440 x 112 x 335 mm
Weight (Approximate) .............cccccececceeccessrerserssseeseesserene 7.7 kg
~ Specifications and design are subject to change without notice. —
REFERENCE No. WM-570567
