Summary of Contents for Vemer memo NFC

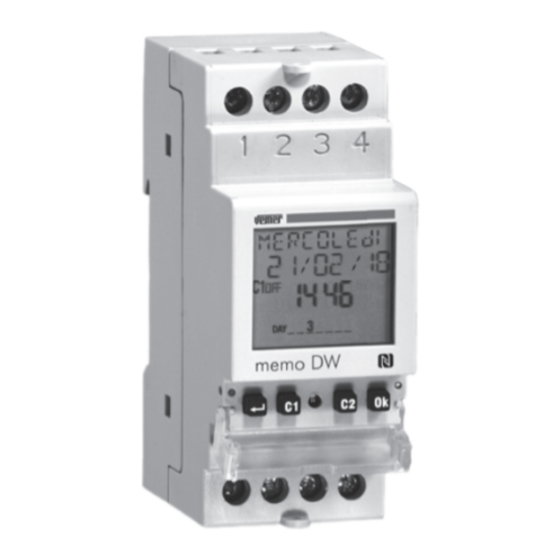

- Page 1 Manuale d’Uso INTERRUTTORE ORARIO DIGITALE memo NFC memo NFC Digital time switch: User Manual...
- Page 3 Program menu: new weekly timed page Program menu: new yearly timed page Program menu: new holiday timed page Program menu: check page Program menu: modify page Program menu: copy page Program menu: delete page - 1 - User manual memo NFC...
- Page 4 115 V AC VE340600 memo Y Daily/weekly or yearly time switch 1 channel with NFC interface 230 V AC VE342200 memo Y2 Daily/weekly or yearly time switch 1 channel with NFC interface 230 V AC - 2 - User manual memo NFC...
-
Page 5: Technical Features
16(10)A / 250V • Insulation: reinforced between accessible parts (front) and all - memo DW2, memo Y2: 2 monostable change-over relays with the other terminals maximum switchable load of 16(10)A / 250V - 3 - User manual memo NFC... -
Page 6: Safety Warnings
7) I n the electrical system upstream of the device must be installed a protection device against the overcurrents 8) The product can be used in environments with Measurement Category III and Pollution degree 2, according to the Standard EN 60730-1. - 4 - User manual memo NFC... -
Page 7: Wiring Diagrams
WIRING DIAGRAMS memo DW, memo Y memo DW2, memo Y2 - 5 - User manual memo NFC... -
Page 8: Display And Keyboard Description
Hardware reset active pulse program Key “Ok” + “C1” (3 sec): random switching channel 1 active manual program Key “Ok” + “C2” (3 sec): random switching channel 2 Day of the week (DAY) indication - 6 - User manual memo NFC... -
Page 9: Initial Operation
Keyboard lock with PIN: disabled (---) • The presence of the backup battery allows the memo to have NFC interface active updated date and time. To make the other settings follow the following steps: - 7 - User manual memo NFC... - Page 10 - battery status (only if discharged) - NO SUPPLy * • Press the key to access the menu of memo to change channel 1 and channel 2 status (only for memo DW2, memo Y2) - 8 - User manual memo NFC...
- Page 11 Access the store of your device, install and start the free app memo – Vemer. Memo Add memo - 9 - User manual memo NFC...
- Page 12 At the start the app displays the list of the associated memo devices (both Bluetooth and NFC). To associate a new memo NFC, press the symbol “+” in the upper right corner. In the “Choose connection type” screen, select NFC.
-
Page 13: Menu Description
(relay on) of the loads connected to the relays. “Reset” menu allows you to reset settings, programmed settings, operating hour counter. “Ver FW” menu allows you to check the firmware version installed on the device. - 11 - User manual memo NFC... -
Page 14: Settings Menu
“Settings” menu allows you to view and eventually to modify the general operation settings of memo, such as: language date time automatic daylight saving time (DST) change position (astronomical coordinates) interval duration between two random switchings keys protection by PIN - 12 - User manual memo NFC... - Page 15 Language setting menu Available languages: Italian, English, Spanish, French, German. Quick access: from the main page it’s possible to access the language setting by pressing the key for at least 3 seconds. - 13 - User manual memo NFC...
- Page 16 ( Choose, by convention, the first day of the week. In Italy, for example, the first day of the week is Monday, in the UK it’s Sunday. Enter the date: day, month, year. - 14 - User manual memo NFC...
- Page 17 Time setting menu Parameters modification Parameters modification Set the time: hours, minutes. - 15 - User manual memo NFC...
- Page 18 In Italy,for example, daylight saving time (DST) begins occurs the last ( ) Sunday ( ) of March ( ) at o’clock, and ends the last ( ) Sunday ( ) of October ( ) at o’clock. - 16 - User manual memo NFC...
- Page 19 ) the automatic time change. Set date and time of the winter time (CET) daylight saving time (DST) change. Set date and time of the daylight saving time (DST) winter time (CET) change. - 17 - User manual memo NFC...
- Page 20 Set the maximum duration. It’s possible to set values between the minimum duration and 23:59 hours. Note: setting the minimum duration equal to the maximum, the switchings will occur at fixed time intervals. - 18 - User manual memo NFC...
- Page 21 To disable PIN protection: - set “---” (located before 000 or after 999) Note: If you have forgotten your PIN code to unlock memo it’s necessary to carry out a hardware reset (see page 42). - 19 - User manual memo NFC...
-
Page 22: Program Menu
1 on channel 2 and vice versa (only for memo DW2, memo Y2) delete all programs of a channel - 20 - User manual memo NFC... - Page 23 1 to 7: - by pressing the key to move to the next day without selecting the current day - by pressing the key to select/deselect the current day and move to the next - 21 - User manual memo NFC...
- Page 24 Important: on the same channel can’t coexist holiday ON programs and holiday OFF programs (if a holiday ON program is already present, it’s not possible to save a holiday OFF program and vice versa). - 22 - User manual memo NFC...
- Page 25 * Date: select day, month, year (program carried “only once in the life of the product”). If the month is not specified, the program is carried out all days xx of all months of the specified year. - 23 - User manual memo NFC...
- Page 26 From this example it’s possible to see that the daily event on Monday is not carried out because in the same day it is provided the beginning of the week program (even if the daily program - 24 - User manual memo NFC...
- Page 27 Program menu: new Choose the channel Choose the channel to program (only for memo DW2 and memo Y2) - 25 - User manual memo NFC...
- Page 28 Program menu: new daily timed Enter program parameters Program parameters - on/off: on time and off time - on pulse: time and pulse duration (max 59 seconds) - off pulse: time and pulse duration (max 59 seconds) - 26 - User manual memo NFC...
- Page 29 - on pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days)* and pulse time, pulse duration (max 59 seconds) * See “Days selection” on page 21 - 27 - User manual memo NFC...
- Page 30 - on pulse: day (or days) * and pulse time, pulse duration (max 59 seconds) - off pulse: day (or days) * and pulse time, pulse duration (max 59 seconds) * see “How to choose the day (or days) in a yearly program” on p. 29 - 28 - User manual memo NFC...
- Page 31 Otherwise is signaled. of the specified VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year - 29 - User manual memo NFC...
- Page 32 HOLIDAY OFF: the relay is OFF from the beginning to the end of holiday program. HOLIDAY ON: the relay is ON from the beginning to the end of holiday program. Program parameters - beginning of the program - end of the program - 30 - User manual memo NFC...
- Page 33 Otherwise is signaled. of the specified VV month of all years of all months of the specified ZZ year of the specified VV month of the specified ZZ year - 31 - User manual memo NFC...
- Page 34 Note: a program requires more screens to be displayed: - press the key to move from the first to the second part of the same program - press the keys to switch from one program to another - 32 - User manual memo NFC...
- Page 35 Choose the Choose the Choose the channel period type Check programs - 33 - User manual memo NFC...
- Page 36 - press the keys key to switch from one program to another To modify: press for a long time (at least 3 seconds) the key To delete: press for a long time and simultaneously the keys - 34 - User manual memo NFC...
- Page 37 Choose the Choose the Choose the channel period type Modify/ Delete programs - 35 - User manual memo NFC...
- Page 38 Copy programs “Copy” menu allows copying the programs of a channel (origin channel) on the other channel (channels destination). Note: the programs previously stored on the channel destination will be deleted. - 36 - User manual memo NFC...
- Page 39 Program menu: delete Delete programs “Delete” menu is used to delete all stored programs on the specified channel. Note: to delete one single program to see “modify” mode (see page 34). - 37 - User manual memo NFC...
- Page 40 Warning: to make the NFC interface active, the memo must displays the main page (see page 8). The NFC interface is therefore not active when browsing through the memo NFC menus. To guarantee a stable communication, lay the smartphone on memo’s display.
- Page 41 - 39 - User manual memo NFC...
- Page 42 3 seconds until the display shows “ ” 3. confirm by pressing (press to exit without zeroing) Note: it’s possible to reset all counters contemporary from the “Reset” menu (see page 42). - 40 - User manual memo NFC...
- Page 43 Confirm delete - 41 - User manual memo NFC...
-
Page 44: Reset Menu
C2 C2 The hardware reset is also useful when you forget PIN protection. Reset, in fact, unlocks the keyboard for 3 minutes, the necessary time to access the appropriate menu and check/disable PIN. - 42 - User manual memo NFC... - Page 45 - 43 - User manual memo NFC...
-
Page 46: Firmware Menu
FIRMWARE MENU This menu shows the firmware installed in the device, where: 022 is the revision index 05 is the month 20 is the day - 44 - User manual memo NFC... -
Page 47: Error Signals
* In this case, carry out a hardware reset (see page 42). Two or more consecutive on events of the same If the error persists, contact Vemer technical support program / Two or more consecutive off events of (assistenza.tecnica@vemer.it). -
Page 48: Battery Management
EU CONFORMITY DECLARATION appears . In this case, the battery must be replaced as Vemer declares that the device complies with the EU directive soon as possible. Use only batteries of CR2032. 2014/53/EU (RED) with reference to the following standards: To replace the battery: •... - Page 50 Vemer S.p.A. I - 32032 Feltre (BL) • Via Camp Lonc, 16 09-2022 e-mail: info@vemer.it - web site: www.vemer.it...
