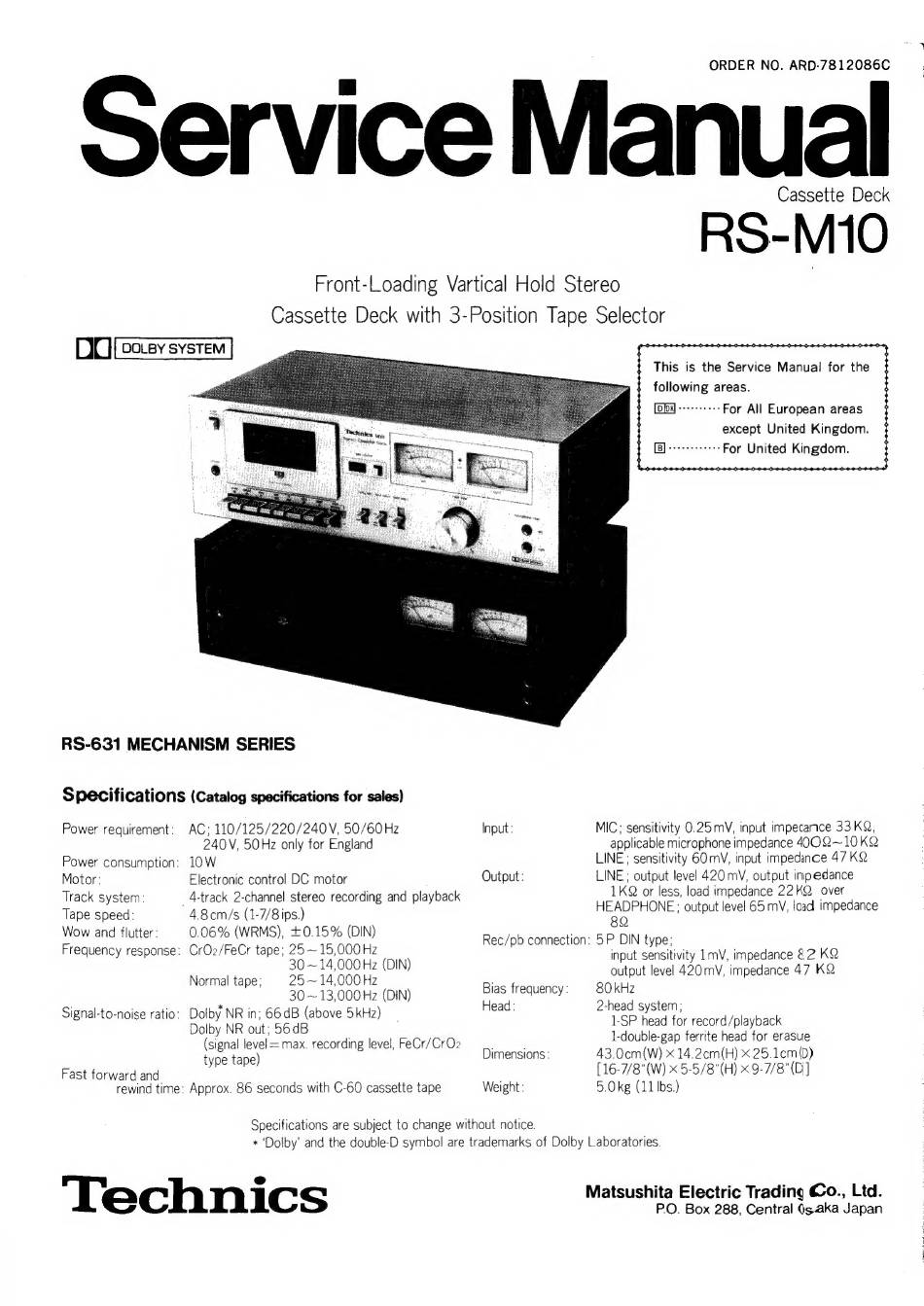

Technics RS-M10 Service Manual

ORDER NO. ARD-7812086C
Service Manual
Cassette Deck
RS-M10
Front-Loading Vartical Hold Stereo
Cassette Deck with 3-Position Tape Selector
DO toaiavsveren)
This is the Service Manual for the
following areas.
For All European areas
except United Kingdom.
For United Kingdom.
RS-631 MECHANISM SERIES
Specifications (Catalog specifications for sales)
Power requirement: AC; 110/125/220/240V, 50/60Hz Input: MIC; sensitivity 0.25 mV, input impecance 33 K2,
240V, 50Hz only for England applicable microphone impedance 4002~10 KQ
Power consumption: 10W
LINE; sensitivity 60 mV, input impedance 47 KQ
Motor:
Electronic control DC motor
Output:
LINE; output level 420 mV, output impedance
Track system: _4-track 2-channel stereo recording and playback 1KQ or less, load impedance 22 KQ over
HEADPHONE : output level 65 mV, load impedance
Tape speed: 4.8cm/s (1-7/8ips.) 80
Wow and flutter: 0.06% (WRMS), +0.15% (DIN)
F; Rec/pb connection: 5P DIN type;
requency response: CrO2/FeCr tape; 25 ~ 15,000 Hz input sensitivity ImV, impedance 82 KQ
30 ~ 14,000 Hz (DIN)
output level 420 mV, impedance 47 KQ
Normal tape; 25~ 14,000 Hz '
7 (DIN) Bias frequency : 80 kHz
30~13,000H Head Ser ere
bela _ Seetiaers ead: -head system;
Signal-to-noise ratio: Dolby NR in; 66dB (above 5kHz 1-GP. head ton tabord olay back
Dolby NR out; 56dB -
(signal level = max. recording level, FeCr/CrOz I-double-gap ferrite head for erasue
pane
Specifications are subject to change without notice.
* 'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.
e
i echnics
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central (gaka Japan
