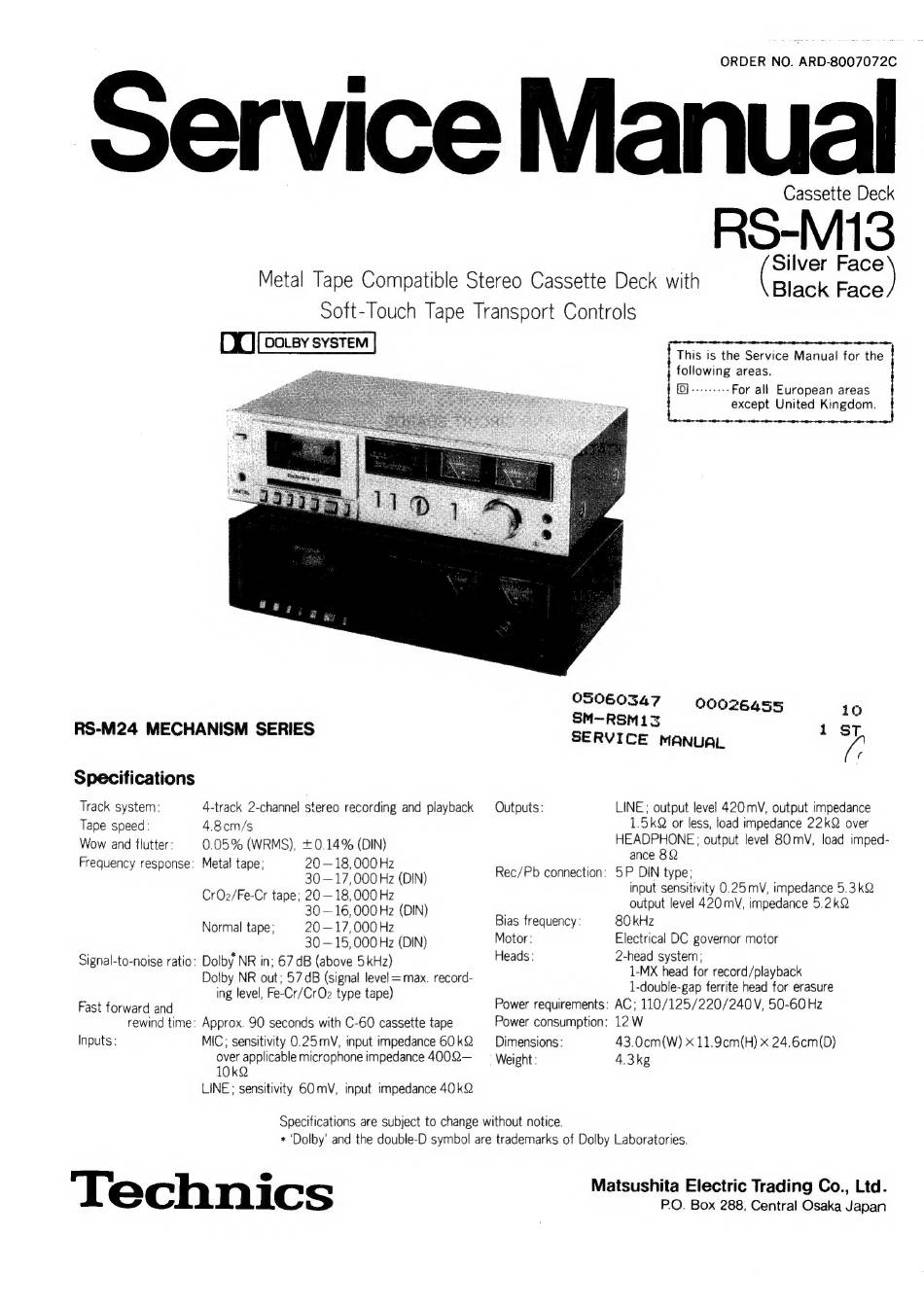

ORDER NO. ARD-8007072C
Service Manual
Cassette Deck
RS-Mi3
( Silver )
Soft-Touch Tape Transport Controls
Dd [eowevsvstew]
This is the Service Manual for the
following areas.
For all European areas
except United Kingdom.
10
SM—-RSM13
-
tat
1
RS-M24
MECHANISM
SERIES
SERVICE
MANUAL
ST,
;
Specifications
Track system:
4-track 2-channel stereo recording and playback
Outputs:
LINE; output level 420 mV, output impedance
Tape speed:
4.8cm/s
1.5kQ or less, load impedance 22kQ over
Wow and flutter'
0.05% (WRMS), +0.14% (DIN)
eget
ee
ete
ance
Frequency response:
Metal tape;
BEA
ae (DIN)
Rec/Pb connection:
5P DIN type;
CrO2/Fe-Cr
t a p e : 20—18.000 Hz
input sensitivity 0.25 mV, impedance 5.3kQ
ee
e316, 000H2 (DIN)
output level 420 mV, impedance 5.2kQ
Normal tape;
20—17,000Hz
Bias frequency: = 8O kHz
30—15,000Hz (DIN)
Motor:
Electrical DC governor motor
Signal-to-noise ratio: Dolby NR in; 67 dB (above 5kHz)
Heads:
2-head system,
Dolby NR out; 57 dB (signal level =max. record-
1-MX beep oe
playback
ing level, Fe-Cr/CrOz type tape)
1-double-gap ferrite head for erasure
Fast forward and
Power requirements: AC; 110/125/220/240V, 50-60 Hz
rewind time: Approx. 90 seconds with C-60 cassette tape
Power consumption: 12 W
Inputs:
MIC; sensitivity 0.25 mV, input impedance 60k
Dimensions:
43.0cm(W) x 11.9em(H) x 24.6cm(D)
ore
microphone impedance 4002—
— Weight:
4.3kg
LINE; sensitivity 60 mV, input impedance 40k2
Specifications are subject to change without notice.
* 'Dolby' and the double-D symbol are trademarks of Dolby Laboratories.
: i echn
a
Matsushita Electric Trading Co., Ltd.
ICS
P.O. Box 288, Central Osaka Japan
