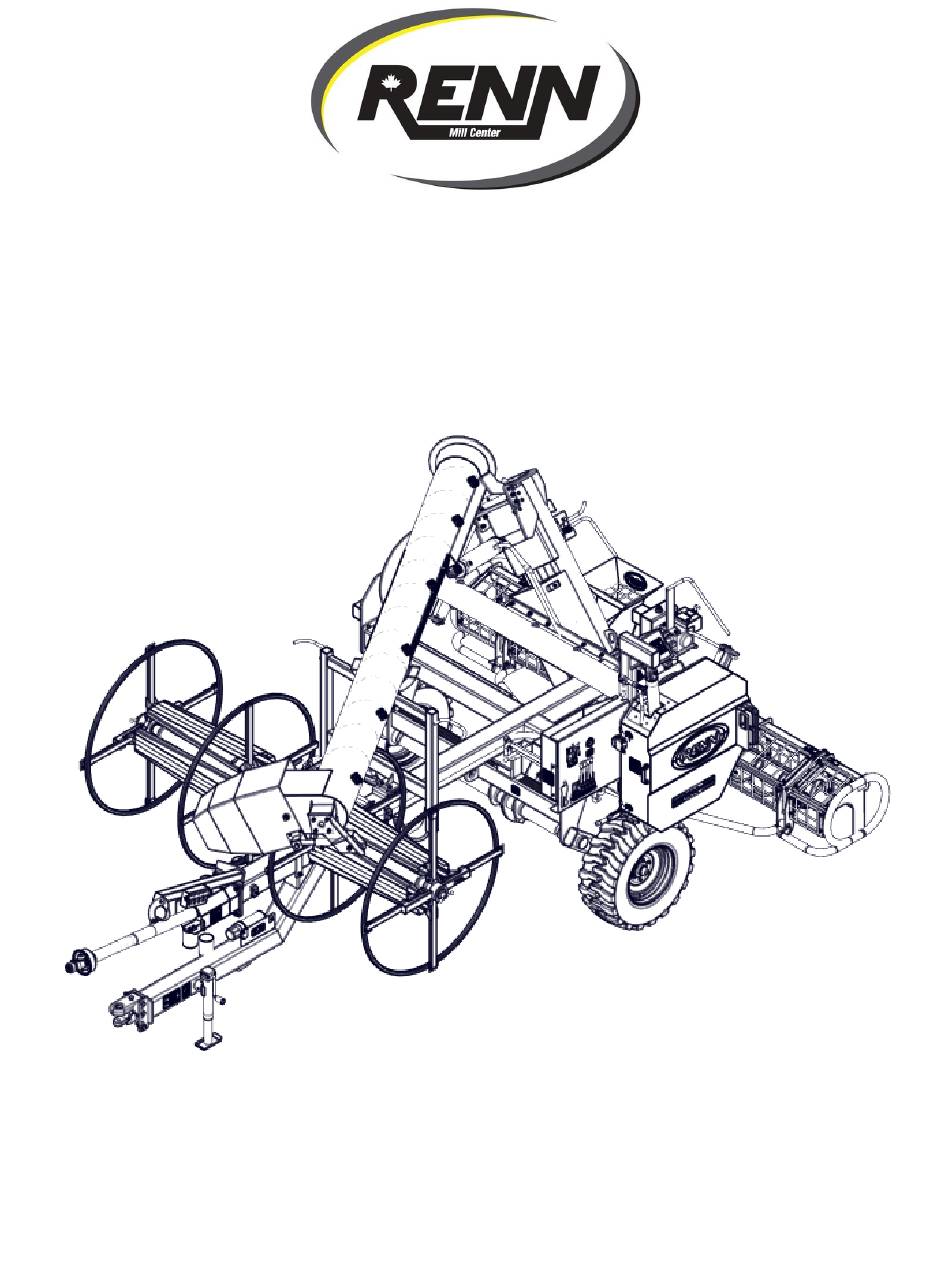

1014LS GRAIN UNLOADER
Operator's & Parts Manual
Model No. 980200-0015.03
RENN
Mill Center LP.
R.R. #4
Lacombe, Alberta, Canada
T4L 2N4
Phone: (403) 784-3518
Fax : (403) 784-2060
Email : rennmill@rennmill.com
www.rennmill.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1014LS and is the answer not in the manual?

Questions and answers

Related Manuals for RENN 1014LS

Summary of Contents for RENN 1014LS

  • Page 1 1014LS GRAIN UNLOADER Operator’s & Parts Manual Model No. 980200-0015.03 RENN Mill Center LP. R.R. #4 Lacombe, Alberta, Canada T4L 2N4 Phone: (403) 784-3518 Fax : (403) 784-2060 Email : rennmill@rennmill.com www.rennmill.com...
