RENN RMC 48A Operator's & Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

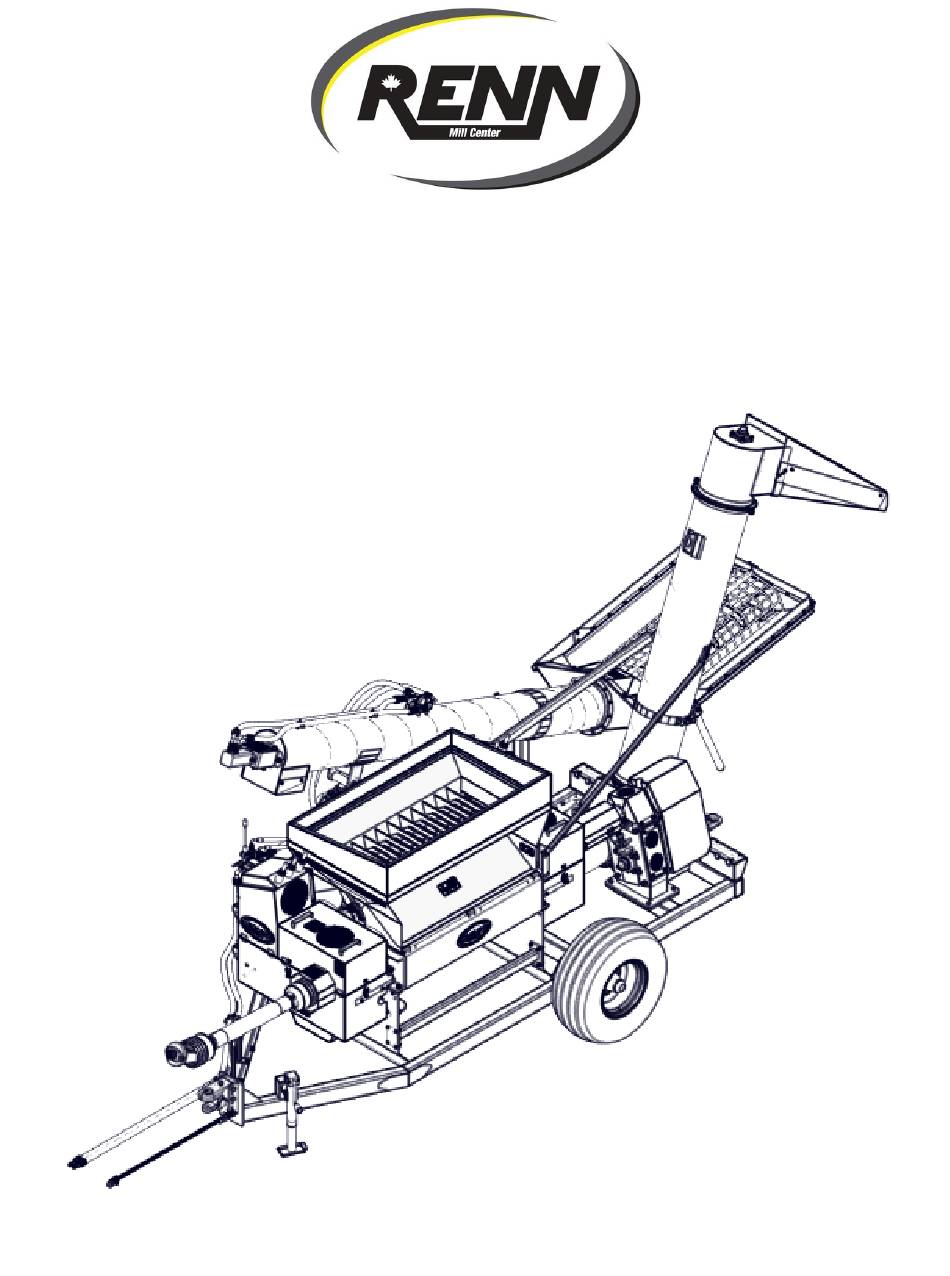

RMC 48A
Operator's & Parts Manual
P.T.O.
Model No. 974800-0025.02
RENN
Mill Center LP.
R.R. #4
Lacombe, Alberta, Canada
T4L 2N4
Phone: (403) 784-3518
Fax : (403) 784-2060
Email : rennmill@rennmill.com
www.rennmill.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RMC 48A and is the answer not in the manual?

Questions and answers

Related Manuals for RENN RMC 48A

Summary of Contents for RENN RMC 48A

  • Page 1 RMC 48A Operator’s & Parts Manual P.T.O. Model No. 974800-0025.02 RENN Mill Center LP. R.R. #4 Lacombe, Alberta, Canada T4L 2N4 Phone: (403) 784-3518 Fax : (403) 784-2060 Email : rennmill@rennmill.com www.rennmill.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Table of Contents ................... 1.1 Introduction ....................1.3 Renn Warranty Policy .................. 1.4 Mill Serial Number Location ...............1.5 2 Safety ......................2.1 2.1 General Safety ..................2.2 2.2 Operating Safety ................2.3 2.3 Maintenance Safety ................2.3 2.4 Hydraulic Safety ................

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 9 Troubleshooting Guide ..............9.1 10 Specifications ................10.1 10.1 General Specifications ..............10.1 10.2 Tire Specifications ................. 10.1 10.3 Bolt Torque Specifications ............10.1 10.4 Overall Dimensions ............... 10.3 11 Parts ....................11.1 11.1 Top Hopper ..................11.1 11.1.1 Top Hopper (Knob) ............

  • Page 4: Introduction

    We urge you to read the publication carefully and refer to it extensively for correct operating procedure. The Renn Auxiliary Mill is designed to give the operator a maximum capacity and working surface through the use of a large diameter roll. Added to this is a conven- ient method of roll removal and a new process of roll adjustment, giving the opera- tor infinite control of feed quality.
  • Page 5 To activate warranty coverage, the owner / dealer must complete the Warranty Registration form that can be found online and return to Renn Mill Center LP. R.R. 4, Lacombe, Alberta , Canada, T4L 2N4 within 30 days of retail sale. - 1.4 -...

  • Page 6: Mill Serial Number Location

    IMPORTANT: For fast, correct service when ordering parts, supply the following information to your local Renn Dealer: 1) The model number 2) The serial number This information is essential when ordering parts for your Renn Auxiliary Mill.

  • Page 7: Safety

    Safety Alert Symbol This Safety Alert symbol The Safety Alert symbol identifies important means safety messages on the Renn Mill and in the manual. When you see this symbol, be alert to the possibility of ATTENTION! personal injury or death. Follow the BE ALERT! instructions in the safety message.

  • Page 8: General Safety

    2 SAFETY You are responsible for the SAFE operation and maintenance of your Renn Auxiliary Mill. YOU must ensure that you and anyone else who is going to operate, maintain or work around the mill be familiar with the operating and maintenance procedures and related SAFETY infor- mation contained in this manual.

  • Page 9: Operating Safety

    2 SAFETY 2.2 Operating Safety 1. Read and understand the Operator’s Manual and all safety signs before using the machine. 2. Keep hands, feet, hair and clothing away from all moving and/or rotating parts. 3. Do not allow riders on the mill or tractor during operation or transportation. 4.

  • Page 10: Hydraulic Safety

    1. Keep safety decals clean and legible at all times. 2. Replace safety decals that are missing or have become illegible. 3. Replaced parts that displayed a safety decal should also display the same decal. 4. Safety decals are available through your authorized Renn Dealer. - 2.4 -...

  • Page 11: Safety Shield Placement

    2 SAFETY 2.7 Safety Shield Placement After servicing or maintenance, these shields should be back in place. Main / PTO Shield Cam Shield Rear Shield & Gearbox Cover Inspection Plate PTO: Front and Rear Covers Feed Auger Intake Shield - 2.5 -...

  • Page 12: Sign-Off Form

    2 SAFETY 2.8 Sign-off Form Make these periodic reviews of SAFETY Anyone operating and/or maintaining the and OPERATION a standard practice for all mill must read and clearly understand ALL of your equipment. We feel that an untrained of the Safety, Operating, and Maintenance operator is unqualified to operate this ma- information presented in this manual.
  • Page 13 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 14: Decal Locations

    3 DECAL LOCATIONS 3.1 Safety Decal Locations The types of safety decals and locations on the equipment are shown in the following illustra- tions. Good safety requires that you familiarize yourself with the various safety decals, the type of warning and the area, or particular function related to that area, that requires your SAFETY AWARENESS.
  • Page 15 3 DECAL LOCATIONS 3.1 Safety Decal Locations - 3.2 -...

  • Page 16: Information Decal Locations

    3 DECAL LOCATIONS 3.2 Information Decal Locations The types of informational and operational decals and locations on the equipment are shown in the following illustrations. Good operation requires that you famil- iarize yourself with the various operational decals, the type of warning and the ar- ea, or particular function related to that area, that requires your AWARENESS.
  • Page 17 3 DECAL LOCATIONS 3.2 Information Decal Locations - 3.4 -...

  • Page 18: Operation

    4 OPERATION 4.1 To the New Operator or Owner The Renn Auxiliary Mill is designed to receive dry grain from an auger, process it, and deposit it via the discharge auger. Be familiar with the machine before starting. In addition to the design and configuration of equipment, hazard control and accident preven-...

  • Page 19: Setting Up The Roller Mill

    4 OPERATION Setting up the Roller Mill 4.4.1 Roll Setting Figure 4.1 Figure 4.2 Loosen the wing nuts holding down the top hopper (Figure 4.2) and tip it over center, rotating on the hinge pin until it hits the stoppers. If using flat rolls to roll dry grain, set the rolls a very small distance apart.

  • Page 20: Roll Gap Adjustment

    4 OPERATION 4.4.2 Roll Gap Adjustment The cam control ( Figure 4.4) serves as a mechanism to make roll gap adjustments accurately and quickly using a 3/4” wrench or socket. The cam positional indicator is set at the factory to the “1”...

  • Page 21: Feed Gate Control

    4 OPERATION 4.4.3 Feed Gate Control Set the friction knob (Figure 4.5) so that it supports the weight of the feed gate and yet allows the gate to be opened and closed by hand. Note that the setting of the feed gate helps to spread the feeding of grain evenly across the face of the roll.

  • Page 22: Roll Drive Belt Tension

    4 OPERATION 4.4.5 Roll Drive Belt Tension To increase belt tension, loosen the jam nut and turn tensioning bolt until approximately 15lbs of force at the center of the longest belt span causes a 3/8” deflection. Reset the jam nut to lock the adjustment bolt in place.

  • Page 23: Spring Pressure

    4 OPERATION 4.4.6 Spring Pressure To increase spring pressure, loosen the jam nut and turn the spring push bolt inward a 1/2 turn at a time. Setting the pressure higher than necessary is hard on the bearings and the roll surfaces when hard particles like rocks go through the rolls.

  • Page 24: Transfer Auger Set Up

    4 OPERATION 4.4.8 Transfer Auger Set Up 1. Hitch Height Level the mill with the tractor for best results. 2. Set up & Using the Transfer Auger A) Open the over-center latch on the transfer auger support holding the transfer auger to the mill trailer (Figure 4.12).

  • Page 25: Operating The Auxiliary Roller Mill

    4 OPERATION 4.5 Operating the Auxiliary Roller Mill 1. Make sure to read and understand all of the safety items in Section 2. 2. Ensure that the feed gate is closed (Figure 4.5) before starting the mill. Even a few grains will keep the rolls from turning.

  • Page 26: Service And Maintenance

    5 SERVICE AND MAINTENANCE 5.1 Servicing Record See Lubrication and Maintenance sections for details of service. Copy this page to continue record. ACTION CODE: CL…….CLEAN T……...TIGHTEN L……….LUBRICATE CH…….CHECK Hours Serviced MAINTENANCE 8 Hours of Driveline Use U-Joint - PTO U-Joint , Bearings- Transfer Auger Main Bearings - Rolls Cross Auger Bearing Discharge Auger Bearing...

  • Page 27: Servicing Intervals

    5 SERVICE AND MAINTENANCE 5.2 Servicing Intervals Grease Use an S.A.E. multi-purpose high temperature grease with extreme pressure (EP) performance. An S.A.E. multi-purpose lithium base grease is also acceptable. Use the Maintenance Checklist provided to keep a record of all scheduled maintenance. 1.
  • Page 28 5 SERVICE AND MAINTENANCE 5.2 Servicing Intervals Cam adjuster bearings (grease lightly Jack: grease zerk every 50 hours) (once per season) Wheel hub: grease zerk and torque bolts Feed Auger Support Bearings (once per season) For discharge gearbox oil level check - 1.

  • Page 29: Removal Of Rolls For Servicing

    5 SERVICE AND MAINTENANCE 5.3 Removal Of Rolls For Servicing 1. With power disconnected, loosen the jam nuts on each of the spring push bolts and relieve all pressure from the spring (see section 4.4.6). 2. Relieve the tension on the roll drive belts and remove. 3.

  • Page 30: Pdi Setup

    6 PDI SETUP Your Renn Auxiliary Mill is shipped fully assembled. Take all necessary precautions when moving and operating the equipment. Note: All hoses should be on the hose hanger when not in use. IMPORTANT: Retorque wheels before towing or any operation. Refer section 10 for torque specification.
  • Page 31 6 PDI SETUP How to use the hose hanger: A) Open the quick pin that is holding the lock plate and the front panel of the hose hanger (Figure 6.1). B) Rotate the lock plate clockwise (Figure 6.2). If the lock plate is too tight, loosen the bolt at the bottom of the lock plate.

  • Page 32: Transportation

    7 TRANSPORTATION 1. Check with local authorities regarding mill transportation on public roads. Obey all appli- cable laws and regulations. 2. Always travel at a safe speed. Use caution when going around corners or meeting traffic. 3. Make sure an SMV (Slow Moving Vehicle) emblem and all the lights and reflectors that are required by local highway and transportation authorities are in place, are clean and can be seen clearly by all overtaking and oncoming traffic.

  • Page 33: Storage

    8 STORAGE 8.1 Placing in Storage At the end of the operating season, the machine should be thoroughly inspected and prepared for storage. Repair or replace any worn or damaged components to prevent any unnecessary down time at the beginning of the next season. Follow this procedure: 1.

  • Page 34: Troubleshooting Guide

    9 TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Whole grain in sample Wear plate not adjusted. With power disconnected & rolls not rotating, use a 3/4” wrench to loosen the jam nut on the wear plate adjust- er. Adjust the wear plates in so that there is minimal clearance between the end of the rolls &...
  • Page 35 9 TROUBLESHOOTING GUIDE PROBLEM CAUSE REMEDY Wear plates and poly ‘V’, roll Grain smaller than the space Need finer groove pattern. gap & spring pressure set between the grooves. properly, still whole grain in Rolls need re-grooving or are sample no longer true (badly worn).

  • Page 36: Specifications

    10 SPECIFICATIONS 10.1 General Specifications Weight ............................9138 lbs Minimum Tractor Horsepower.................... 150 hp - PTO Auger Discharge Size.......................... 14” Transfer Auger Size ........................... 12” 10.2 Tire Specifications Tire/Rim ..................... 12-16.5 12 ply Super Transporter Tire Pressure ......................Check Tire for Info 10.3 Bolt Torque Specifications Wheel 8 Bolts/Nuts 812 Hub ..................
  • Page 37 10 SPECIFICATIONS - 10.2 -...

  • Page 38: Overall Dimensions

    10 SPECIFICATIONS 10.4 Overall Dimensions 10.4.1 Working Mode - 10.3 -...
  • Page 39 10 SPECIFICATIONS 10.4 Overall Dimensions 10.4.2 Transport Mode - 10.4 -...

  • Page 40: Parts

    11 PARTS 11.1 Top Hopper REF # PART # DECRIPTION 614800-0011.00 48" Roller Mill Grate Magnet 170000-0180 Cotter Pin - 3/16" x 1" 614800-0008.00 Hinge Pin - Top Hopper 414800-0520.00 Top Hopper Grain Containment Belt 167200-0648 Nyloc Nut - 5/16" NC Gr.5 PL 168000-0040 Flat Washer - 5/16"...
  • Page 41 11 PARTS 11.1 Top Hopper - 11.2 -...

  • Page 42: Top Hopper (Knob)

    11 PARTS 11.1.1 Top Hopper (Knob) REF # PART # DECRIPTION 168000-0049 Flat Washer - 3/8" USS PL 163000-0506 Carriage Bolt 3/8" NC x 3/4" Gr.5 PL 168000-0540 Flat Washer - 3/8" SAE 167200-0412 Lock Nut - 3/8" NC 140000-0224 Lock Knob 168600-0071 Lock Washer - 3/8"...
  • Page 43 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 44: Roller Mill - Upper Half

    11 PARTS 11.2 Roller Mill - Upper Half REF # PART # DECRIPTION 159400-0430 Hex Bolt - 1/2" NC x 2-1/2" Gr.5 PL 167100-0995 Wing Nut 1/2" NC 615100-0765.00 Brg Hold-Down Bracket - Mill Frame - 2020 159400-0401 Hex Bolt - 1/2" NC x 1-1/2" Gr.5 PL 168600-0098 Lock Washer - 1/2"...
  • Page 45 11 PARTS 11.2 Roller Mill - Upper Half - 11.5 -...

  • Page 46: Worm Drive Roll Adjustment

    11 PARTS 11.3 Worm Drive Roll Adjustment REF # PART # DECRIPTION 159400-0636 Hex Bolt - 5/8" NC x 2-1/2" Gr.5 PL 168000-0580 Flat Washer - 5/8" SAE PL 167200-0690 Nyloc Nut - 5/8" NC Gr.5 PL 159400-0580 Hex Bolt - 5/8" NC x 1" GR5 PL 168600-0120 Lock Washer - 5/8"...
  • Page 47 11 PARTS 11.3 Worm Drive Roll Adjustment 168600-0071 Lock Washer - 3/8" PL 615100-0527.00 Bearing Cam Base 414000-0239.00 Cam Pivot Pin - 1" x 2-1/2" 113500-0126 Oilite Bushing - 1" x 1-1/4" x 1" 615100-0705.02 Pivot Eye Rod 615100-0704.02 Main Adjuster Arm - 11.7 -...

  • Page 48: Multi-Belt Differential Drive & Shield - Front

    11 PARTS 11.4 Multi-Belt Differential Drive & Shield - Front REF # PART # DECRIPTION 154000-0141 Catch - Overcenter Latch - 4.7" 159300-0520 Stove Bolt - #10-24 x 1/2" 167000-0520 Hex Nut - #10-24 PL 154000-0140 Overcenter Latch - 4.7" 159300-0520 Stove Bolt - #10-24 x 1/2"...
  • Page 49 11 PARTS 11.4 Multi-Belt Differential Drive & Shield - Front REF # PART # DECRIPTION 303100-0204 Compression Spring - 1.75" OD x 3.41" Long 167000-0835 Hex Nut - 3/4" NC Gr.5 PL 415000-0726.00 Tensioner Rod - 3/4" NC 168000-0090 Flat Washer - 3/4" USS PL 615000-0904.01 Front Idler Housing 615000-0972.00...

  • Page 50: Multi-Belt Differential Drive & Shield - Rear

    11 PARTS 11.5 Multi-Belt Differential Drive - Rear REF # PART # DECRIPTION 159400-0401 Hex Bolt - 1/2" NC x 1-1/2" Gr.5 PL 415000-0703.02 Idler Anchor Plate 167200-0688 Nyloc Nut - 1/2" NC Gr.5 PL 124000-0020 Pulley - 8C7 Finished Bore - RA104 Brg Cavity 114100-0021 1-1/4"...
  • Page 51 11 PARTS 11.5 Multi-Belt Differential Drive - Rear - 11.11 -...

  • Page 52: Multi-Belt Differential Shield - Rear

    11 PARTS 11.6 Multi-Belt Differential Shield - Rear REF # PART # DECRIPTION 154000-0141 Catch - Overcenter Latch - 4.7" 159300-0520 Stove Bolt - #10-24 x 1/2" 167000-0520 Hex Nut - #10-24 PL 154000-0140 Overcenter Latch - 4.7" 159300-0520 Stove Bolt - #10-24 x 1/2" 167000-0520 Hex Nut - #10-24 PL 470000-1340.00...
  • Page 53 11 PARTS 11.6 Multi-Belt Differential Shield - Rear - 11.13 -...

  • Page 54: Bottom Hopper

    11 PARTS 11.7 Bottom Hopper REF # PART # DECRIPTION 670000-0234.00 12" Transition Tube - Cross Auger - Diff Aux 674800-0027.00 Rear Panel Weldment 674800-0130.00 12" Cross Auger - 22deg Gbx - Diff Aux 159400-0401 Hex Bolt - 1/2" NC x 1-1/2" Gr.5 PL 167200-0688 Nyloc Nut - 1/2"...
  • Page 55 11 PARTS 11.7 Bottom Hopper - 11.15 -...

  • Page 56: Pulley Tensioner

    11 PARTS 11.8 Pulley Tensioner REF # PART # DECRIPTION 415400-0015.00 0.75" Spacer Bar - Idler Assembly 163100-0145 Carriage Bolt - 3/4" NC x 4-1/2" Gr.5 PL 412400-0518.04 1/2" Spacer - Idler Tensioner 474800-1087.02 Tensioner Slide Bracket - Offset BH 168000-0080 Flat Washer - 5/8"...

  • Page 58: Drive Box

    11 PARTS 11.9 Drive Box REF # PART # DECRIPTION 470000-1341.00 Output Shield - Belt Reduction 374000-0009 PTO Adaptor - 1-3/4" 20-Spline x 1-3/8" 21-Spline 374000-0006 PTO Adaptor - 1-3/4" 20-Spline x 1-3/8" 6-Spline 114000-0262 Bearing - Pillow Block 1-1/516" ID NTN (UELP-1.15/16M) 670000-0566.00 End Cover Shield Weldment - Belt Speed Reduction 2022 167200-0690...
  • Page 59 11 PARTS 11.9 Drive Box - 11.18 -...

  • Page 60: Drive Box Assembly

    11 PARTS 11.9.1 Drive Box Assembly REF # PART # DECRIPTION 167000-0835 Hex Nut - 3/4" NC Gr.5 PL 168600-0127 Lock Washer - 3/4" NC PL 470000-1259.00 Cross Rod - Belt Reduction 470000-1132.00 Output Shaft - Belt Reduction 144700-0743 48" SC (34-63 Belt Reduc) 474900-0842.00 34-14MX90-6F MPB Timing Pulley - Finished Bore 1.94 143600-0011...
  • Page 61 11 PARTS 11.9.1 Drive Box Assembly - 11.20 -...

  • Page 62: Trailer Assembly

    11 PARTS 11.10 Trailer Assembly REF # PART # DECRIPTION 674800-0129.00 48" Diff Drive Aux , Mech'l Disch, RedBox 341100-0050 Jack - 7000lb x 10" - Side Wind 159400-0628 Hex Bolt - 5/8" NC x 2" Gr.5 168000-0580 Flat Washer - 5/8" SAE PL 167200-0690 Nyloc Nut - 5/8"...
  • Page 63 11 PARTS 11.10 Trailer Assembly - 11.22 -...
  • Page 64 11 PARTS 11.10.1 Hub Assembly (340800-0812) REF # PART # DECRIPTION 340100-0017 Seal 115000-0040 Inner Cup 340000-0812 HUB 8 Bolt, 8"PCD, 6" Pilot 340300-0010 Wheel Bolt 1/2"-20 UNF x 1-1/4" 114500-0019 Outer Cone 170000-0200 Cotter Pin - 3/16" x 2" 340200-0017 Dust Cap 340700-0033...
  • Page 65 THIS PAGE INTENTIONALLY LEFT BLANK...

  • Page 66: Discharge Auger

    11 PARTS 11.11 Discharge Auger REF # PART # DECRIPTION 167200-0690 Nyloc Nut - 5/8" NC Gr.5 PL 670000-0032.00 ROTATING HANDLE WELDMENT 159400-0725 Hex Bolt - 5/8" NC x 4-1/2" Gr.5 PL Swivel Head Assembly - 14" x 8' Mech Disch - Slide-on 670000-0170.00 Spout 168000-0540...
  • Page 67 11 PARTS 11.11 Discharge Auger - 11.25 -...

  • Page 68: Gearbox Assembly

    11 PARTS 11.12 Gearbox Assembly REF # PART # DECRIPTION 155500-0120 Band Clamp - 12" 674800-0029.00 12" - 14" Mech. Gearbox Weldment 159300-0979 Hex Bolt - 3/8" NC x 1-1/4" Gr.5 PL 168600-0071 Lock Washer - 3/8" PL 474800-0098.00 Mount Plate - Superior Gearbox R20A 168000-0580 Flat Washer - 5/8"...
  • Page 69 11 PARTS 11.12 Gearbox Assembly - 11.27 -...

  • Page 70: Transfer Auger

    11 PARTS 11.13 Transfer Auger 11.13.1 Transfer Auger - Lift and Swing Pedestal REF # PART # DECRIPTION 167200-0694 Nyloc Nut - 1" NC Gr.5 PL 168000-0139 Flat Washer - 1" USS PL 670000-0523.00 Tee Post - Lift and Swing 133200-0040 Grease Nipple - 1/8"...
  • Page 71 11 PARTS 11.13.1 Transfer Auger - Lift and Swing Pedestal - 11.29 -...
  • Page 72 11 PARTS 11.13.2 Transfer Auger - Upper Section REF # PART # DECRIPTION 470000-0214.00 Rubber Belting - 3/16" x 4" 159300-0961 Hex Bolt - 3/8" NC x 1" Gr.5 PL 168000-0540 Flat Washer - 3/8" SAE 167200-0652 Nyloc Nut - 3/8" NC Gr.5 PL 159400-0628 Hex Bolt - 5/8"...
  • Page 73 11 PARTS 11.13.2 Transfer Auger - Upper Section - 11.31 -...
  • Page 74 11 PARTS 11.13.3 Transfer Auger - Hopper Body REF # PART # DECRIPTION 470000-0225.00 End Yoke Series 14 1-1/4" Bore w/ Cross Hole 159400-0005 Hex Bolt - 3/8" NC x 3" Gr.5 PL 414000-0856.00 1/4" Keystock x 1-3/4" 671300-0293.00 Bushing Support Assembly 113500-0135 Oilite Bushing - 1-1/4"...
  • Page 75 11 PARTS 11.13.3 Transfer Auger - Hopper Body - 11.33 -...

  • Page 76: Transfer Auger Hydraulics

    11 PARTS 11.14 Transfer Auger Hydraulics 11.14.1 Transfer Auger Hydraulics - Lift REF # PART # DECRIPTION 107700-0020 3" Bore x 10" Storke Hyd Cylinder 107200-0532 Hydraulic Cylinder 3" Bore x 10" Stroke 086800-0808 90° Elbow - #8 ORB x #8 JICM-sw 082500-0813 90°...
  • Page 77 THIS PAGE INTENTIONALLY LEFT BLANK...
  • Page 78 11 PARTS 11.14.2 Transfer Auger Hydraulics - Drive REF # PART # DECRIPTION 111200-0026 Hydraulic Motor - 2000 Series 9.6cu.in. ORB 086400-0820 Hex Nipple - #10 ORBM x #12 JICM 073800-0912 Hose End - 3/4" Dia x #12 90JICFsw H75000-0250 HYD HOSE 2WB THIN COVER 3/4"...

  • Page 79: Transfer Auger Hydraulics - Drive

    11 PARTS 11.14.2 Transfer Auger Hydraulics - Drive - 11.36 -...

  • Page 80: Hose Hanger

    11 PARTS 11.15 Hose Hanger REF # PART # DECRIPTION 161500-0498 Quick Pin, 3/8" x 1-5/8" 414000-0991.00 Lock Plate - Hose Hanger (1 set) 614000-0320.00 Hose Hanger (1 set) 670000-0199.00 Mounting Bracket - Bolt-on - Dir Control Valve 159300-0961 Hex Bolt - 3/8" NC x 1" Gr.5 PL 167200-0652 Nyloc Nut - 3/8"...

  • Page 81: Roll Bushing Assembly - B-Loc Bushing

    11 PARTS 11.16 Roll Bushing Assembly - B-Loc Bushing [ #2 ] [ #1 ] [ #3 ] Tightening Roll Size B-Loc B-Loc Hub Socket Head Cap Screw Torque Dia. x Length Spacer Ring Part # & I/D (QTY) & Size (ft-lbs) &...
  • Page 82 Notes - 12.1 -...
  • Page 83 Notes - 12.2 -...
  • Page 84 Printed in Canada RENN MILL CENTER LP. RR#4, Lacombe, AB, T4L 2N4, Canada | P. 403.784.3518 | F 403.784.2060 | rennmill@rennmill.com | rennmill.com...
