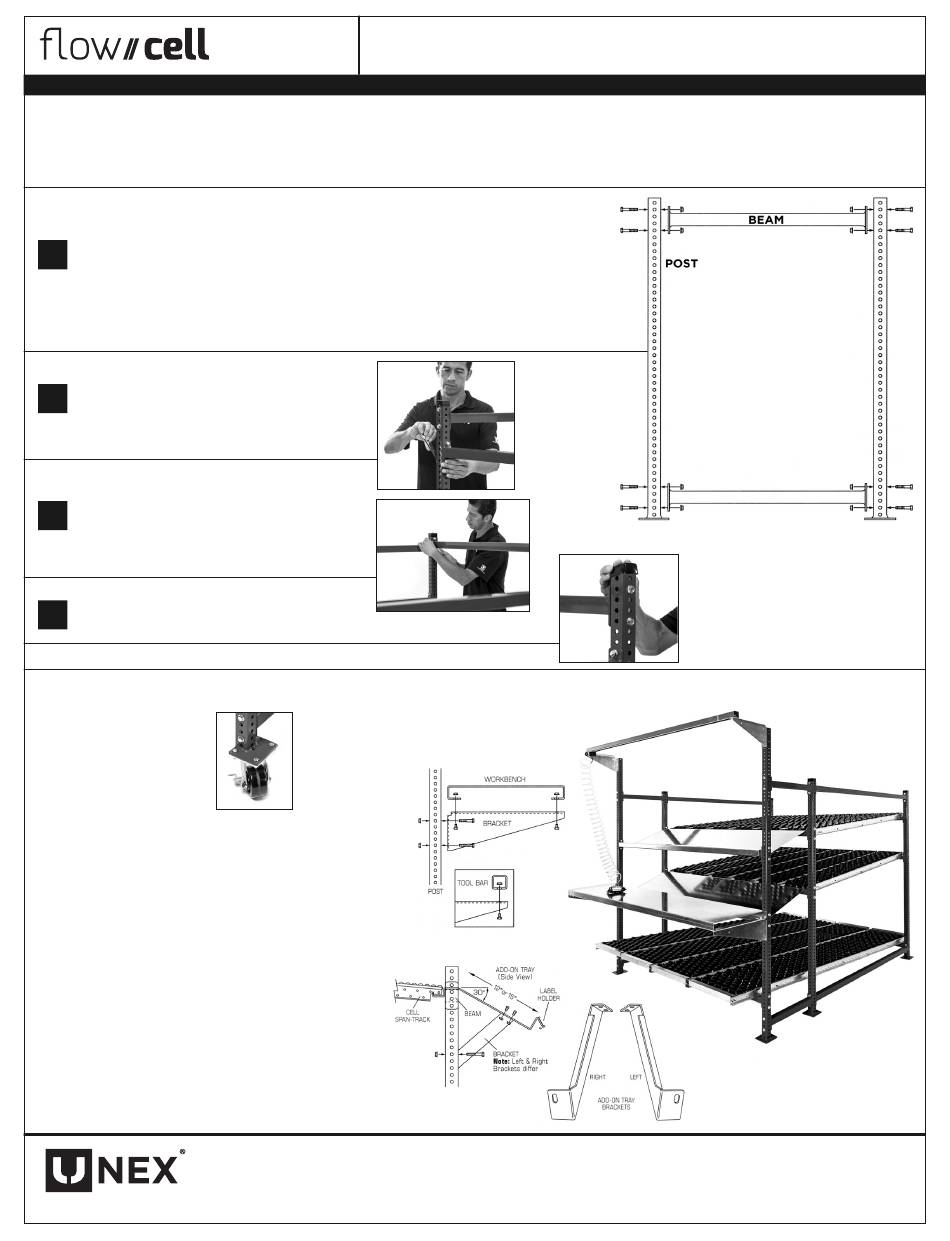

Unex FlowCell Assembly Instructions

For detailed video installation instructions, please go to: www.unex.com/instructions
A FlowCell modular unit starts with a framework of vertical Posts & horizontal Beams (FlowCell Structure)
bolted together with 3/8"-16 hardware (included)—only one wrench size (9/16") is required.
This base structure plus SpanTrack carton flow track and any of several optional features
complete the FlowCell assembly.
FlowCell Structure
Attach side Beams (2) to Posts (2) for each side of cell — one high,
1
one low. FlowCell with Tool Bar will have 2 longer posts at front.
Note: Ensure foot plates oriented in the same direction. If using rigid
casters, align long dimension of plates in direction cell is to roll.
The 3/8"- 16 UNC GRADE 2 hardware used to assemble the FlowCell
has a recommend torque of 20 lb-ft.
Join the 2 sides by bolting on front
2
beams at discharge heights at front of
cell. For return lane front beam would
be at load height.
Bolt on rear beams for each level
3
approximately 1" higher per foot than
front beams. Recommended pitch is 1
inch for every 1 foot of rack depth.
4
Slip plastic End Caps onto posts.
FlowCell Options
CASTERS
Attach casters to foot
plates using 3/8" bolts.
(provided)
WORKBENCH
Attach shelf brackets (2) to posts at desired height
using 3/8 bolts. Attach workbench, inserting 4
bolts from below.
OVERHEAD TOOL BAR
Attach brackets (2) at top of front posts using 3/8"
bolts. Attach tool bar strut channel with 2 bolts
inserted from below, and 2 strut nuts.
ADD-ON TRAY
Attach tray brackets to tray. Hang back of tray
over front beam. Bolt brackets to posts. Attach
full-length Label Holder to front surface of
Add-On Tray using two-sided tape (provided
on back side of Label Holder).
Engineered Space Optimization
(all necessary brackets and hardware are included)
UNEX MANUFACTURING, INC.
691 New Hampshire Avenue, Lakewood, NJ 08701
800.334.UNEX (8639) • e-mail: span@unex.com • unex.com
ASSEMBLY INSTRUCTIONS
NOTE: Before
attaching side Beams,
determine front &
rear Beam positions
(be sure to consider
pitch), since side
Beams cannot share
Post locations with
front & rear Beams.
