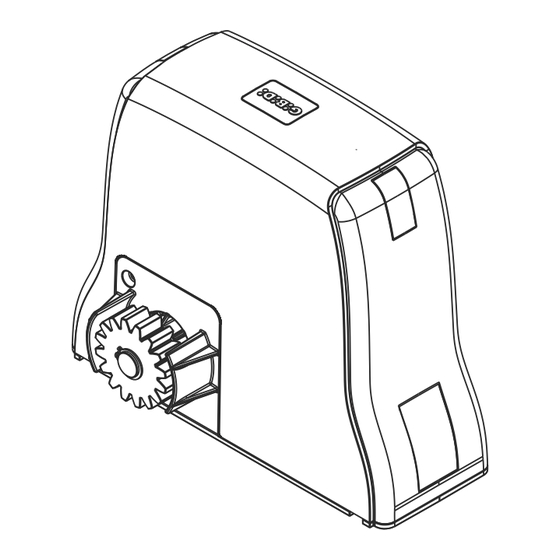

- Page 1 SL - (544) Electromechanical gearmotor INSTRUCTIONS FOR INSTALLATION...
- Page 2 SL 544 0÷50 mm SL 544 0÷50 mm...
- Page 3 5-12 mm 35 mm...
- Page 4 5-12 mm 35 mm STOP STOP CLOSING OPENING...
- Page 5 STOP STOP OPENING CLOSING...
- Page 7 n°2; M5 x 10 mm 322 mm 415 mm 200 mm 415 mm...
-
Page 8: Warnings For The Installer
INTRODUCTION The new 24V gearmotor SL 544 allows easily and quickly automating small to medium-sized sliding gates of up to 500Kg. The automated device with integrated control unit facilitates system certification in accordance with EN125453. WARNINGS FOR THE INSTALLER • Before proceeding with installation, fit a magnetothermal and differential switch with a maximum capacity of 10A upstream of the system. -
Page 9: Warnings For The User
9- Omnipolar magnetothermal switch with minimum contact opening of 3 mm Power supply line to the control unit 220-230V, 50-60Hz, 3x1.5 mm² cable (comply with the current standards). TECHNICAL DATA Operator SL 544 Type Irreversible electromechanical gearmotor Supply voltage 220/230Vac 50-60Hz... -
Page 10: Preliminary Warnings
PRELIMINARY WARNINGS Check that the gate structure is in conformity with the regulations in force and that leaf movement is linear without friction. Preliminary checks: • Check that the gate structure is sufficiently robust. In any case, check that the weight and dimensions of the gate fall within the limits of use of the operator;... -
Page 11: Unlocking Device
FITTING THE RACK 1- Manually move the gate to the closed position; 2- unlock the gearmotor (see paragraph Unlocking Device); 3- arrange the rack (optional)(10 - 11 - 12); 4- place the first element of the rack on the pinion in such a way that it protrudes 50 mm from the gearmotor (13) creating the space required for the limit switch bracket;... -
Page 12: Final Tests
• check proper functioning of the unlocking device (see the relative paragraph); • check that there is no dirt or fragments on the pinion. Gi.Bi.Di. S.r.l. reserves the right to change the technical data without prior notice in relation to product development. - Page 13 CE Declaration of conformity The manufacturer: GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B, 46025 Poggio Rusco (MN) ITALY Declares that the products: ELECTROMECHANICAL GEARMOTOR SL 544 Are in conformity with the following CEE Directives: Directive 2006/95/CE and subsequent amendments; • •...
- Page 14 NOTES...
- Page 15 NOTES...
- Page 16 GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B 46025 Poggio Rusco (MN) - ITALY Tel. +39.0386.52.20.11 Fax +39.0386.52.20.31 E-mail: info@gibidi.com Numero Verde: 800.290156 w w w . g i b i d i . c o m...
