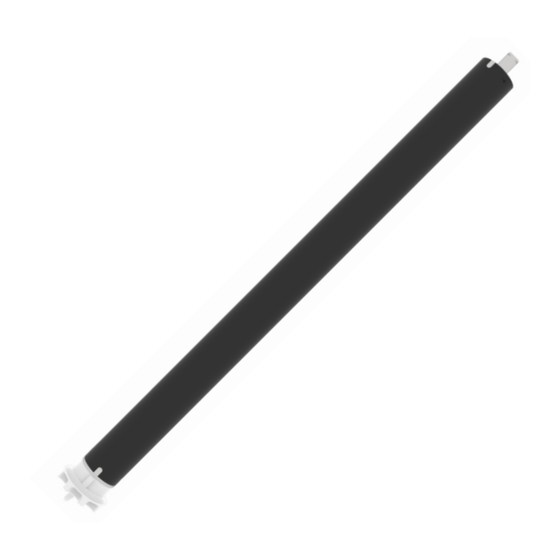

- Page 1 RUNNER REB REB59 80/12 Electronic tubular motor REB59 100/12 INSTRUCTION FOR INSTALLATION REB59 120/9...
- Page 2 READ CAREFULLY THIS MANUAL BEFORE PROCEEDING WITH THE INSTALLATION. WARNINGS: This product has been tested in GI.BI.DI. for full compliance with the requirements of the directives in force. GI.BI.DI. S.r.l. reserves the right to change the technical data without prior notice, in relation to product development.
- Page 3 RUNNER REB WARNING: IMPORTANT SAFE INSTRUCTION It is important to follow these instruction to safeguard people. Keep this instruction manual. TECHNICAL DATA Operator RE59 80/12 RE59 100/12 RE59 120/9 80Nm 100Nm 120Nm Nominal torque 12rpm 12rpm 9rpm Nominal speed 55mm 55mm 55mm Tube diameter...
- Page 4 RUNNER REB INSTALLATION Put the adapter crown (5) on the base crown of the limit switch (7), being sure that the two reference joints (12 and 13) match. Ÿ Put the driving pulley (2) on the output pinion (3). Ÿ After putting the driving pulley on the output pinion, block it with the clip (1).
- Page 5 RUNNER REB START UP: 1 - First transmitter storage proceed within 5 seconds, Click-Clak Click-Clak after giving voltage to the motor 2” Warning: next actions of the curtain / roller shutter must be done hold-to-run (operation par. 5). If the ascent and descent buttons of the transmitter stored are right, proceed to the par. 3, on the contrary to par. 2. 2 - Rotation direction modification Click-Clak 1”...
- Page 6 RUNNER REB 4 - Limit switch removal It is possible to remove either one limit switch or all the limit switches. The procedure can be made with the roller shutter / curtain in any position. 5c - Remove intermediate limit switch 5a - Remove descent limit switch 5b - Remove ascent limit switch Follow the same procedure...
- Page 7 Download instruction in English Descarga instrucciones en Español Téléchargements instructions en Français Declaration of UE manufacturer: The UE Declaration of Conformity is available at http://conformity.gibidi.com GI.BI.DI. S.r.l. reserves the right to change the technical data without prior notice, in relation to product development...
- Page 8 GI.BI.DI. S.r.l. Via Abetone Brennero, 177/B 46025 Poggio Rusco (MN) - ITALY Tel. +39.0386.52.20.11 Fax +39.0386.52.20.31 E-mail: info@gibidi.com Numero Verde: 800.290156 w w w . g i b i d i . c o m...
