Radiocrafts
Embedded Wireless Solutions

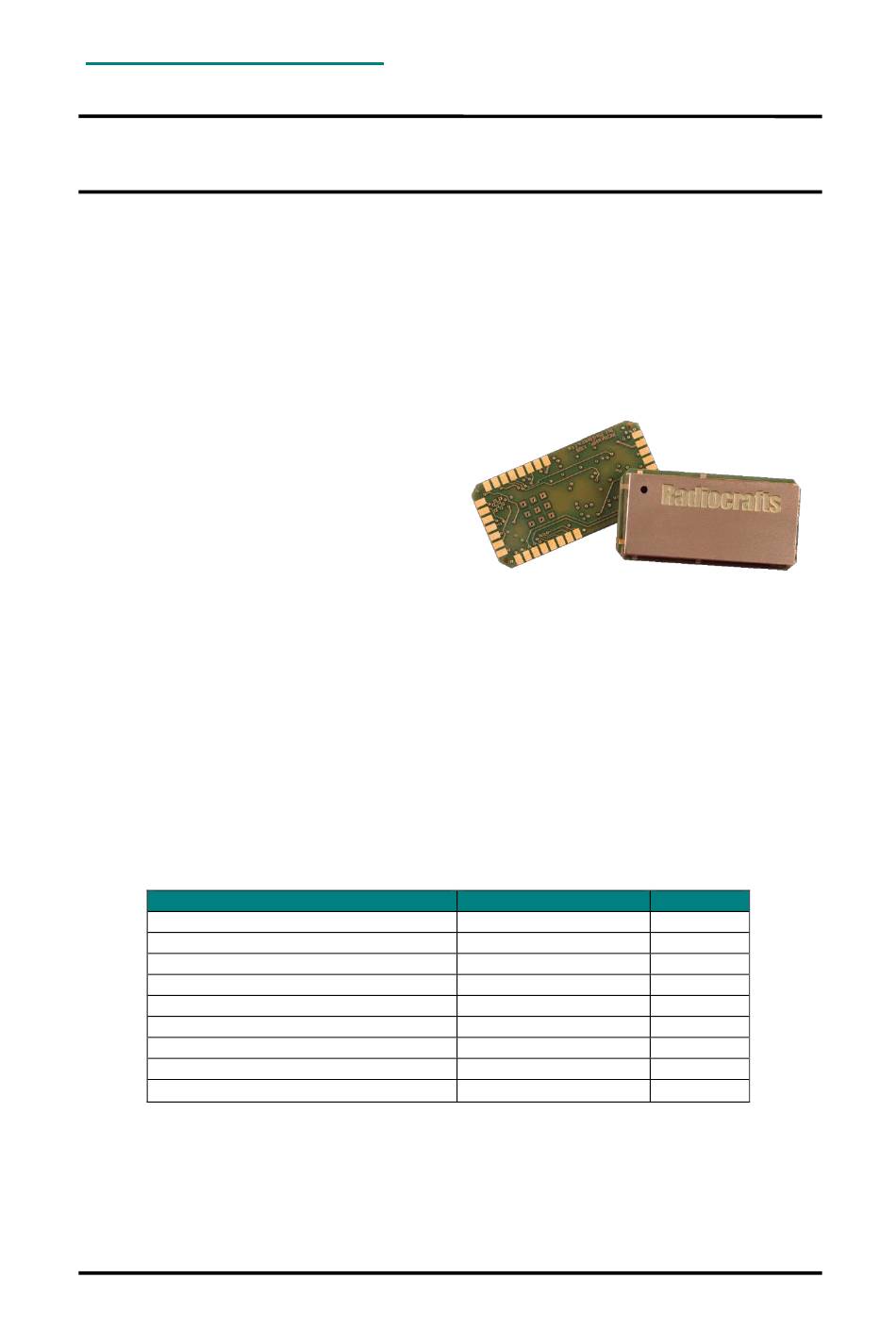

KNX-RF Multi Transceiver Module
Product Description

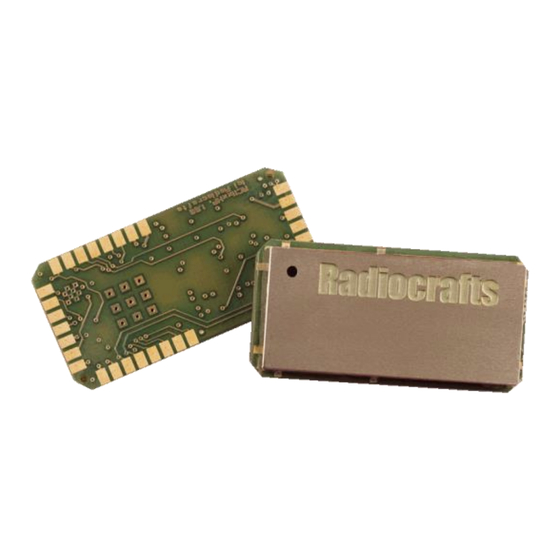

The RC1180-KNX2 RF Transceiver Module is a compact surface-mounted high performance
module with embedded Wireless M-Bus protocol. The module has a UART interface for serial
communication and configuration, and a one-pin antenna connection. The module is pre-
certified for operation under the European radio regulations for license-free use and
measures only 12.7 x 25.4 x 3.3 mm with shielding. When used with quarter-wave antennas a
line-of-sight range of 500-600 meter can be achieved. The RC1180-KNX2 meets the KNX-RF
specification 5 channels in the 868 MHz frequency band.
Applications
•
KNX-RF
•
Automatic Meter Reading (AMR)
•
Advanced Metering Infrastructure (AMI)
•
Electricity meters
•
Gas and Water meters
•
Heat meters, Heat cost allocators
•
Readers and concentrators
Features
•
Embedded KNX-RF Multi protocol
•
12.7 x 25.4 x 3.7 mm compact module for SMD mounting
•
Easy to use UART interface for communication and configuration
•
Wide supply voltage range, 2.0 – 3.9 V
•
Ultra low power modes for extended battery lifetime
•
5 channels (868.3, 868.95 MHz)
•
No external components except antenna
•
Configurable Manufacturer ID and serial number
•
Conforms with EU RED directive (EN 300 220, EN 301 489, EN 60950)
•
Designed for EX compliance
Quick Reference Data
Parameter
Frequency bands
Number of channels
Data rate
Max output power
Sensitivity, S
Supply voltage
Current consumption, RX / TX
Current consumption, SLEEP
Temperature range (S and T mode)
RC1180-KNX2 Embedded Firmware Solutions
The RC1180-KNX2 module is available with different embedded firmware solutions,
implementing specific feature sets on the same hardware. Detailed information on how to use
©2018 Radiocrafts AS
RC1180-KNX2
RC1180-KNX2
868.0 – 870.0
16.384, 32.768
RC1180-KNX2 Data Sheet (rev. 1.01)
Unit
MHz
5
kchip/s
9
dBm
-101
dBm
2.0 – 3.9
Volt
24 / 37
mA
Typ 0.3
uA
C
-40 to +85
Page 1 of 15
Advertisement
Table of Contents
Related Manuals for Radiocrafts RC1180-KNX2
Summary of Contents for Radiocrafts RC1180-KNX2
- Page 1 European radio regulations for license-free use and measures only 12.7 x 25.4 x 3.3 mm with shielding. When used with quarter-wave antennas a line-of-sight range of 500-600 meter can be achieved. The RC1180-KNX2 meets the KNX-RF specification 5 channels in the 868 MHz frequency band.
- Page 2 KNX-RF Multi Modem The standard RC1180-KNX2 module acts like a KNX-RF Multi modem with a UART interface. The embedded protocol transmits and receives the KNX-RF data packets based on application messages from an external source (the meter or the concentrator). The module is configured through its UART interface using a simple command set.
- Page 3 Factory setting: 1: 868.030 MHz (apply for R mode only) For more details on changing the RF channel, output power or KNX2 mode, refer to the KNX2 User Manual. ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 3 of 15...
- Page 4 PCB layout to be able to receive updated firmware code from Radiocrafts in a pilot product phase. One-Button Installation (optional custom specific version) Please contact Radiocrafts for custom specific requests. ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01)
- Page 5 RF transceiver and can therefore operate over a wide supply voltage range. The module can be set in Sleep mode by UART commands to reduce the power consumption to a minimum. ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 5 of 15...
- Page 6 Use external max 8k2 kohm pull- up resistor if connected to an Output: open collector output from a host MCU or other high impedance circuitry like level shifters. System ground System ground ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 6 of 15...
- Page 7 Note 2: The CONFIG pin can be used to enter configuration mode (change of default settings) as an alternative to the 0x00 command. Active low. Note 3: Other digital interfaces may be specified upon request. ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 7 of 15...
- Page 8 RS232 and RS485. To increase spectrum margin it is important to add an EMI filter bead on the VCC pin of the RC1180-MBUS module. Alternatively the RC1180-KNX2 may be powered form a separate voltage regulator. This will ensure that potential switching noise is filtered out from the power supply to the RC1180-MBUS.
- Page 9 Radiocrafts. A Declaration of Conformity is available from Radiocrafts on request. The relevant regulations are subject to change. Radiocrafts AS do not take responsibility for the validity and accuracy of the understanding of the regulations referred above. Radiocrafts only guarantee that this product meets the specifications in this document.
- Page 10 It is recommended that vias are tented. Reserved pins should be soldered to the pads but the pads must be left floating. Note that Radiocrafts technical support team is available for schematic and layout review of your design.
- Page 11 The peak temperature should be adjusted so that it is within the window specified in the standard for the actual motherboard. Aperture for paste stencil is normally area-reduced by 20-35%, please consult your production facility for best experience aperture reduction. ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 11 of 15...
-
Page 12: Electrical Specifications
Spurious emission, TX < 1 GHz > 1 GHz Sensitivity Measured at BER 10(-3) -100 -102 Adjacent channel rejection Alternate channel selectivity Image channel rejection Blocking / Interferer rejection / ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 12 of 15... -
Page 13: Reset Pin
70 % UART Baud Rate tolerance +/- 2 UART receiver and transmitter Configuration memory write 1000 The guaranteed number of write cycles using the ‘M’ cycles command is limited ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 13 of 15... -
Page 14: Product Status
Obsolete Not in Production This data sheet contains specifications on a product that has been discontinued by Radiocrafts. The data sheet is printed for reference information only. ©2018 Radiocrafts AS RC1180-KNX2 Data Sheet (rev. 1.01) Page 14 of 15... -
Page 15: Life Support Policy
Radiocrafts AS customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Radiocrafts AS for any damages resulting from any improper use or sale.
