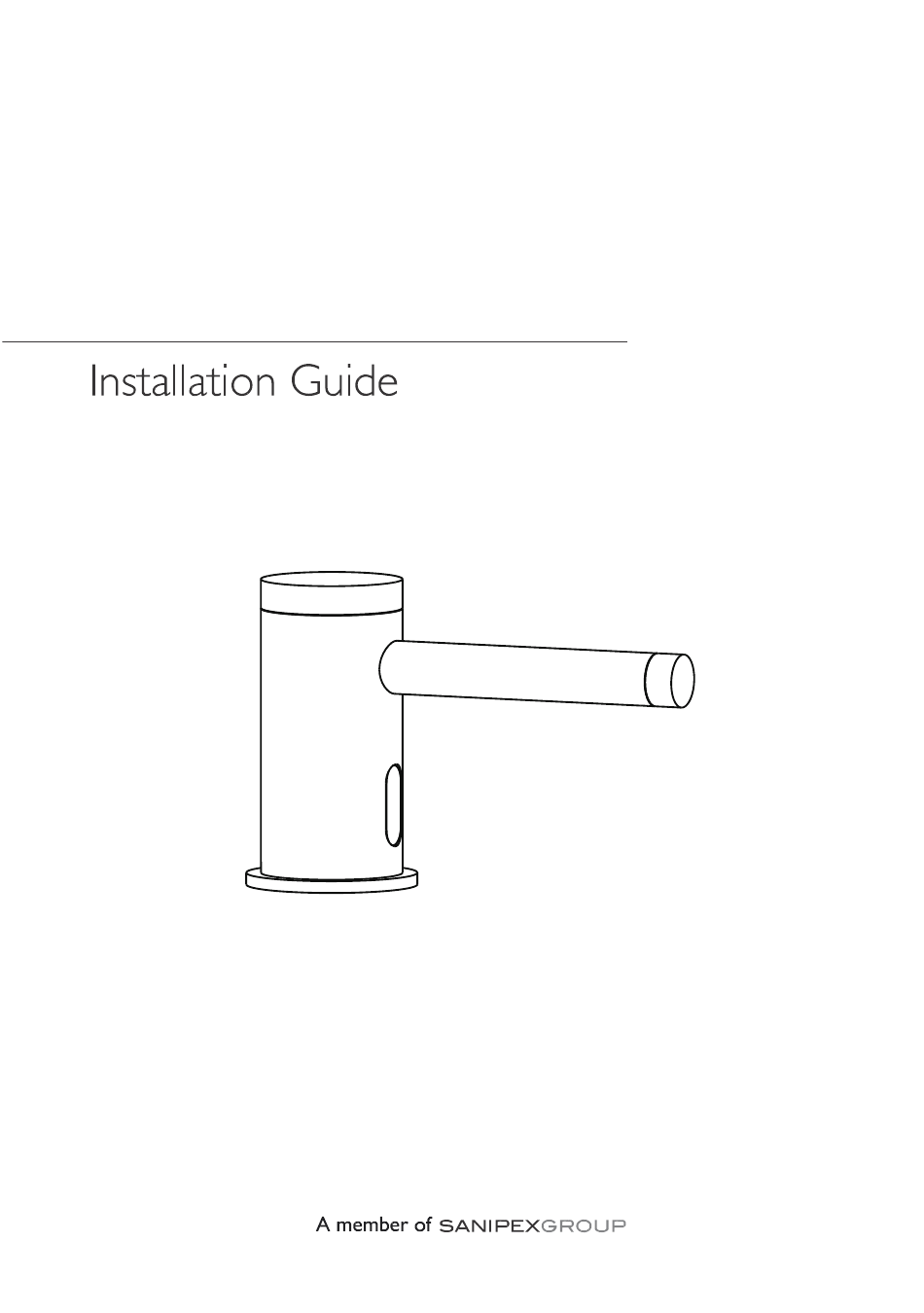

- Page 1 AQUAECO WASHROOM AND PLUMBING SOLUTIONS AQE-ECO-254-XX AQUAECO DECK MOUNTED TOUCHLESS TOP FILL SOAP DISPENSER www.sanipexgroup.com...
- Page 2 1.Read these instructions carefully to ensure proper installation. 2.Do not use corrosive detergents to clean this product. 3.Do not use viscous liquid soap, otherwise the foaming effect will be affected and easily block the liquid soap tube. 4.Do not use untreated sewage or water with many impurities. 5.Suitable soap PH: 5-9 6.Suitable soap viscosity:100-3500cps AC100-240V...
-
Page 3: Power Adapter
Fixation plate Button Control Faucet until body Liquid Draft tube tube Liquid tube joint Black water- proof wire M4×25screws Expansive plastics Copper gasket Copper nut Bottle connector Filter Liquid soap bottle Red waterproof plug Power Adapter... - Page 4 b. heck whether the white liquid tube in the anti-backflow device is blocked by viscous soap. If yes, pull out the tube joint and squeeze out the viscous soap of the soap tube. leaning the anti-backflow device Device cap This device is hidden at the bottom of the faucet body. Liquid tube When installing back the device, be careful not to forget to install the rubber ring.
- Page 5 5. ADDING SOAP Use a hex wrench to loosen the screw behind the top cover of the faucet body clockwise, then remove the top cover and add the soap directly as shown below. After adding, load the upper cover and tighten the screw counterclockwise.
- Page 6 Sensor Copper φ35 gasket Bottle joint Adapter Copper Fixation plate Control Anti-backflow unit device Soap bottle (1000ML) Liquid tube Wall Unit:mm 1. nstall the faucet body (a) nsert the faucet body in the central hole of the wash basin. (b)Put the sensor wire,the liquid tube through the copper gasket,then push the copper gasket into the bottom of the wash basin.
- Page 7 -Add liquid soap d) There is something else in the -Remove the thing induction range a) oap viscosity is too high...
- Page 8 AQUAECO WASHROOM AND PLUMBING SOLUTIONS www.sanipexgroup.com IN-AQE-ECO-254-XX-04-24...
