Installation Manual
Intelligent Toilet Suite
Thank you for choosing our product. Please read the instructions carefully before installation and
keep it available for future maintenance or reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELYSIA STO-G5 and is the answer not in the manual?

Questions and answers

Summary of Contents for ARUVO ELYSIA STO-G5

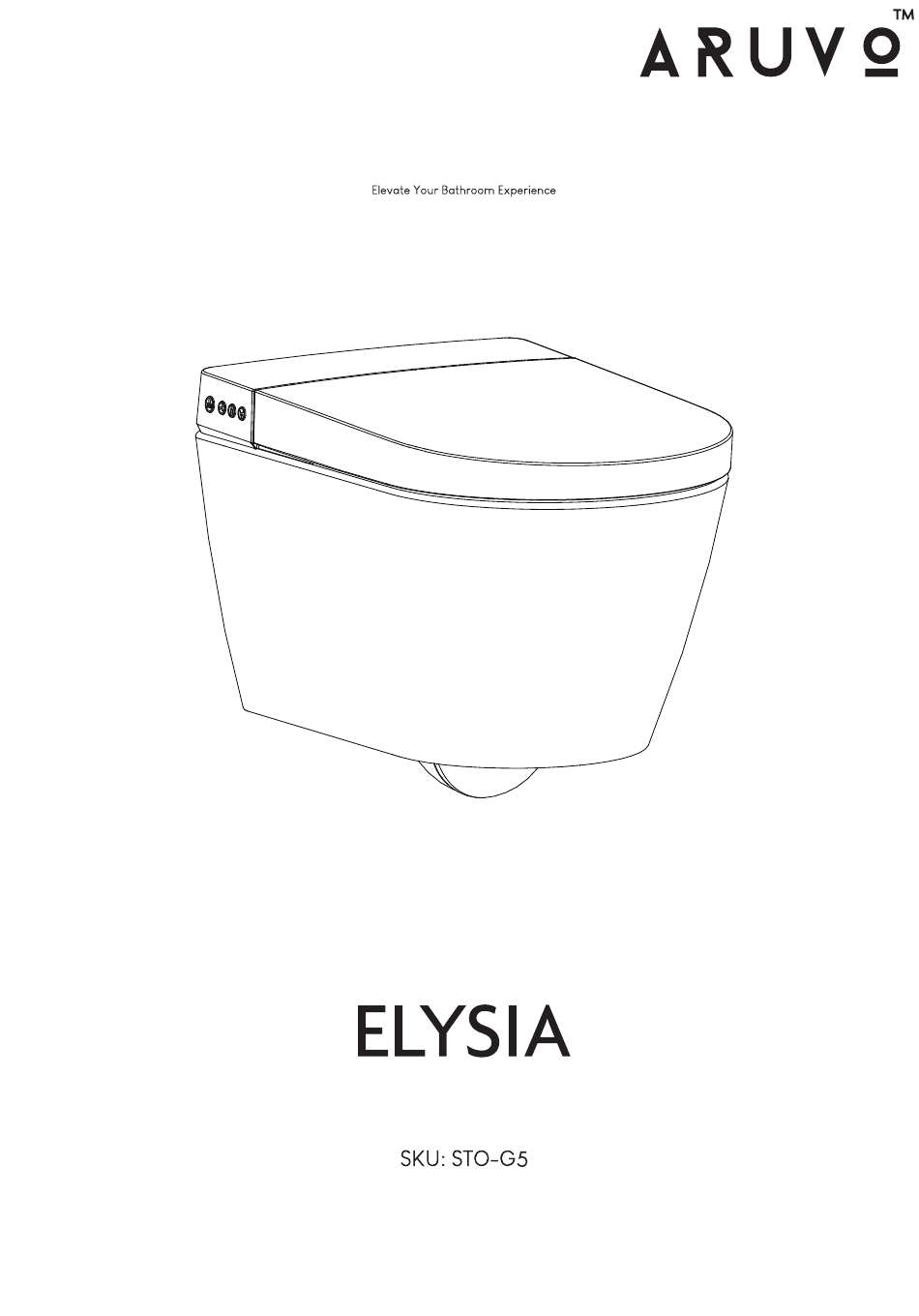

  • Page 1 Installation Manual Intelligent Toilet Suite Thank you for choosing our product. Please read the instructions carefully before installation and keep it available for future maintenance or reference.
  • Page 2: Table Of Contents

    CONTENT Safety instructions List of materials Technical drawings Required accessories for in-wall carrier Installation tools Installation dimensions Pre-installation confirmation Before installation Connector installation Installation procedures IMPORTANT NOTICE FOR NEW ZEALAND ONLY AS/NZS 3500.1 Compliance This product is supplied with a low hazard backflow protection device (Double Check Valve) that complies with AS/NZS 2845.1.
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Failure to follow the instructions may cause bodily injury or property CAUTION – damage. Do not install or use the product in wet places such as a steam room etc. It is recommended to use water-proof electrical outlet which should be installed in a place where is not easily to get wet.
  • Page 5: List Of Materials

    List of Materials Main Unit Remote Control Components Installation Manual Velcro Decorative Cap Transition Piece Locking Nut (M12) Flat Washer Hose...
  • Page 6 List of Materials Connector (female) double check valve Angle Valve Dual Check Valve (optional)
  • Page 7: Technical Drawings

    Technical Drawings (Unit: mm) Ground floor Ground floor Ground floor...
  • Page 8: Required Accessories For In-Wall Carrier

    Lorem ipsum Required Accessories For In-wall Carrier Extended drain pipe Flush pipe Bolts Silicone sponge (with protective sleeve) Gasket Gasket Installation Tools Drill Caulk gun Marker Tape measure (with 1/4” drill bit) Assorted spanners Wire stripper File Assorted screwdrivers Cutter Teflon tape Level ruler Ruler...
  • Page 9: Pre-Installation Confirmation

    Pre-installation Confirmation (unit: mm) AS/NZS 3500.1 Compliance WARNING: This product is supplied with a low hazard backflow protection device (Double Check Valve) that complies with AS/NZS 2845.1. The device must be installed in accordance with AS/NZS 3500.1. Please note: The installation of this toilet suite must comply with AS/NZS 3500.1. If a high hazard backflow prevention device is not already installed on-site, it will be required (not supplied).
  • Page 10: Before Installation

    Before Installation 1. Minimum static water pressure: 0.08+MPa (8.5+L/min), failure to meet this pressure will not achieve the best flushing effect. Note: Apply the methods below if you don't have water pressure testing device. Open the angle valve to check the water volume. If the water volume after 10 seconds is greater than 1.42L, then it is OK to proceed installation.
  • Page 11: Connector Installation

    Connector Installation DANGER – Risk of electric shock This device can only be used with a properly grounded outlet or fixed connection. 6-8mm Ø A=1-2.5mm Blue wire N Brown wire L Yellowish green wire PE “N” wire “L” wire “PE” wire...
  • Page 12: Installation Procedures

    Installation Procedures Note: The installation of this product shall comply with the requirements of PCA. 1. Unpack and confirm the list of 2. Open cover and seat, then remove materials. screws and washers. 3. Close lid and seat, and then remove the bidet. Be careful not to damage the product.
  • Page 13 Installation Procedures 4. Measure the flush pipe. 5. Cut off the excess pipe L1 + 5mm 6. Measure the drain pipe. 7. Cut off the excess pipe L2+ 3mm...
  • Page 14 Installation Procedures 8. Bevel and deburr the sharp edges. 9. Apply silicone oil on the cutting surface. 10. Install the pad. 11. Remove the protective sleeve on bolts. Apply silicone oil on the in-wall flush pipe and drain pipe orifice.
  • Page 15 Installation Procedures 12. Mount the flush pipe and drain 13. Apply silicone oil on the flush pipe pipe. and drain pipe. 14. Place the toilet against the wall. 15. Pass the water supply hose, off-seat auto flushing cable and power cord through the toilet.
  • Page 16 Installation Procedures 16. Level the toilet. 17. Install the washer and tighten the nut. 18. Cut off the excess pad. 19. Seal gap around toilet with sealant.
  • Page 17 Installation Procedures 20. Tighten the bidet and toilet connectors. The electric bidet is connected to the hose through a double check valve and a ball valve. Pass the off-seat auto flushing cable through the middle of two pipes and connect it to bidet cable. Fix two velcro at the following positions.
  • Page 18: Installation Procedure

    Installation Procedure 22. Wrap velcro on water supply hose and power cord coupler respectively and then stick them to pre-installed velcro on both sides of the toilet, as shown below. Open lid and seat, install screws and decorative caps and then lock tight. Be careful not to fold or bend the hose Velcro hook facing outward 23.
  • Page 19 · The product image may not fully reflect the actual appearance and color due to ongoing improvements. Please refer to the actual product.
