Langfeite C5 User Manual

Hide thumbs Also See for C5:

Advertisement

Quick Links

Download this manual
LANGFEITE C5 User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the C5 and is the answer not in the manual?

Questions and answers

Related Manuals for Langfeite C5

Summary of Contents for Langfeite C5

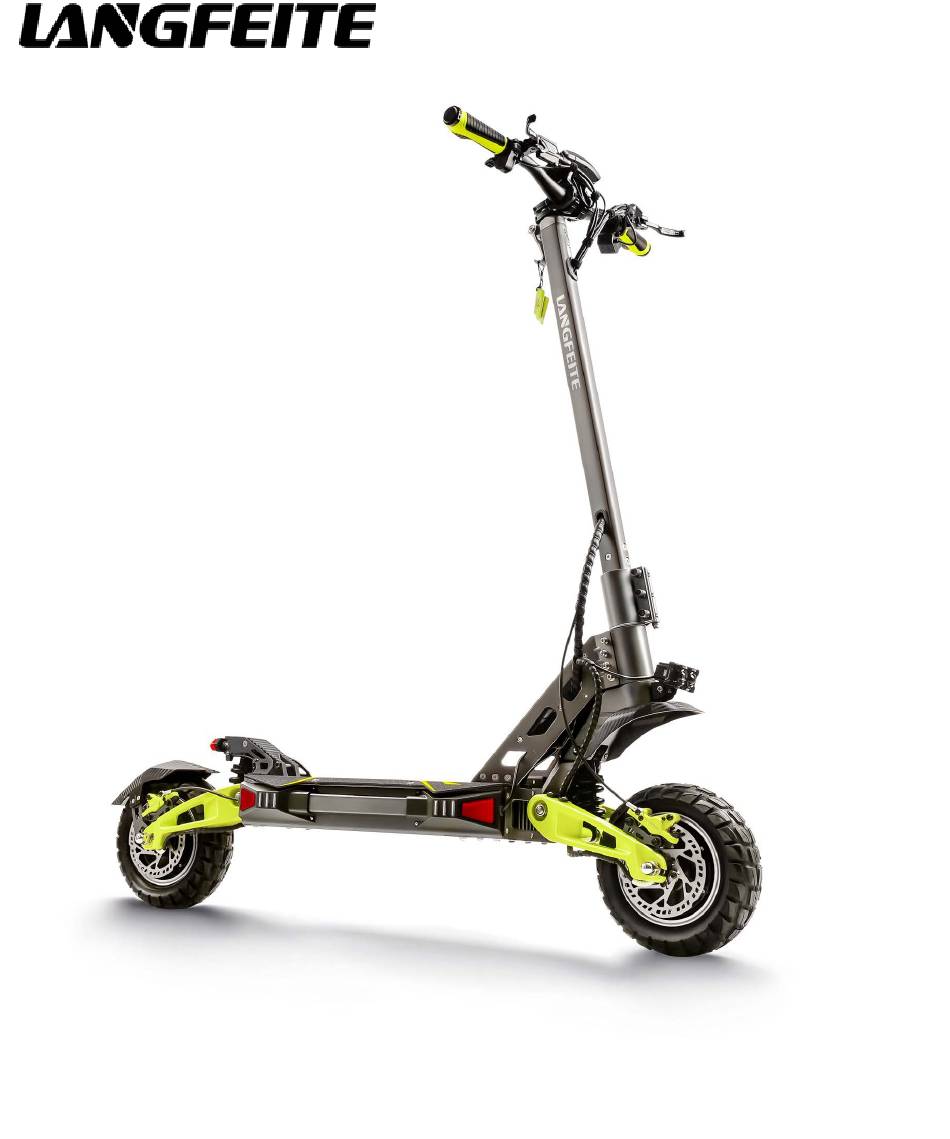

  • Page 1 LANGFEITE C5 User Manual...

  • Page 2: Read Me First

    , see to it that you read this user manual carefully before using it. DO NOT use the Langfeite C5 scooter before learning about its performance. DO NOT lend Langfeite C5 scooter to anyone who cannot operate it , juveniles, pregnant women or the disabled.

  • Page 4: Key Features

    Key features Sport Grip LCD Display Hydraulic Brake Lever NFC lock Rear Light Grip Tape Front Light Front Muguard Shock Absorber Shock Absorber Rear Muguard Tubeless Tyre Tubeless Tyre...
  • Page 5 Dashboard Instruction Grip Mode Button Throttle Display Power ON/OFF Turn Signal Button NFC lock Horn Button Light Button Rear Light Shock Absorber Muguard Hydraulic Brake Signal Light Brake Disc...
  • Page 6 Dashboard Instruction Wheels locked display Bluetooth connection Fault indicator Left turn display Right turn display Speed display Gear display Maximum speed/ Total mileage display/ Average speed Single time range display Battery level display Voltage display MODE button Gear shift Gear shift Power button Turn signal button Head Light Button...

  • Page 7: Display Settings

    Double-click the power button to confirm KM/h or MPH. The default is KM/h. P02: Voltage setting The standard Voltage setting of P02 should be 60 for LANGFEITE C5 E-scooter. P03: Wheel diameter setting At P03, pressing button by turns. The wheel diameter range is "5-50", The standard wheel diameter of P03 should be "10"...
  • Page 8 P05: Cruise and Non-cruise selection settings At P05, pressing button by turns, we can see the number "00" or "01", "00" is Non-cruise, and "1" is Cruise .The default setting is "00". P06: Non-zero start and zero start selection settings At P06, pressing button by turns, we can see the number "00"...
  • Page 9 P10: Soft start and hard start selection settings This P10 setting has been programmed by the controllers. The default setting is "3". Therefore, please don't change this setting. P11: EBS brake strength adjustment This P11 setting has been programmed by the controllers, The default setting is "3".

  • Page 10: Product Specification

    Product Specification Product Name LANGFEITE C5 Electric scooter Battery Capacity 25.2AH Battery Type 21700 Lithium-ion Battery Input voltage (V) 67.2V Rated voltage (V) Approx Range 60 km Foldable Number of charging ports Charging time 6.3 hours by 2 chargers Working temperature...
  • Page 11 Product Specification Grade Ability 40 degrees Motor type DC brushless motor Motor rated power 1100Watt per Motor, Dual motor 2200W Peak output power Peak 1600W for each motor, Dual motor peak output: 3200W Controller 30Amp*2, Sine wave controllers Rated Voltage Charger Rated Power (W) 268W...

  • Page 12: How To Fold

    How to Fold Stem and deck can be fixed with the lock...
  • Page 13 Safe Driving Recommendation...

  • Page 16: Legal Statement

    ● DO NOT open or disassemble the Langfeite C5 battery unit that contains harmful substance. ● The Langfeite C5 scooter that has been fully charged may stand by for 90-120 days, whereas the one thatis undercharged may stand by 30-60 days. Please notice the stand-by time of your scooter incase of unrecoverable damages to the battery unit due to untimely charging.
  • Page 17 Legal Statement ● Check the Langfeite C5 scooter carefully to make sure there isn't any loose part or damage before riding it. ● Watch the crossing carefully before or during you ride your scooter or when you stop it to avoid any unnecessary damages to yourself, or objects, people or small animals around you.

  • Page 18: Charging And Battery

    Do not operate the scooter while charging! Charge the battery only using our approved charger The use, storage or charging of the Langfeite C5 battery outside specified limits may result in the annulment of the warranty, battery damage, and an ineffective...

  • Page 19: Serial Numbers

    Serial Numbers Each LANGFEITE C5 comes with a unique serial number. These numbers provides information on the authenticity of the scooters and production dates. To find your LANGFEITE C5 serial number The number is on the backside of the board, for example as below...
