Summary of Contents for Langfeite L11

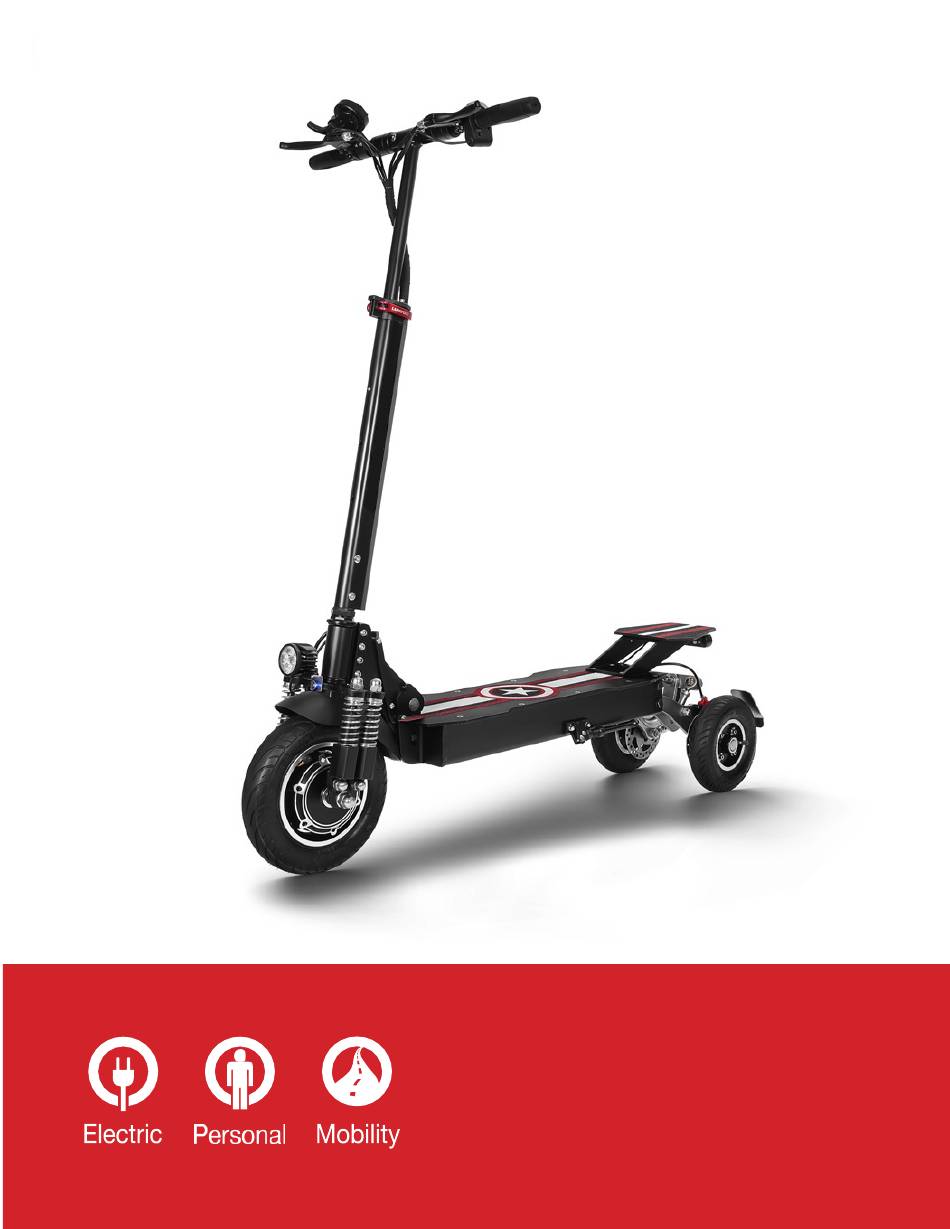

- Page 1 User Manual Model No.: L11...
- Page 2 Congratulations on your new Model L11 three wheels Electric scooter ! We are happy you chose to Ride new L11 three wheels Electric scooter. We hope you find it to be a Great riding experience, Adding efficiency and fun To your daily commuting.
-
Page 3: Warnings & General Information

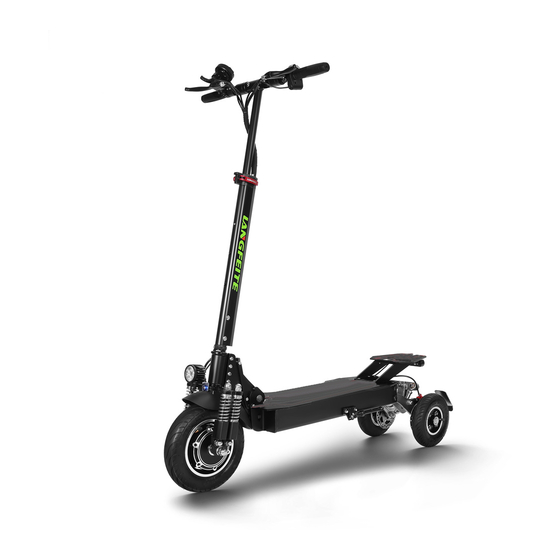

L11 electric scooter; its features and performance, so that you will enjoy the most from your first and every ride. Also, it is important that your first ride with model L11 will be in a remote location, without any obstacles. - Page 4 MODEL L11 FEATURES Display with throttle brake lever brake lever Horn Height Adjustable T-bar Quick release Folding mechanism Rear pedal Rear li ght Front LED light Pedal Rear suspension Front tire Rear fender Front suspension Disc brake Rear tire...
- Page 5 1160MM 1140MM Pull right Pull left Fold the handle-bar Unfold the handle-bar loosen quick release Press quick release...
- Page 6 MODEL L11 MAIN PARTS Kick stand All wheel steering Display Brake lever ON/OFF button Throttle MODE button Front light button Horn...
-
Page 7: Display Instruction
DISPLAY INSTRUCTION ON/OFF button MODE button Battery status THROTTLE POWER ON Pressing to power the scooter on. THROTTLE POWER OFF Press for three seconds to shut down the system. AUTO OFF After five minutes of non-using any function, the scooter will automatically shut down. In power on condition, pressing by turns, we can find TRIP，ODO，VOL on the LCD display... -
Page 8: Parameter Settings
Parameter settings Pressing together with at the same time, will enter the instrument parameter setting interface. First of all we can see P00, then press by turns, we can find P01, P02, P03, P04, P05, P06, P07, P08, P09 P00: Wheel diameter setting P01: Under-voltage setting... -
Page 9: Record Serial Numbers
RECORD SERIAL NUMBERS: Write down the serial number of your model L11. Keep this information separately and in a safe place. Each model L11 has a unique serial number. These numbers can provide information that may be useful later on for insurance claims and in case of loss or theft. - Page 10 HOW TO FOLD THE SCOOTER...
-
Page 11: Charging And Battery
- Charging is complete. Avoid long periods of time with an uncharged or fully charged battery. To maximize your model L11's battery performance, fully charge it for 7 hours, once a month, or after each use of 24 hours. Do not attempt to open the battery. Do not insert anything in the battery and do not attempt to open its case with any tool. - Page 12 SAFETY DRIVING ATTENTION SAFE DRIVING: Practice your first ride on the model L11 in an open space with no obstacles to disturb you so you can get to know your model L11 before driving it. Please wear a safety helmet and some other protective equipment to avoid...
-
Page 13: Specification
Specification 1160*570*1210 mm Overall size (MM) Size Size after folding (MM) 1140*220*470 mm Carton size (MM) 1200*380*570 mm 150kg Max. Loading (KG) Weight Net weight (KG) 28kg Application People Age Adult Top speed (KM/H) 40km/h 10Ah 30Km, 15Ah 45Km, 20Ah 60km Range (KM) Speed ( With 75kg load, on a flat road )
